User manual Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM

Operating instructions and pdf manual for use - Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM User manual, User manual Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM, Marshall, Electronics, V-LCD51, 5, Monitor, V-LCD51-PM,


User manual for Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM

Marshall Electronics V-LCD51 5
  • Manufacturer: Marshall Electronics
  • Basic description and contents of package
  • Product classification: Professional Video - Monitors - On Camera Monitors
  • Safety instructions
  • Startup and operation of the on camera monitors
  • Tips for setting up your Marshall Electronics
  • Settings and expert assistance
  • Contact Marshall Electronics service
  • Troubleshooting
  • Warranty information
  • Price: 429 USD
We recommend checking out our discussion threads on the Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM, which address similar problems with connecting and setting up On Camera Monitors Marshall Electronics.



User manual for the Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM

The user manual for the Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

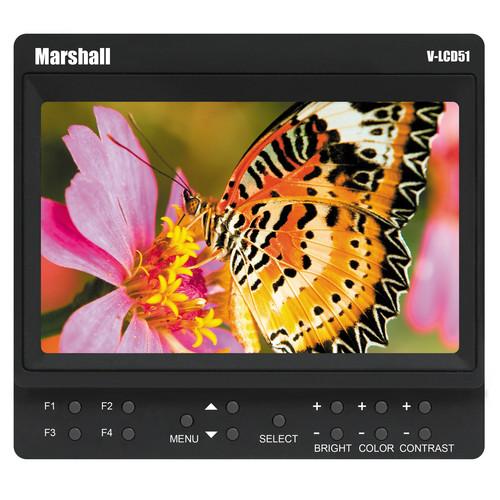

The Marshall Electronics V-LCD51 5" Monitor and CGA-D54 Battery Adapter Kit includes a monitor, a pre-installed battery adapter for an optional Panasonic CGA-D54 battery, a 5" monitor hood, a hot-shoe adapter, and a power supply.

The monitor is an on-camera panel with a full selection of useful features. The features are accessible on a straight-forward on-screen menu and operable by front panel buttons. Four of the buttons can be configured to each control a different feature.

A 1.2 megapixel, active matrix, TFT LCD monitor, the V-LCD51 is LED-backlit and has a resolution of 800 x 480. It features 300 nit brightness and a 600:1 contrast ratio, and it lets you switch between full-screen, 4:3 and 16:9 aspect ratios. When in full-screen mode, the monitor automatically scales incoming images to fit the screen.

The rear panel has an HDMI input for connection to a camera, and the bottom has 1/4"-20 screw-hole for attachment to a camera (via the included hot shoe adapter).
If you own a Marshall Electronics on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Marshall Electronics V-LCD51 5Download user manual for Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM
(PDF file, 0.21 MB)
Additional parameters of the Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM:
Monitor
Input 1x HDMI type A female
Screen Size 5" diagonal (12.7 cm)
Resolution 800 x 480
Viewing Angle L+R: 170°
U+D: 170°
Brightness 300 cd/m²
Contrast Ratio 600:1
Supported Standards HDMI video:
720p (60 / 59.94 / 50 / 30 / 29.97 / 25)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)
Color Temperature Choose one of three color temperature presets:
5500K
6500K
9300K
Power Consumption 1.25 Amp @ 5VDC
Dimensions 4.86 x 4.4 x 1.84" (12.3 x 11.17 x 4.67 cm)
Weight .55 lbs (250 g)
Packaging Info
Package Weight 2.2 lb
Box Dimensions (LxWxH) 13.0 x 9.0 x 3.0"
The user manual for the Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Marshall Electronics users keep a unique electronic library for Marshall Electronics on camera monitorss, where you can use our link to download the user manual for the Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM.

The user manual lists all of the functions of the Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Marshall Electronics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Marshall Electronics V-LCD51 5" Monitor and V-LCD51-PM. User manuals are also available on the Marshall Electronics website under Professional Video - Monitors - On Camera Monitors.
