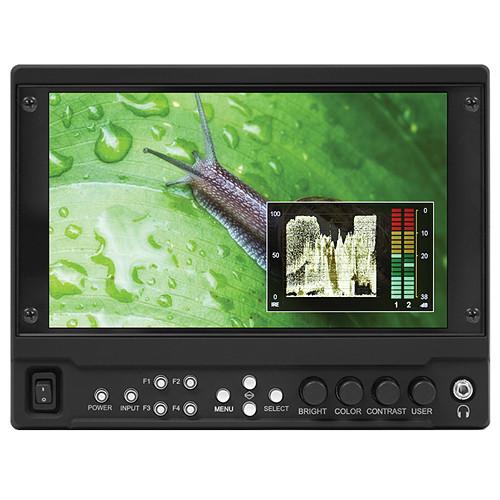

The Marshall Electronics V-LCD70MD 7" On-Camera Monitor with HDMI and Modular SDI Upgrade Option is a top-quality camera monitor with superior internal components and an advanced set of focus, exposure, and sound-assist tools. The display is a high-resolution, high-contrast, high-brightness display and is polycarbonate-coated for scratch resistant protection. It's LED backlit for additional brightness and it is equipped with IPS technology allowing an enhanced viewing angle from farther and farther away. The operating system is icon-driven.
Connections consist of a native HDMI input and output, and 3G-SDI inputs and outputs can optionally be installed by screw-on modules. The HDMI input gives you 8 channels of de-embedded audio to pick up and monitor. You can monitor the audio on-screen on a dual-bar Waveform display or/and with headphones via the monitor's headphone output. With headphones, you can monitor any pair from the available channels.
For mounting, a 1/4"-20 screw-hole is available on every side of the monitor. And for power, a power supply comes included and additionally any of a very long list of batteries can optionally be attached. (Please see the Specifications tab for the full list. Battery adapters are sold separately.)
|
If you own a Marshall Electronics on camera monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Marshall Electronics V-LCD70MD 7" On-Camera V-LCD70MD in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Marshall Electronics V-LCD70MD 7" On-Camera V-LCD70MD:
| Screen Size | 7" diagonal (17.8 cm) | | Aspect Ratio | 15:9 | | Pixel Pitch | .15 x .15 mm | | Resolution | 1024 x 600 | | Viewing Angle | L+R: 170° / U+D: 170° | | Display Technology | High-brightness LED backlit panel | | Brightness | 800 nit | | Contrast Ratio | 1000:1 | | Response Time | 45 ms | | Connections | 1x HDMI input (HDCP compliant)
1x HDMI pass-through output (HDCP compliant)
1x 3.5 mm headphone output
1x mini-USB | | Mount Type | 4 x 1/4"-20 | | Battery Compatibility | Canon BP-970G, 7200 mAh, 7.2V
JVC BN-V438U, 3800 mAh, 7.2V
Panasonic CGA-D54, 5400 mAh, 7.2V
Panasonic VW-VBG6, 5400 mAh, 7.2V
Sony BP-U60, 5600 mAh, 14.4V
Sony NP-QM91, 4200 mAh, 7.2V
Sony NP-F970, 6600 mAh, 7.2V
IDX V-Mount E-7S, 6800 mAh, 14.4V
Battery adapters are sold separately | | Power Consumption | 9.6 watts (0.8 A @ 12 V) | | Input Voltage Range | 7-20 VDC | | Dimensions | 7.37 x 5.57 x 1.1" (18.7 x 14.1 x 2.8 cm) | | Weight | 1.2 lbs (.54 kg) | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 13.6 x 7.6 x 6.2" | |
