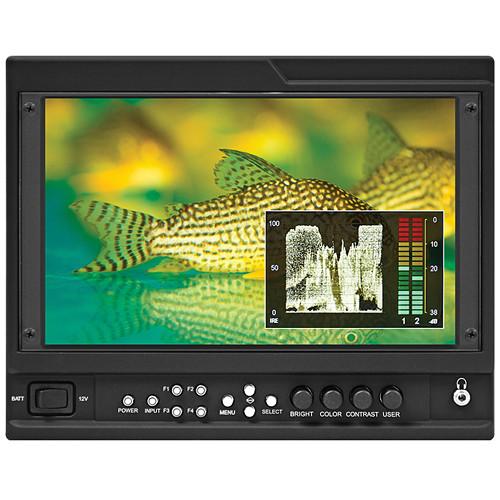

The Marshall Electronics V-LCD90MD 9" High Resolution HDMI Camera Monitor is a very neatly-designed camera monitor with a polycarbonate-coated 1280 x 768 high-resolution, high-contrast display, with highly-sophisticated focus and exposure-assist features, with a simple-to-operate icon-driven operating system, and with all the right the buttons well-organized on the bottom portion of the front panel.
The monitor is white-LED backlit for added brightness and is equipped with IPS technology allowing a superior viewing angle from farther and farther away. HDMI input and output/pass through connections are on the back panel, with the input giving you 8 channels of de-embedded stereo audio. You can monitor the audio on-screen on a dual-bar Waveform display or/and with headphones by a headphone output located right at the front among all the buttons. Also -- this monitor is modular and can optionally be upgraded with 3G-SDI input and output configurations attached onto the back near the rest of the connections.
For mounting, a 1/4"-20 screw-hole is available on every side of the monitor. And for power, a power supply comes included and additionally any of a very long list of batteries can optionally be attached. (Please see the Specifications tab for the full list. Battery adapters are sold separately.)
|
If you own a Marshall Electronics on camera monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Marshall Electronics V-LCD90MD 9" High Resolution V-LCD90MD in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Marshall Electronics V-LCD90MD 9" High Resolution V-LCD90MD:
| Screen Size | 9" diagonal (23 cm) | | Aspect Ratio | 16:9 | | Pixel Pitch | .15 x .15 mm | | Resolution | 1280 x 768 | | Viewing Angle | L+R: 176° / U+D: 176° | | Display Technology | High brightness IPS white LED backlit panel | | Brightness | 600 nit | | Contrast Ratio | 1000:1 | | Response Time | 22 ms | | Connections | 1x HDMI input (HDCP compliant)
1x HDMI pass-through output (HDCP compliant)
1x 3.5 mm headphone output
1x micro-USB | | Mount Type | 4 x 1/4"-20 | | Battery Compatibility | Canon BP-970G, 7200 mAh, 7.2V
JVC BN-V438U, 3800 mAh, 7.2V
Panasonic CGA-D54, 5400 mAh, 7.2V
Panasonic VW-VBG6, 5400 mAh, 7.2V
Sony BP-U60, 5600 mAh, 14.4V
Sony NP-QM91, 4200 mAh, 7.2V
Sony NP-F970, 6600 mAh, 7.2V
Anton-Bauer Hytron-50, 5000 mAh, 14.4V
IDX V-Mount E-7S, 6800 mAh, 14.4V
Battery adapters are sold separately | | Power Consumption | 14.4 watts (1.2 A @ 12 V) | | Input Voltage Range | 7-20 VDC | | Dimensions | 9.3 x 7.27 x 1.41" (23.6 x 18.5 x 3.6 cm) | | Weight | 2.3 lbs (1 kg) | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 13.5 x 7.9 x 6.5" | |
