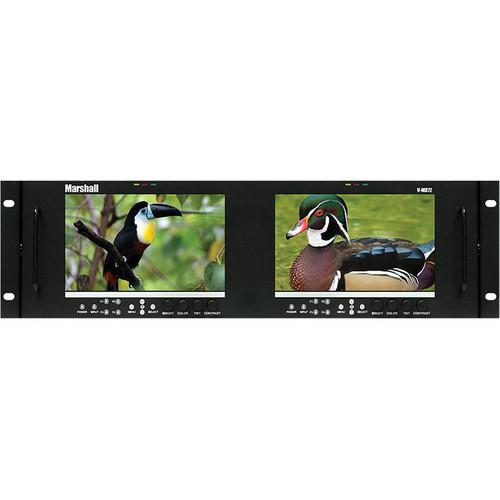

The Marshall Electronics V-MD72-3GSDI Dual High Resolution LCD Monitor (7") comes with 2 MD-3GSDI-A modules and two 800 x 480 LED-backlit LCDs in a single configuration, thereby offering a flexible modular solution to system integration. Designed for 3G capabilities, it includes 3G-SDI (serial digital interface) inputs with loop through. The LCD monitor offers a brightness rating up to 450 cd/m², and wide viewing angles allow you to view the images clearly even from room corners or when the display is mounted at a height. In addition to an aspect ratio of 16:10, the LCD monitor can automatically adapt to the input resolution of the incoming video signals.

With a pixel pitch of 0.1905 x 0.1905, the V-MD72-3GSDI LCD Monitor produces sharper images by displaying the finer elements of a picture. The featured freeze function allows you bring the image to a standstill. Equipped with RGB bias and gain function, the LCD monitor allows for fine tuning of color balance levels and facilitates color matching with other types of monitors. The false color filter function allows you to set the correct camera exposure levels. Equipped with the network function, the LCD monitor can be controlled over LAN. In addition, the network function allows you to access any function on the front panel of the monitor via any web browser.

Incorporating pixel-to-pixel mode, the V-MD72-3GSDI Dual High Resolution LCD Monitor displays images in its native resolution by avoiding the internal scaling function. The Blue only feature switches off red and green scan guns to produce images made only from a blue scan gun. You can use the marker settings to control all on-screen markers, including the center marker, full screen markers, 16:9 markers, and 4:3 markers.

In-monitor display enables on-screen text and tally indication, which can be controlled locally or remotely via support for protocols. With Text enable function, you can switch on the IMD text feature and view 16-character text string on the lower part of the screen. In addition, you can also manage the background, color, and text alignment. The tally source can also be controlled with the text enable function. In addition, the tally lights can be switched on/off and set to match text string color.

The V-MD72-3GSDI Dual High Resolution LCD Monitor incorporates user-programmable buttons to assign various functions such as false colors, freeze input, aspect markers, center marker, marker enable, and pixel-to-pixel as required.
If you own a Marshall Electronics production monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Marshall Electronics V-MD72-3GSDI Dual High V-MD72-3GSDI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Marshall Electronics V-MD72-3GSDI Dual High V-MD72-3GSDIDownload user manual for Marshall Electronics V-MD72-3GSDI Dual High V-MD72-3GSDI
(PDF file, 0.82 MB)
Additional parameters of the Marshall Electronics V-MD72-3GSDI Dual High V-MD72-3GSDI:
Display 7" x 2
Resolution 800 x 480
Aspect Ratio 16:10
Pixel Pitch 0.1905mm x 0.1905mm
Brightness 450cd/m²
Inputs 3G-SDI
Dimensions 18.9 x 5.2 x 1.2" (480 x 132 x 30 mm)
Weight 5lb (2.2kg)
Power Consumption 3 Amp @ 12VDC
Packaging Info
Package Weight 7.85 lb
Box Dimensions (LxWxH) 24.3 x 9.0 x 8.5"
The user manual for the Marshall Electronics V-MD72-3GSDI Dual High V-MD72-3GSDI can be downloaded in .pdf format if it did not come with your new production monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Marshall Electronics users keep a unique electronic library for Marshall Electronics production monitorss, where you can use our link to download the user manual for the Marshall Electronics V-MD72-3GSDI Dual High V-MD72-3GSDI.

The user manual lists all of the functions of the Marshall Electronics V-MD72-3GSDI Dual High V-MD72-3GSDI, all the basic and advanced features and tells you how to use the production monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Marshall Electronics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Marshall Electronics V-MD72-3GSDI Dual High V-MD72-3GSDI. User manuals are also available on the Marshall Electronics website under Professional Video - Monitors - Production Monitors.
