User manual for the Meridian Technologies SR-1RG-0 Digitally Encoded SR-1RG-0
The user manual for the Meridian Technologies SR-1RG-0 Digitally Encoded SR-1RG-0 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.

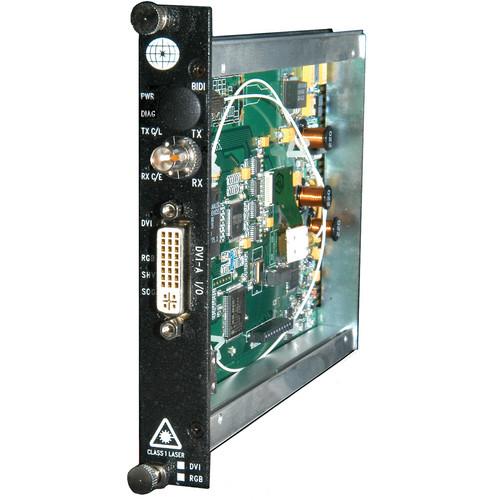

The Meridian Technologies SR-1RG-0 is a Digitally Encoded DVI/RGB Fiber System Receiver. The card is designed to receive DVI/RGB video signals, including 2-channel 24-bit audio, over fiber optic cable. Through the use of fiber optics, video signals can traverse large distances. The SR-1RG-0 facilitates this through the use of Meridian's line of fiber optics transmission systems.
Because it transmits signals in real-time, no video information is lost and is a perfect solution for dynamic video signals with crystal clear video and no color pixel skewing. Applications include courtrooms, medical and MRI displays, air traffic control, military information displays, stock exchanges, live event video displays, and video walls.
If you own a Meridian Technologies dvi/vga kvm extenders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Meridian Technologies SR-1RG-0 Digitally Encoded SR-1RG-0 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Meridian Technologies SR-1RG-0 Digitally Encoded SR-1RG-0:
| Channels || 1-Channel Video |
2-Channel 24-bit Audio
| Resolution || Computer |
(640 x 480) to (1600 x 1200)
480p, 720p, 1080i
| Range || Fiber |
50um: 3281' (1km)
62um: 1640' (500 m)
| Inputs/Outputs || DVI: DVI-I |
RGB: 15-Pin D-Sub
Audio: Screw Terminals
USB: USB 2.0 Type-B
| LED Indicators || Power: Green |
Diagnostic: Green (OK), Red (Alarm)
Tx carrier: Green (OK), Red (Alarm)
Rx carrier: Green (OK), Red (Alarm)
DVI Active: Green
RGB Active: Green
SHV (Sync H&V): Green
SOG (Sync on Green): Green
USB Active: Green (Rx-Data), Red (Tx-Data)
Audio Present: Green (2)
Audio Overload: Red (2)
| Fiber Connector || Multimode |
| Storage Temperature || -67-185°F (-55-85°C) |
| Operating Temperature || -14-122°F (-10-50°C) |
| Power Requirements || Not Specified By Manufacturer |
| Power Consumption || 7W |
| Dimensions (WxHxD) || 1.6 x 5 x 6.3" (4 x 12.7 x 16cm) |
| Weight || 2 lbs (0.9kg) |
| Package Weight || 1.5 lb |
| Box Dimensions (LxWxH) || 10.0 x 7.0 x 3.0" |
The user manual for the Meridian Technologies SR-1RG-0 Digitally Encoded SR-1RG-0 can be downloaded in .pdf
format if it did not come with your new dvi/vga kvm extenders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Meridian Technologies users keep a unique electronic library
for Meridian Technologies dvi/vga kvm extenderss,
where you can use our link to download the user manual for the Meridian Technologies SR-1RG-0 Digitally Encoded SR-1RG-0.
The user manual lists all of the functions of the Meridian Technologies SR-1RG-0 Digitally Encoded SR-1RG-0,
all the basic and advanced features and tells you how to use the dvi/vga kvm extenders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Meridian Technologies service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Meridian Technologies SR-1RG-0 Digitally Encoded SR-1RG-0. User manuals are also
available on the Meridian Technologies website under Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.
