User manual for the Metz mecablitz 64 AF-1 digital Flash for Sony/Minolta MZ 64316S
The user manual for the Metz mecablitz 64 AF-1 digital Flash for Sony/Minolta MZ 64316S provides
necessary instructions for the proper use of the product Photography - Flashes & On Camera Lighting - On Camera Flashes.

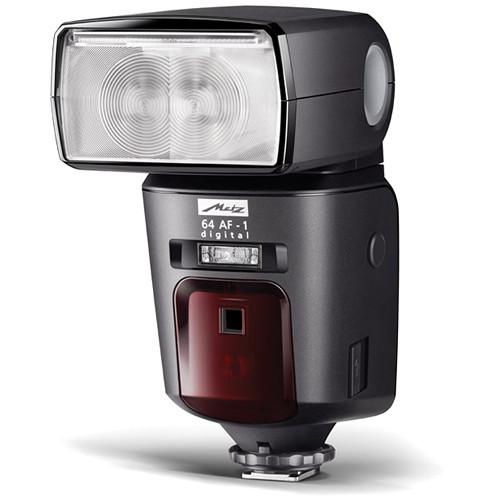

The Metz mecablitz 64 AF-1 digital Flash is a powerful unit with a guide number of 210' at ISO 100 and 200mm that works with Sony/Minolta ADI / P-TTL. This model is also equipped with the Multi-Interface Shoe for compatibility. The unit features an automatic zoom with a range between 24-200mm and comes with a built-in wide-angle diffuser that extends its reach to 12mm. The 64 AF-1 also has a secondary light reflector with two output levels for achieving even lighting as well as wireless functionality as either a master or slave unit with ratio control options
The flash head can tilt from -9 to +90° and rotated 300° for use in a variety of situations and features a modeling light for previewing the look of shadows before taking a shot. There is also a color LCD touchscreen on the rear of the flash that allows you to quickly see and change settings. Multiple flash modes are available, included strobe and server with a learning function. High-speed, first, and second curtain synchronization is possible and the device has sync, power, and USB ports built-in. It also comes with a carrying bag and stand.
|
If you own a Metz on camera flashes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Metz mecablitz 64 AF-1 digital Flash for Sony/Minolta MZ 64316S in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Metz mecablitz 64 AF-1 digital Flash for Sony/Minolta MZ 64316S:
| Mount | Shoe | | Guide No. | 209.97' (64 m) ISO100 at 200 mm position | | Vari-Power | 1/1 - 1/256 | | Bounce Head | -9° to +90° | | Swivel Head | 300° | | Coverage | 12 mm - 200 mm (Full frame) | | Zoom Head | Full frame: 24 mm - 200 mm | | Off Camera Terminal | PC | | Recycle Time | Approximately 0.1 - 4.4 seconds | | Flash Duration | 1/180 - 1/18000 sec | | Flash-ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (WxHxD) | 3.1 x 5.8 x 4.4" / 7.9 x 14.7 x 11.2 cm | | Weight | 1.97 lb / 895 g | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.2 x 6.1 x 4.1" | |
The user manual for the Metz mecablitz 64 AF-1 digital Flash for Sony/Minolta MZ 64316S can be downloaded in .pdf
format if it did not come with your new on camera flashes, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Metz users keep a unique electronic library
for Metz on camera flashess,
where you can use our link to download the user manual for the Metz mecablitz 64 AF-1 digital Flash for Sony/Minolta MZ 64316S.
The user manual lists all of the functions of the Metz mecablitz 64 AF-1 digital Flash for Sony/Minolta MZ 64316S,
all the basic and advanced features and tells you how to use the on camera flashes.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Metz service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Metz mecablitz 64 AF-1 digital Flash for Sony/Minolta MZ 64316S. User manuals are also
available on the Metz website under Photography - Flashes & On Camera Lighting - On Camera Flashes.
