User manual Midas M32R 40-Input Digital Mixing Console M32-R

Operating instructions and pdf manual for use - Midas M32R 40-Input Digital Mixing Console M32-R User manual, User manual Midas M32R 40-Input Digital Mixing Console M32-R, Midas, M32R, 40-Input, Digital, Mixing, Console, M32-R, Video

User manual for Midas M32R 40-Input Digital Mixing Console M32-R

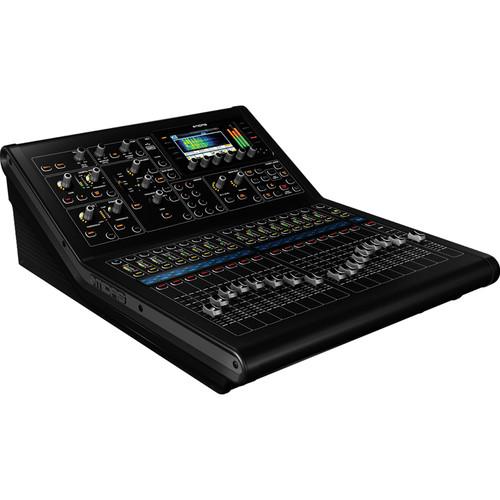

Midas M32R 40-Input Digital Mixing Console M32-R
  • Manufacturer: Midas
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Digital Mixers
  • Safety instructions
  • Startup and operation of the digital mixers
  • Tips for setting up your Midas
  • Settings and expert assistance
  • Contact Midas service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Midas M32R 40-Input Digital Mixing Console M32-R, which address similar problems with connecting and setting up Digital Mixers Midas.


User manual for the Midas M32R 40-Input Digital Mixing Console M32-R

The user manual for the Midas M32R 40-Input Digital Mixing Console M32-R provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

The Midas M32R is a digital mixing console that features 16 Midas PRO microphone preamplifiers, 25 time-aligned and phase-coherent mix buses, 8 digital FX engines, and up to 40 simultaneous input channels when used with an optional networked remote I/O solution such as the Midas DL16 digital stage box. This console is an ideal choice for a multitude of live sound, broadcast, studio recording and post production applications.

The M32R console features 17 Midas PRO motorized 100 mm faders that are rated for 1 million life cycles. Currently able to capture audio at 24-bit, 48 kHz sample resolution, the console is "future-proofed" with 96 kHz capable open architecture, which Midas intends to make available for the line.

The M32R includes an extensive array of on-board effects, featuring 8 stereo, studio-grade effects engines, each assignable to any input, group or output mix bus. Choose from high-end FX modules, including a range of reverbs, delays, EQs, dynamics, and much more. Modeled after some of history's most iconic and sought-after effects processors such as the Teletronix LA-2A, Urei 1176LN, Fairchild 670, and the Pultec EQP-1a, the M32R's effects run inside the low-latency, 40-bit floating point environment of the mix engine.
If you own a Midas digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Midas M32R 40-Input Digital Mixing Console M32-R in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Midas M32R 40-Input Digital Mixing Console M32-R:
Specifications
    Processing
    Input Channels 32 input channels, 8 aux channels, 8 FX return channels
    Output Channels 8 / 16
    Buses 16 aux buses, 6 matrices, main LRC: 100
    Effects Engine 8 / 16, (True Stereo / Mono)
    Automation Internal Show Automation (Structured Cues / Snippets): 500 / 100
    Scenes Internal Total Recall Scenes (Incl. Preamplifiers and Faders): 100
    Signal Processing 40-bit floating point
    A/D and D/A Conversion A/D Conversion (8-channel, 96 kHz Ready): 24-bit, 114 dB dynamic range, A-weighted
    D/A Conversion (stereo, 96 kHz Ready): 24-bit, 120 dB dynamic range, A-weighted
    Latency 0.8 ms, (I/O, console input to output)
    1.1 ms, (network latency, stage box in > console > stage box out)
    Connectors
    Preamplifier Midas PRO Series Microphone Preamplifiers (XLR): 16
    Talkback Talkback Microphone Input (XLR): 1
    RCA RCA Inputs / Outputs: 2 / 2
    Audio Out (XLR) XLR Outputs: 8
    Monitoring Outputs Monitoring Outputs (XLR / ¼" TRS Balanced): 2 / 2
    Auxiliary Aux Inputs/Outputs (¼" TRS Balanced): 6 / 6
    Headphones Phones Output (¼" TRS): 1 (Stereo)
    Networking AES50 Ports (Klark Teknik SuperMAC): 2
    Ultranet P-16 Connector (No Power Supplied): 1
    Expansion Expansion Card Interface: 32 Channel Audio Input / Output
    MIDI MIDI Inputs / Outputs: 1 / 1
    USB USB Type A (Audio and Data Import / Export): 1
    USB Type B: 1, rear panel, for remote control
    Ethernet RJ45: 1, rear panel, for remote control
    Microphone Inputs
    Design Midas PRO Series
    THD+N THD+N (0 dB gain, 0 dBu output): <0.01% unweighted
    THD+N (+40 dB gain, 0 to +20 dBu output): <0.03% (unweighted)
    Input Impedance Input Impedance (Unbalanced / Balanced): 10 kOhms / 10 kOhms
    Maximum Input Level Non-Clip Maximum Input Level: +23 dBu
    Phantom Power +48 V, (switchable per input)
    Equivalent Input Noise @ +45 dB gain (150 ohm source): -125 dB (22 Hz - 22 kHz, unweighted)
    CMRR CMRR @ Unity Gain (Typical): >70 dB
    CMRR @ 40 dB Gain (Typical): >90 dB
    Input/Output
    Frequency Response @ 48 kHz Sample Rate: 0 to -1 dB (20 Hz - 20 kHz)
    Dynamic Range Analog In to Analog Out: 106 dB (22 Hz - 22 kHz, unweighted)
    A/D, Preamplifier and Converter (Typical): 109 dB (22 Hz - 22 kHz, unweighted)
    D/A, Converter and Output (Typical): 109 dB (22 Hz - 22 kHz, unweighted)
    Crosstalk Rejection Typically @ 1 kHz 100 dB, adjacent channels
    Output Level XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
    Output Impedance XLR Connectors (Unbalanced / Balanced): 50 ohms / 50 ohms
    TRS (Unbalanced / Balanced): 50 ohms / 50 ohms
    Phones Output Impedance / Maximum output Level: 40 ohms / +21 dBu (Stereo)
    Input Impedance TRS Connectors (Unbalanced / Balanced): 20 kOhms / 40 kOhms
    Maximum Input Level Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
    Output Level TRS (Nominal / Maximum): +4 dBu / +21 dBu
    Residual Noise Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz - 22 kHz unweighted
    Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz - 22 kHz unweighted
    Residual Noise Level, TRS and Monitor out XLR Connectors: -83 dBu 22 Hz - 22 kHz unweighted
    Display
    Screens Main Screen: 5" TFT LCD, 800 x 480 resolution, 262 k colors
    Channel LCD Screen: 128 x 64 LCD with RGB color backlight
    Main Meter: 18-segment (-45 dB to clip)
    Power
    Power Supply Switch-Mode Power Supply: Auto-ranging 100 - 240 VAC (50 / 60 Hz) ±10%
    Power Consumption 70 W
    Physical
    Operating Temperature 41 - 104°F (5 - 40°C)
    Dimensions 18.8 x 24.3 x 8.2" (478 x 617 x 208 mm)
    Weight 31.5 lb (14.3 kg)
    Packaging Info
    Package Weight 43.6 lb
    Box Dimensions (LxWxH) 28.0 x 24.0 x 13.0"
    The user manual for the Midas M32R 40-Input Digital Mixing Console M32-R can be downloaded in .pdf format if it did not come with your new digital mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Midas users keep a unique electronic library for Midas digital mixerss, where you can use our link to download the user manual for the Midas M32R 40-Input Digital Mixing Console M32-R.

    The user manual lists all of the functions of the Midas M32R 40-Input Digital Mixing Console M32-R, all the basic and advanced features and tells you how to use the digital mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Midas service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Midas M32R 40-Input Digital Mixing Console M32-R. User manuals are also available on the Midas website under Pro Audio - Recording - Digital Mixers.
