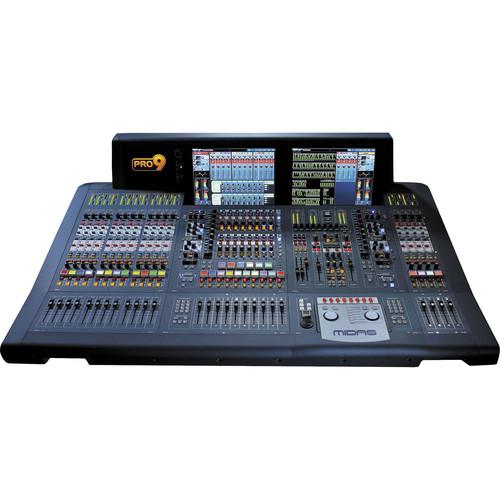

The installation package version of the MIDAS PRO9 Live Audio Mixing System is designed for live sound reinforcement such as in concert venues, theaters, houses of worship, broadcast, tours, and more. The system requires the Pro9 version of the MIDAS DL371 modular, upgradeable, remote DSP processing engine (sold separately) connected via Cat 5e cabling to a networked system of up to 11 discrete I/O devices depending on the user's specific I/O requirements. An redundant N+1 processing card can be added to the DL371 DSP engine as a backup, in the event that a card within the 371 fails.

The system is designed to be paired with both the DL351 and a DL451 modular stage boxes (sold separately) that feature 56 and 24 MIDAS designed microphone preamps respectively as well as eight analog XLR outputs in each stage box's default configuration.

Additional I/O can also be connected using any of the MIDAS DL series digital I/O units as well as the console's three rear panel card slots that can house any combination of MIDAS DL series I/O cards.

The flexibility of the system allows for it to be quickly reconfigured with whatever connections are required. Redundant power supplies are included with every system as part of the system's failure-tolerant architecture.

Additionally, the console features 8 auxiliary returns, all with 4-band parametric EQ and insert points. The auxiliary returns may be used as returns using the unit's eight internal multi-channel FX processors or as additional microphone input channels.

The console's 88 input channels may be routed to 35 phase coherent mix busses which comprise 16 user-configurable buses (as mixes, subgroups, or mix minus groups) and eight matrix buses. The matrix busses can receive their sources from inputs or groups which allows them to be used as eight additional auxiliary (monitor mix and fx sends) for a total of 32 mixes (plus L, R & Mono) for monitor mixing. All buses can be linked as stereo pairs, except the mono bus. As with other MIDAS digital consoles, the audio paths can be routed to multiple destinations and the console format can be reconfigured live on a scene-by-scene basis.

Increased flexibility can be added to the system by utilizing a Klark Teknik DN9650 Network Bridge digital format converter offering MADI and Dante connectivity.

The standard PRO9 live audio system is modular, allowing for some variations in physical placement and system size. This version of the control console is designed for install applications and arrives in a shipping crate.
If you own a Midas digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Midas PRO9 Live Audio Mixing System PRO9/CC/IP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Midas PRO9 Live Audio Mixing System PRO9/CC/IP:
I/O Maximum Input Capacity: 288
Maximum Output Capacity: 294
Primary Inputs: 80
Return Inputs: 8
Maximum simultaneous mix channels: 104
Number of groups/auxes: 16
Number of matrices: 16
Groups that provide mixes in monitor mode: 32
Mix buses: 35
VCAs: 10
POPulation groups: 6
Effects devices: 8
Maximum Klark Teknik Teknik DN370: 36
Configurable 'area B': yes
Expandability Digital snake: dual redundant HyperMac (192 x 192) Cat 53 digital snake included
Fiber-optic connections for optional maximum 500 m snake Additional I/O options:
DL251 Audio System I/O
DL351 Modular I/O
DL431 Mic Splitter
DL451 Modular I/O

I/O Card Options
DL441 analog input (mic module)
DL442 analog output module
DL443 analog jack I/O module
DL444 8 analog mic in and 8 analog line out module
DL452 AES/EBU input and output module
Option of 150 m fiber optic cable
Processor 32-bit
Reverb Hall, Plate, Chamber and Room, with five variations of each
Effects Live, Non-Linear, Reverse, Delay, ADT, Multitap Echo, Sound-On-Sound and Infinite Room
Parameters Pre-delay: 0 to 990 ms
Pattern (density) Adjustable 0 to 9 increments (Grainy to Dense)
Level (depth) Adjustable 0 to 9 increments (Distant to Close)
Decay time 0.1 to 18 seconds
Room size 8 to 90 meters linear dimension
LF decay Adjustable ±7 increments ref. 1 kHz decay time
HF decay Adjustable ±7 increments ref. 1 kHz decay time
Controls Input mute: Removes audio feed from reverberation section. Reverb mute: Clears unwanted reverberant signal.
Input level control: From 6dB gain to infinite attenuation.
Headroom indicator: 10-point LED display, 0 dB to -27 dB.
Display" Simultaneous display of all parameter information. Parameter selection and store functions are verified by individual LEDs
Sampling Frequency 96 kHz
Latency Delay <2 ms input to master (no compensation)
Dynamic Range 110 dB, 22 to 22,000 Hz (no pre-emphasis)
Maximum Voltage Gain 80 dB inputs to subgroups and masters
86 dB inputs to aux and matrix
Maximum Voltage Gain 80 dB inputs to subgroups and masters
86 dB inputs to aux and matrix
Crosstalk At 1 kHz: -100 dB physically adjacent input channels ,b>At 10 kHz: -100 dB physically adjacent input channels
Cut and Mix Transitions Fader/pan cut off at 1 kHz: -100 dB
Fader/pan cut off at 10 kHz: -100 dB
Display Screen 2x 15" daylight-viewable color screens
LCD 33x RGB color
Faders 29x touch-sensitive faders with 1024 steps of resolution
Encoders 102x touch-sensitive with 512 steps
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Operating Temperature 41 to 104°F (+5 to 40° C)
Storage Temperature -4 to 140° (-20 to 60°C)
Dimensions Control Center: 51.18 x 39.37 x 15.75" (1300 x 1000 x 400 mm)

Accessories (sold separately)
DL251 I/O Box (5U): 19.0 x 17.5 x 16.1" (48.3 x 44.5 x 41.0 mm)
DL351 I/O Box (7U): 19.0 x 24.5 x 16.1" (48.3 x 62.2 x 41.0 mm)
DL371 I/O Box (7U): 19.0 x 24.5 x 16.1" (48.3 x 62.2 x 41.0 mm)
DL451 I/O Box (3U): 19.0 x 10.5 x 16.1" (48.3 x 26.7 x 41.0 mm)
Weight Control center: 265 lb (120 kg)

Accessories (sold separately)
DL351: 110 lb (50 kg)
DL371: 66 lb (30 kg)
DL451: 29 lb (13 kg)
Packaging Info
Package Weight 369.1 lb
Box Dimensions (LxWxH) 61.0 x 43.0 x 29.0"
The user manual for the Midas PRO9 Live Audio Mixing System PRO9/CC/IP can be downloaded in .pdf format if it did not come with your new digital mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Midas users keep a unique electronic library for Midas digital mixerss, where you can use our link to download the user manual for the Midas PRO9 Live Audio Mixing System PRO9/CC/IP.

The user manual lists all of the functions of the Midas PRO9 Live Audio Mixing System PRO9/CC/IP, all the basic and advanced features and tells you how to use the digital mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Midas service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Midas PRO9 Live Audio Mixing System PRO9/CC/IP. User manuals are also available on the Midas website under Pro Audio - Recording - Digital Mixers.
