User manual for Middle Atlantic Mobile VTC-5670D-R
We recommend checking out our discussion threads on the Middle Atlantic Mobile VTC-5670D-R,
which address similar problems with connecting and setting up Flat Panel Carts Middle Atlantic.
User manual for the Middle Atlantic Mobile VTC-5670D-R
The user manual for the Middle Atlantic Mobile VTC-5670D-R provides
necessary instructions for the proper use of the product A/V Presentation - Mounts & Carts - Flat Panel Carts.

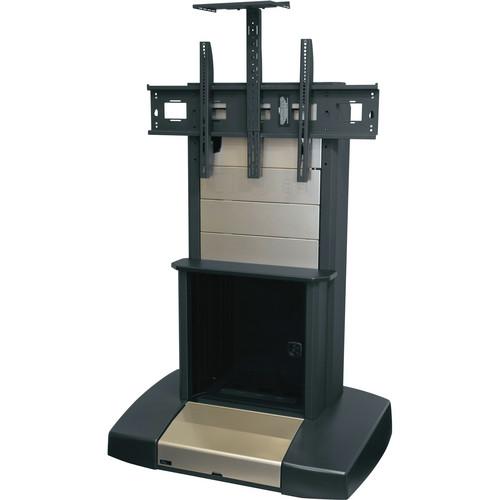

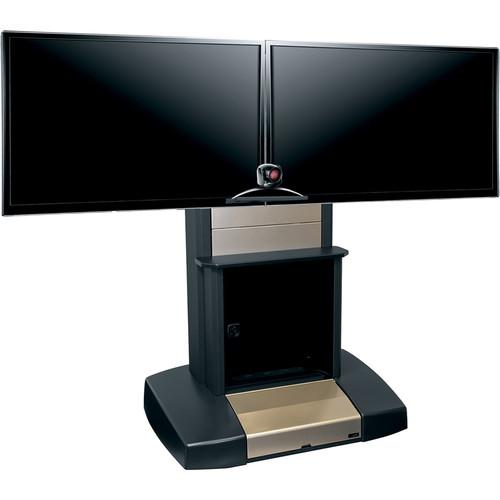

The VTC-5670D-R Mobile Videoconferencing/Presentation Cart with Dual Capacity for 56-70" Displays from Middle Atlantic is a natural nickel colored welded steel frame designed to hold either one or two displays with a maximum VESA pattern of 400x400. Weight capacity is a maximum of 250 lb for two monitors or 125 lb per monitor. It features a 17 x 6.3" laminate shelf on top of the rack as well as an adjustable 12 x 8" camera shelf. There are 12 rack spaces with a usable depth of 14.5" on the bottom two spaces and 16" on the top space. This cart also features a latching and locking tempered glass door. The base cover is lockable and features a soft hinge.
If you own a Middle Atlantic flat panel carts and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Middle Atlantic Mobile VTC-5670D-R in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Middle Atlantic Mobile VTC-5670D-R:
Specifications
Application
Video conferencing
Construction
Steel Tempered glass
Shelf
Laminate Shelf on Top of Rack: 17.0 x 6.3" (43.2 x 16.0 cm) Top: 17.0 x 6.3" (43.2 x 16.0 cm)
Cabinet
No
Electrical Unit
120 VAC / 60 Hz, 15 A power strip 8 surge protected outlets 10' SignalSAFE cord
Casters
Four; 2 rear locking
Adjustments
12 space vertically oriented adjustable rackrail in lower frame Mounting Shelf: 12.0 x 8.0" (30.5 x 20.3 cm)
Weight Capacity
250.0 lb (113.4 kg) Maximum 125.0 lb (56.7 kg) for individual monitors
Dimensions
60.0 x 41.9 x 28.0" (152.4 x 106.4 x 71.1 cm, not including monitor)
The user manual for the Middle Atlantic Mobile VTC-5670D-R can be downloaded in .pdf
format if it did not come with your new flat panel carts, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Middle Atlantic users keep a unique electronic library
for Middle Atlantic flat panel cartss,
where you can use our link to download the user manual for the Middle Atlantic Mobile VTC-5670D-R.
The user manual lists all of the functions of the Middle Atlantic Mobile VTC-5670D-R,
all the basic and advanced features and tells you how to use the flat panel carts.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Middle Atlantic service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Middle Atlantic Mobile VTC-5670D-R. User manuals are also
available on the Middle Atlantic website under A/V Presentation - Mounts & Carts - Flat Panel Carts.
