User manual for the Middle Atlantic Select Series Uninterruptible Power UPS-S2200R
The user manual for the Middle Atlantic Select Series Uninterruptible Power UPS-S2200R provides
necessary instructions for the proper use of the product Pro Audio - Furniture & Racks - Cable & Power Management.

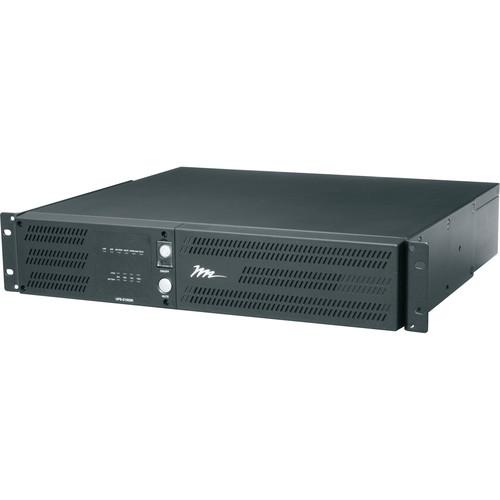

The Select Series UPS Backup Power from Middle Atlantic fits into a 2RU rackspace and has a capacity of 2200 volts to power your items. The unit features automatic voltage regulation with a boost only and operates on a 120 VAC/60 Hz current. The outlet bank allows for system reboots and features priority outlets for ensuring maximum run time of critical components and non-critical outlets for load shedding. A 10' power cord is included, and the unit has a surge suppression that utilizes a clean line-to-neutral design to avoid passing noise contamination. A power switch, mute button, and LED status indicators are located on the front of the unit for warning indicators and status notifications. If needed, the battery pack can be replaced via the front panel, and if desired, remote monitoring and power control is available after installing an IP card.
If you own a Middle Atlantic cable & power management and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Middle Atlantic Select Series Uninterruptible Power UPS-S2200R in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Middle Atlantic Select Series Uninterruptible Power UPS-S2200R:
Specifications
Capacity
2000 V, 1320 W
Rack Size
2RU
Input Voltage Range
90 to 140 VAC
Input Frequency Range
60 Hz ±3 Hz (auto-sensing)
Input Plug Type
NEMA 5-20P 10.0' / 3.0 m
On-Battery Output Voltage
Simulated sine wave at 120 VAC ±10%
On-Battery Output Frequency
60 Hz ±1%
Automatic Voltage Regulation (AVR)
Boost only (with input voltage less than 100 VAC)
Transfer Time
8 ms (typical)
Overload Protection
Utility: Circuit breaker Battery: Internal current limiting
Surge Protection and Filtering
Single mode, L-N
Lighting / Surge Protection
1840 joules
Outlets
8 x NEMA 5-20R
Battery Type
4 x 12 V / 9.0 AH
Runtime
Full Load: 4 (estimated) Half Load: 13 (estimated)
Operating Temperature & Humidity
32 to 104°F / 0 to 40°C 0 to 95%, non-condensing
Dimensions
17.1 x 3.5 x 15.3" / 43.3 x 8.9 x 38.7 cm
Weight
52.7 lb / 23.9 kg
