We recommend checking out our discussion threads on the Middle Atlantic UPS-2200R-HH Uninterruptible Power UPS-2200R-HH, which address similar problems with connecting and setting up Cable & Power Management Middle Atlantic.


User manual for the Middle Atlantic UPS-2200R-HH Uninterruptible Power UPS-2200R-HH

The user manual for the Middle Atlantic UPS-2200R-HH Uninterruptible Power UPS-2200R-HH provides necessary instructions for the proper use of the product Pro Audio - Furniture & Racks - Cable & Power Management.

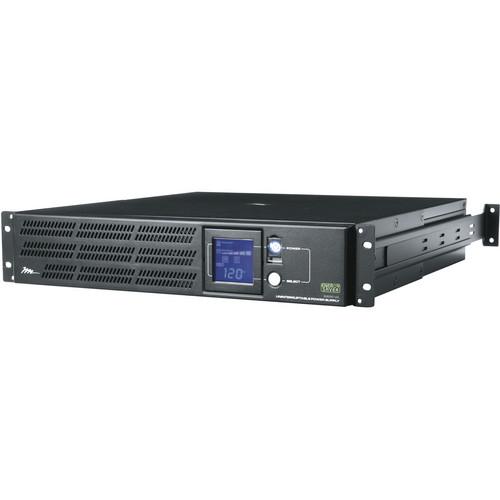

The Middle Atlantic UPS-2200R-HH Uninterruptible Power Supply provides uninterrupted power supply to your AV components. Surge protection ensures the safety of your valuable equipment and Energy Saver Circuitry makes your power supply environment-friendly.
If you own a Middle Atlantic cable & power management and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Middle Atlantic UPS-2200R-HH Uninterruptible Power UPS-2200R-HH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Middle Atlantic UPS-2200R-HH Uninterruptible Power UPS-2200R-HH:

Go To

Input
Nominal Input Voltage 120 VAC
Input Voltage Range 80 to 145 VAC
Input Frequency Range 60 ± 3 Hz (auto sensing)
Protection Type: Resettable thermal fuse
Cord Length 9" (228.6 mm)
Plug Type: NEMA 5 to 20P
Output
Green Mode Consumption Less than 9 W at full battery capacity
Nominal Output Voltage 120 V
Capacity VA: 2150
W: 1650
Waveform Pure sine wave
Output Frequency On Line: 57 to 63 Hz for 60 Hz nominal
On Battery: 60 ± 0.1 Hz
Transfer Time Typical: 4 ms typical line to battery / battery to line
Overload Protection On Line / Battery Mode: Yes
Surge Protection and Filtering
Lighting / Surge Protection L-N = 381 J (127 J x 3) clamp voltage
270 V (maximum energy 10 / 1000 μs)
RJ11 / RJ45 Protection 1x Sidactor clamp voltage 275 V
2x Fuse (0.75 A / 250 V)
Battery
Rating 12 V / 9 AH x 4
Auto Charger 1 A
Hot Swappable External Battery Yes
Standard Runtime At Half Load @ 7%: 13 minutes
At Full Load @ 7%: 6 minutes
Maximum Runtime At Half Load @ 7%: 575 minutes
At Full Load @ 7%: 200 minutes

Requires UPS-EBPR Expansion Battery Pack(s)
Warning Diagnostics
Control Panel LCD display indicators, power on
Audible Alarm On battery, low battery
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Relative Humidity 0 to 95% non-condensing
Communication
Software Middle Atlantic Power Manager
Management
Self-Test Manual Self-Test via front panel
Auto-Charger / Auto-Restart Yes
COM Ports Primary: -RS232 Communication + Control
Analog Status Notification + Control
Secondary: Analog status notification only
Built-in USB Interface Yes
Physical
Output Receptacies (8) NEMA 5-20R
Web Access Control No
Outlet Bank control
Rack Spaces 2
Termination Hardwired 36" (914.4mm) flex cable input and output
Rear Mounting Range 19 to 32" (482.6 to 812.8 mm)
Dimensions (W x H x D) 2U Rack: 17 x 3.5 x 19" (431.8 x 88.9 x 482.6 mm)
Weight 77 lb (34.92 kg)
Packaging Info
Package Weight 90.0 lb
Box Dimensions (LxWxH) 24.0 x 21.5 x 10.5"
The user manual for the Middle Atlantic UPS-2200R-HH Uninterruptible Power UPS-2200R-HH can be downloaded in .pdf format if it did not come with your new cable & power management, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Middle Atlantic users keep a unique electronic library for Middle Atlantic cable & power managements, where you can use our link to download the user manual for the Middle Atlantic UPS-2200R-HH Uninterruptible Power UPS-2200R-HH.

The user manual lists all of the functions of the Middle Atlantic UPS-2200R-HH Uninterruptible Power UPS-2200R-HH, all the basic and advanced features and tells you how to use the cable & power management. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Middle Atlantic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Middle Atlantic UPS-2200R-HH Uninterruptible Power UPS-2200R-HH. User manuals are also available on the Middle Atlantic website under Pro Audio - Furniture & Racks - Cable & Power Management.
