User manual for the Miller 1717 Arrow 55 Tripod System 1717
The user manual for the Miller 1717 Arrow 55 Tripod System 1717 provides
necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.

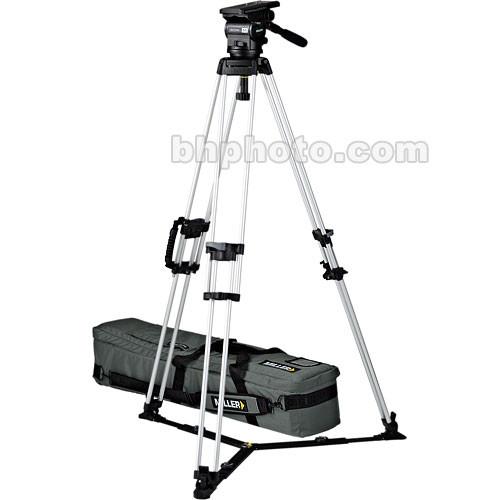

The Miller 1717 Arrow 55 tripod system consists of the 1028 Arrow 55 fluid head, 860 Arrow camera plate, 694 telescoping pan arm, 1589G Sprinter II single-stage alloy tripod, 470 Sprinter II ground spreader, and the 870 Arrow soft case.
If you own a Miller tripod systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Miller 1717 Arrow 55 Tripod System 1717 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Miller 1717 Arrow 55 Tripod System 1717:
| Load Capacity || 55.0 lbs (25.0 kg) |
| Maximum Height || 68.0" (172.5 cm) |
| Maximum Height w/o Column Extended || N/A |
| Minimum Height || 36.8" (93.5 cm) |
| Folded Length || 37.0" (94.0 cm) |
| Leveling Bubble/Illuminated || Yes/Yes |
| Weight || 23.0 lbs (10.45 kg) |
| Warranty || 3-Year Warranty |
| Counter Balance System || 4-Step plus zero |
| Quick Release/Wedge Plate || Yes |
| Balance Plate || Yes |
| Tilt Drag || 7-Step plus zero |
| Tilt Range || -90 to +90° |
| Tilt Lock || Caliper disc brake system |
| Spring Loaded Counter Balance || 7-Step plus zero |
| Pan Range || 360° |
| Pan Lock || Caliper disc brake system |
| Material || Aluminum alloy |
| Head Attachment Fitting || 100mm |
| Leg Stages/Sections || 1/2 |
| Leg Lock Type || Sprint-Loks |
| Independent Leg Spread || Yes |
| Spiked/Retractable Feet || Spiked |
| Center Brace || Ground-level spreader |
| Package Weight || 23.0 lb |
| Box Dimensions (LxWxH) || 45.0 x 13.0 x 11.0" |
