User manual MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A)

Operating instructions and pdf manual for use - MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A) User manual, User manual MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A), MIPRO, MA-303du, Dual-Channel, Portable, Recha


User manual for MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A)

MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A)
  • Manufacturer: MIPRO
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Portable PA Systems
  • Safety instructions
  • Startup and operation of the portable pa systems
  • Tips for setting up your MIPRO
  • Settings and expert assistance
  • Contact MIPRO service
  • Troubleshooting
  • Warranty information
  • Price: 630 USD
MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A) MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A) MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A) MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A) MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A)
Click to enlarge image

We recommend checking out our discussion threads on the MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A), which address similar problems with connecting and setting up Portable PA Systems MIPRO.



User manual for the MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A)

The user manual for the MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A) provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

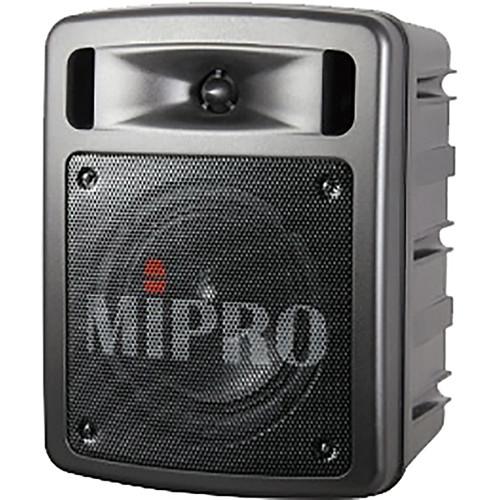

The MA-303du Dual-Channel Portable Wireless PA System from MIPRO is designed for live sound reinforcement applications with small- to medium-sized crowds, such as for schools, places of worship, corporate training, paging, trade shows, street performances, fitness instruction, and other comparable situations. This portable 6 pound PA system can be hand-carried using the fixed carry handle or mounted on a microphone stand. It will last up to 9 hours when powered by its built-in lithium rechargeable battery and can recharge in approximately 4 hours. A 4-level battery indicator displays the status of the battery and the unit may also be powered by an AC adapter.

For sound amplification, the device uses a 60W Class-D amplifier to drive a 5" low frequency woofer and a 1" high frequency tweeter. A 1/8" (3.5mm) input jack allows for connection of an external MP3, iPod, CD player, or other line level source. A built-in USB music player and recorder with remote control allows for direct connection to a computer, and an LCD display shows the track name, number, time, and recording status. An alarm button can also be engaged to generate an emergency warning siren sound. A 1/8" (3.5mm) output jack allows for connection to the input of an external sound device.

The PA system features two integrated UHF diversity wireless microphone receivers with 16 selectable channels as well as auto scan and transmitter sync functionality. This model operates on the 6A: 620 to 644 MHz band. Alternatively, a wired microphone can be connected using a 1/4" (6.3mm) unbalanced microphone input.
If you own a MIPRO portable pa systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A) in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A):
Power Output 60 W
Amplifier Class D
Wireless Frequency Range 6A: 620 to 644 MHz
Sensitivity Typical: 92 dB
Maximum: 102 dB
THD <1%
Frequency Response 50 Hz to 18 kHz
Drivers Woofer: 5" (127 mm)
Tweeter: 1" (25.4 mm)
Input / Output 1 x 1/4" (6.3 mm) phone jack, wired audio input
1 x 1/8" (3.5 mm) phone jack, audio line-in input
1 x 1/8" (3.5 mm) phone jack, audio output
1 x USB 2.0 port
Standby Time Up to 9 hours
Charge Time Up to 4 hours (automatic charging management)
Battery Indicator 4-Level Indicator: 25, 50, 75, 100%
Channels Dual wireless UHF receivers, 16 preset channels
Bandwidth 24 MHz
Channel Scan Mode Scan and ACT sync
Antenna Built-in
LCD Display Track name, number, time, and recording status
Power Supply AC: External 100 to 240 VAC switching power supply
DC: 14.8 V/2.6 AH rechargeable lithium battery
Installation Microphone stand
Table mounted
Approvals Patented, Telecom and safety regulations approved
Dimensions 8.3 x 11.0 x 6.5" (210 x 276 x 165 mm)
Weight Approximately 6.2 lb (2.8 kg) (including battery)
The user manual for the MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A) can be downloaded in .pdf format if it did not come with your new portable pa systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other MIPRO users keep a unique electronic library for MIPRO portable pa systemss, where you can use our link to download the user manual for the MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A).

The user manual lists all of the functions of the MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A), all the basic and advanced features and tells you how to use the portable pa systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from MIPRO service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the MIPRO MA-303du Dual-Channel Portable Rechargeable MA-303DU (6A). User manuals are also available on the MIPRO website under Pro Audio - Live Sound - Portable PA Systems.
