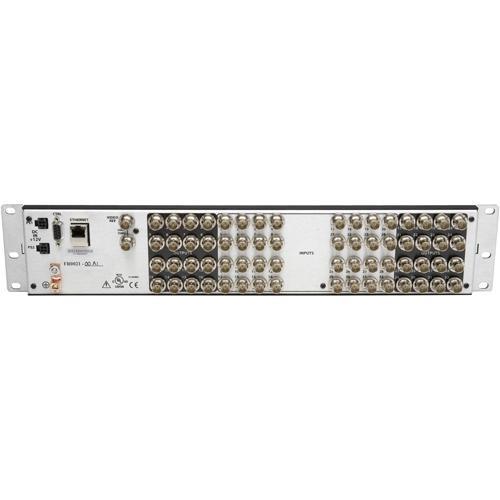

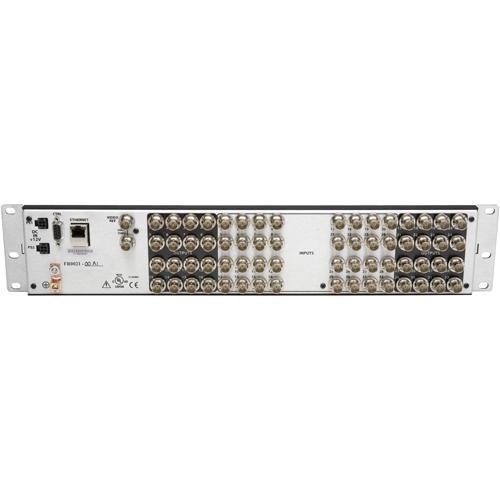

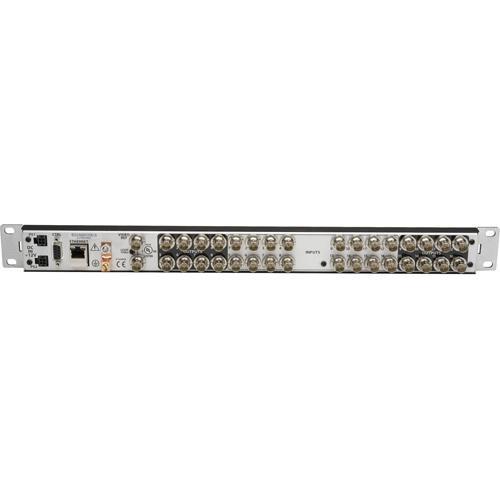

Click to enlarge image
|
We recommend checking out our discussion threads on the Miranda CR0808-AV NVISION Compact Router CR0808-AV,
which address similar problems with connecting and setting up Routers & Switchers Miranda.
|
User manual for the Miranda CR0808-AV NVISION Compact Router CR0808-AV
The user manual for the Miranda CR0808-AV NVISION Compact Router CR0808-AV provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.
The CR0808-AV NVISION Compact Router from Miranda is an analog composite video router that features (8) inputs and (8) outputs. It is designed to offer exceptional signal-path linearity, low differential gain, and low differential phase to ensure no visible signal distortion. It supports both NTSC & PAL standards.
|
If you own a Miranda routers & switchers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Miranda CR0808-AV NVISION Compact Router CR0808-AV in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Miranda CR0808-AV NVISION Compact Router CR0808-AV:
| Inputs/Outputs | Inputs: 8
Outputs: 8
Type: Analog video
Standard: NTSC, PAL
Connector: BNC
Impedance: 75 ohm
InputRet. Loss: > 45dB, DC to 6MHz> 30dB, 6MHz to 30MHz
OutputRET. Loss: > 45dB, DC to 6MHz> 40dB, 6MHz to 30MHz
InputLevel: 1Vp-p, nominal
OutputLevel: 1Vp-p, nominal
OutputDC Offset: 0V +/-30mV relative to backporch
InputRange: +/-2 V
InsertionLoss: 0 dB +/-0.1dB, any input to any output
FrequencyResponse: 0dBr +/-0.05dB, DC to 6MHz
DifferentialGain: < 0.1%
DifferentialPhase: < 0.1 degrees
Tilt: < 0.1%
Delay Scatter: < +/-65degrees at sub-carrier (PAL or NTSC) any input to any output
NoiseSpectrum: > 60dB test signal; luminance ramp
CMRR: > 60dB at 120Hz
Crosstalk: > 65dB at sub-carrier frequency
Output Isolation: > 90dB at sub-carrier frequency DC Coupled System | | Control | Serial Control
Type: 1 Serial port
Standard: SMPTE 207M, EIA-422, configurable
Connector: 1, DE-9 Ethernet
Type: 10/100 Base T
Standard: IEEE 802.3
Protocol: NVISION Ethernet protocol
Connector: 1, RJ-45 | | Power | AC Input: 90 to 250VAC, 50/60Hz, Auto-ranging
AC Fuses: No user serviceable fuses
AC Connectors: 2, 12VDC with external modules
AC Power: PS0001-00, HB0321-00, 50 W, one IEC 320
AC Power Usage: 9 to 16W
RegulatoryCompliance: UL Listed and CE Compliant | | Dimensions (HxWxD) | 1.75 x 19 x 1.38" (45 x 483 x 35mm)
1RU | | Weight | 2 lbs (4.4 kg) | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 22.0 x 10.1 x 5.6" | |
