Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060
  • Manufacturer: Motorola
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - 2-Way Radios
  • Safety instructions
  • Startup and operation of the 2-way radios
  • Tips for setting up your Motorola
  • Settings and expert assistance
  • Contact Motorola service
  • Troubleshooting
  • Warranty information
  • Price: 329 USD
We recommend checking out our discussion threads on the Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060, which address similar problems with connecting and setting up 2-Way Radios Motorola.



User manual for the Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060

The user manual for the Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - 2-Way Radios.

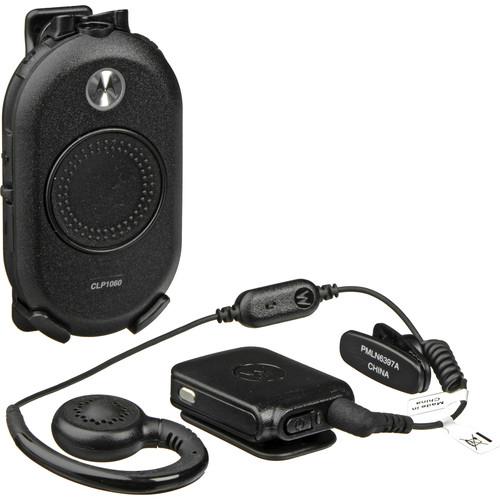

The CLP1060 6-Channel On-Site 2-Way Business Bluetooth Capable Radio from Motorola is a sleek and simple 2-way communications radio designed for retail and hospitality applications. The palm-sized design provides extreme user friendliness for seamless and natural communication. The unit has a large, central push-to-talk button that lets you communicate instantly. The radio operates on 6 channels and has an embedded antenna. It offers 90 selectable UHF frequencies for clear communication without interference and distortion.

The radio operates on standard or rechargeable batteries, with a life of up to 18 hours. A smart status glow indicator uses different colors to indicate active channel, radio transmit and receive, scan, and battery status. Programming software makes it easy to customize the radio's settings from your PC. The radio comes complete with a 1130mAh Li-ion rechargeable battery, a charging tray and power adapter, a beltclip, and a swivel earpiece with an inline PTT button.
If you own a Motorola 2-way radios and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060Download user manual for Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060
(PDF file, 2.44 MB)
Additional parameters of the Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060:
Type UHF
Frequency Range 450 - 470MHz
Coverage Area Up to 160,000ft2
Number of Channels 6
Channel Bandwidth 12.5 kHz / 25.0 kHz
Codes PL Codes: 39 std + 6 custom
DPL Codes: 84 std + 84 inverted + 6 custom
Scanning Yes
Channel Spacing 12.5, 25
Private Line 39 + Programmable
Digital Private Line 84
Cloning Yes, with Optional Accessories
Battery Type/Life Average Battery Life @ 5/5/90
Standard Li-Ion Battery BT60 1130 mAh: 8 hours
High Capacity Li-Ion Battery BT90 1800 mAh: 12 hours
Transmitter
RF Output High: 1.0 watts
Low: 0.5 watts
Frequency Stability < 2.5 ppm
Harmonic and Spurs < - 45 dBc
Noise @ 12.5kHz without companding: - 40 dB
@ 25.0kHz: - 45 dB
Modulation @ 12.5kHz: ±2.5kHz
@ 25.0kHz: ± 5.0kHz
Adjacent Channel Isolation Adjacent Channel Power: 60dBc
Spurious Emission @ 12.5kHz: < - 20dBm
@ 25.0kHz: < - 13dBm
Frequency Response (0.3 - 3.0 kHz) +1 to - 3 dB
Distortion < 2%
Receiver
Sensitivity - 122 dBm (0.18 uV)
Adjacent Channel Crosstalk Adjacent Channel Selectivity:
@ 12.5kHz: 60dB
@ 25.0kHz: 65dB
Intermodulation Spacing Rejection: 60dB
Spurious Output 80dB (blocking 1MHz)
Hum and Noise CSQ Hum & Noise @ 12.5kHz: -50dB
PL Hum & Noise @ 12.5kHz: -50dB
DPL Hum & Noise @ 12.5kHz: -45dB
Harmonic & Spurious Emissions Radiated Spurious Emissions (< 1GHz): < - 54 dBm
Radiated Spurious Emissions (> 1GHz): < - 52 dBm
Military Specification 810/IP54 Meets or exceeds Mil-Std 810G; 500.5, 501.5, 502.5, 503.5, 505.5, 513.6, 514.6
Environmental Operating Temperature: -22 to 140°F (-30 to +60°C) (Radio)
Shock & Vibration: Polycarbonate Housing passes EIA 603
Dust & Humidity: Satisfied EIA 603
Dimensions (HxWxD) 3.5 x 2 x 0.75" (89 x 51 x 19mm)
Weight 2.38 oz (67.5g)
Packaging Info
Package Weight 1.15 lb
Box Dimensions (LxWxH) 7.8 x 6.1 x 3.1"
The user manual for the Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060 can be downloaded in .pdf format if it did not come with your new 2-way radios, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Motorola users keep a unique electronic library for Motorola 2-way radioss, where you can use our link to download the user manual for the Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060.

The user manual lists all of the functions of the Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060, all the basic and advanced features and tells you how to use the 2-way radios. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Motorola service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Motorola CLP1060 6-Channel On-Site 2-Way Business CLP1060. User manuals are also available on the Motorola website under Pro Audio - Location Sound - 2-Way Radios.
