User manual for the Motorola DS9208-DL Omnidirectional Hands-Free DS9208-DL00004NNWW
The user manual for the Motorola DS9208-DL Omnidirectional Hands-Free DS9208-DL00004NNWW provides
necessary instructions for the proper use of the product Photography - Scanners - Barcode Scanners.

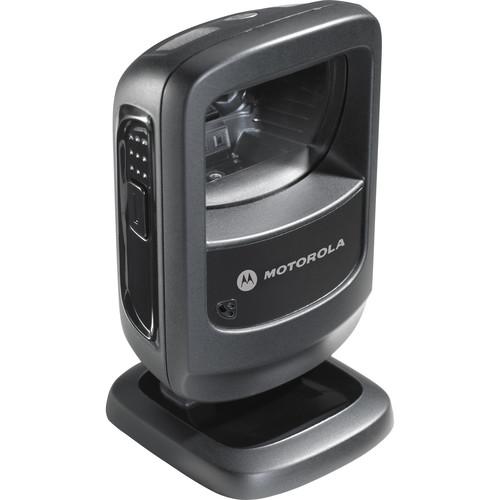

The DS9208-DL Omnidirectional Hands-Free Presentation Imager from Motorola is a hands-free barcode scanner capable of reading 1D, 2D, PDF417 and Postal symbologies as well as parsing data from driver's licenses. It features a working range from 0" to 10.5" depending on the type of barcode you are attempting to scan. Also, the DS9208-DL is drop resistant to 5' on concrete, ensuring the product will last.
The DS9208-DL utilizes a spherical exit window to improve scanning performance by reducing the amount of stray light and reflections that hit the imaging sensor. The scanner has multi-code and picklist modes that allow for scanning groups of codes or scanning codes from a list for smaller items. Also, it has dual LEDs and a programmable beeper for visual and aural confirmation.
This imager is capable of scanning codes on mobile devices like smartphones and tablets as well as computer screens. The DS9208-DL has USB, RS-232, RS-485, and wedge keyboard interface support and is compatible with 123Scan² and Remote Scanner Management software for saving time.
|
If you own a Motorola barcode scanners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Motorola DS9208-DL Omnidirectional Hands-Free DS9208-DL00004NNWW in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Motorola DS9208-DL Omnidirectional Hands-Free DS9208-DL00004NNWW:
| Light Source | Aiming Pattern: Single dot, 625 nm LED
Illumination: 630 nm LEDs | | Field of View | 46.0° x 29.5° | | Working Range | Code 39, 5 mil: 0-4.5" (0-11.4 cm)
80% UPC/EAN, 10 mil: 0-8.5" (0-21.6 cm)
100% UPC/EAN, 13 mil: 0-10.5" (0-26.7 cm)
PDF417, 6.6 mil: 0-3.8" (0-9.6 cm)
Datamatrix, 10 mil: 0-4.7" (0-11.9 cm) | | Resolution | Minimum
Code 39: 4 mil
60% UPC: 7.8 mil
PDF417: 5 mil
Datamatrix: 7.5 mil
QR Code: 7.5 mil | | Roll | 0-360° | | Pitch | ±65° or greater | | Yaw | ±60° or greater | | Read Speed | Vertical: Up to 90" (2.3 m) per second | | Image | 120 ppi on 4 x 6" (10.2 x 15.2 cm) document at 4.7" (11.9 cm) | | Image File Formats | BMP, JPEG, and TIFF (requires hands-free presentation cradle) | | Image Transfer | Speed
USB 2.0: Up to 12 Mb/sec
RS-232: Up to 115 kb/sec
Time
Typical USB is ~2 sec with compressed JPEG of 100 kb | | Print Contrast | 25% minimum reflective difference | | Drop Resistance | Multiple 5' (1.5 m) drops to concrete | | Ambient Light Immunity | Immune to natural and artificial ambient light (sunlight, incandescent, fluorescent, mercury vapor, sodium vapor) | | Supported Symbologies | 1D: UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
2D: TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)
PDF417: PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes (CC-A, CC-B, CC-C)
Postal: U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB, Canadian Post (Postbar) | | Interfaces Supported | USB, RS-232, RS-485 (IBM 46xx protocols), keyboard wedge | | Safety | Electrical: UL6950-1, CSA C22.2 No. 60950-1:2nd ed., EN60950-1: 2nd ed. + A11: 2009, IEC60950-1: 2nd ed.
LED: IEC / EN 60825-1: 2001 Class 1M LED, EN 62471: 2008, IEC 62471: 2006 | | EMI/RFI | FCC CFR47 Part 15 Class B: 2007, ICES-003 Issue 4 :2004 Class B, EN 55022: 2006 + A1: 2007, EN 55024: 1998 +A1: 2001 + A2: 2003 AS/NZS CISPR22:2006, VCCI:2007 | | Environmental | Compliant with RoHS directive 2002/95/EEC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 5-85%, non-condensing | | Power Requirements | Idle: 5 VDC ±10%, 150 mA
Scanning: 5 VDC ±10%, 230 mA | | Dimensions | 5.5 x 3.2 x 3.2" (14.0 x 8.2 x 8.0 cm) | | Weight | 9.5 oz (269 g) | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.5 x 5.0 x 3.6" | |
