User manual Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080

Operating instructions and pdf manual for use - Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080 User manual, User manual Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080, Motorola, RMV2080, On-Site, 2-Way, Business, Rad


User manual for Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080

Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080
  • Manufacturer: Motorola
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - 2-Way Radios
  • Safety instructions
  • Startup and operation of the 2-way radios
  • Tips for setting up your Motorola
  • Settings and expert assistance
  • Contact Motorola service
  • Troubleshooting
  • Warranty information
  • Price: 199 USD
We recommend checking out our discussion threads on the Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080, which address similar problems with connecting and setting up 2-Way Radios Motorola.



User manual for the Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080

The user manual for the Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - 2-Way Radios.

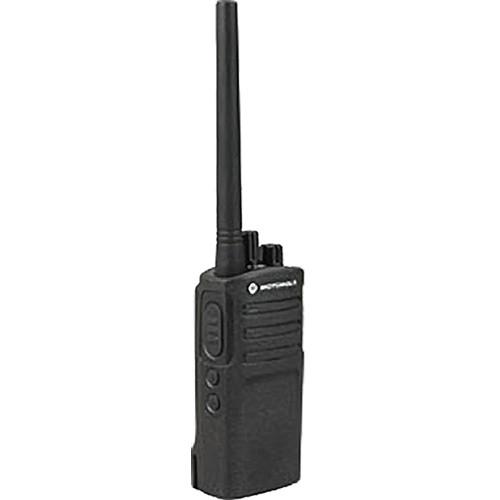

The single RMV2080 On-Site 2-Way Business Radio from Motorola is designed to let you securely communicate in up to a 220,000 square foot work environment. It operates on 27 VHF frequencies and has 219 PL/DPL codes, with up to 6 customizable. Its built-in 1500mW speaker is designed to provide enough output for use in noisy conditions such as construction sites.

The RMV2080 includes a rechargeable lithium-ion battery as well as a drop-in tray charger. A holster and power supply are also included.
If you own a Motorola 2-way radios and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080:
General
Frequency Range VHF (150.8 to 160 MHz)
Audio Output 1500 mW
Channels Capacity: 8
Bandwidth: 12.5 kHz
Battery Life Up to 15 hours with battery save
Up to 12 hours without battery save
Battery Voltage 3.7 V li-ion
Operating Temperature -22 to 140°F (-30 to 60ºC)
Dust and Humidity Satisfied EIA 603
Shock and Vibration Polycarbonate Housing passes EIA 603
Dimensions (HxWxD) With Standard Li-Ion Battery: 4.5 x 2.2 x 1.6" (115.6 x 57.6 x 40.5 mm)
With High Capacity Li-Ion Battery: 4.5 x 2.2 x 1.6" (115.6 x 57.6 x 40.5 mm)
Weight With Standard Li-Ion Battery: 8.9 oz (252 g)
With High Capacity Li-Ion Battery: 9.0 oz (255 g)
Receiver
Sensitivity -122 dBm (0.18 μV) (12 dB SINAD)
Adjacent Channel Selectivity 70 dB @ 12.5 kHz 75 dB @ 25 kHz
Intermodulation Rejection 70 dB
Spurious Rejection 90 dB (blocking 1 MHz)
Distortion < 5%
Sealing IP55
Hum and Noise CSQ @ 12.5 kHz: -50 dB
PL @ 12.5 kHz: -50 dB
DPL @ 12.5 kHz: -45 dB
Spurious Emission < 1 GHz: < -54 dBm
> 1 GHz: < -52 dBm
Audio Output @ < 5% Distortion: 1.5 W @ 8 Ω
Transmitter
RF Output High: 2 W
Low: 1 W
Frequency Stability < 1.5 ppm
Spurious & Harmonics < -45 dBc
Hum and Noise FM: -36 dBm for f < 1 GHz, -30 dBm for f> 1 GHz
Modulation Limiting: ±2.5 kHz @ 12.5 kHz ±5.0 kHz @ 25.0 kHz
Adjacent Channel Power 70 dBc
Spurious Emission @ 12.5 kHz: -36 dBm for f < 1GHz, -30 dBm for f> 1 GHz
@25 kHz: -36 dBm for f < 1GHz, -30 dBm for f> 1 GHz
Frequency Response 0.3 to 3.0 kHz (+1 to -3 dB)
Distortion < 2%
Packaging Info
Package Weight 1.3 lb
Box Dimensions (LxWxH) 10.2 x 6.7 x 2.4"
The user manual for the Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080 can be downloaded in .pdf format if it did not come with your new 2-way radios, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Motorola users keep a unique electronic library for Motorola 2-way radioss, where you can use our link to download the user manual for the Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080.

The user manual lists all of the functions of the Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080, all the basic and advanced features and tells you how to use the 2-way radios. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Motorola service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Motorola RMV2080 On-Site 2-Way Business Radio (Single) RMV2080. User manuals are also available on the Motorola website under Pro Audio - Location Sound - 2-Way Radios.
