User manual for the MSI A88X-G45 ATX Gaming Motherboard A88X-G45 GAMING
The user manual for the MSI A88X-G45 ATX Gaming Motherboard A88X-G45 GAMING provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

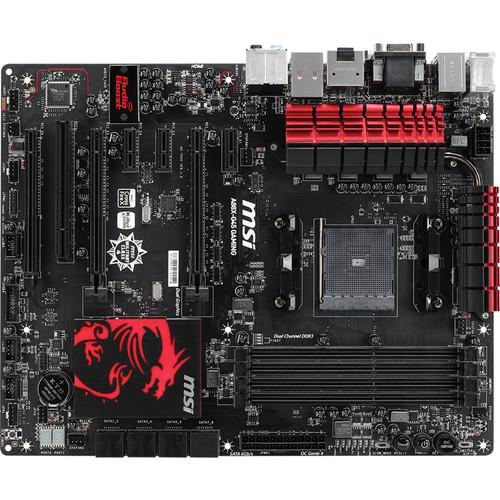

The A88X-G45 ATX Gaming Motherboard from MSI supports AMD socket FM2+/FM2, and A-Series/Athlon processors. It supports DDR3-2400 memory with a maximum capacity of 64GB. The AMD CrossFire technology enables two or more graphics processors to work together to improve graphics performance. The built-in headphone amplifier allows you to use studio-grade headgear to get enhanced sound quality out of your gaming PC. With Sound Blaster Cinema, you get an optimal surround sound with just the stereo headphones.
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI A88X-G45 ATX Gaming Motherboard A88X-G45 GAMING in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MSI A88X-G45 ATX Gaming Motherboard A88X-G45 GAMING:
CPU
AMD Socket FM2+/FM2 A-series/Athlon processors
Chipset
AMD A88X chipset
Main Memory
Support four DDR3 1333/1600/1866/2133/2400 MHz (OC) Maximum Capacity: Up to 64 GB Supports Dual-channel mode Supports non-ECC, un-buffered memory Supports AMD Memory Profile (AMP) Supports Extreme Memory Profile (XMP)
*Only FM2+ processors can support PCIe 3.0. **Only PCI_E3 is available, if PCI_E3 and PCI_E4 had been installed.
Graphics
1 x VGA port, supporting a maximum resolution of 1920 x 1200 at 60 Hz, 24 bpp 1 x DVI-D port, supporting the maximum resolutions of 2560 x 1600 at 60 Hz, 24 bpp/1920 x 1200 at 60 Hz, 24 bpp 1 x HDMI port, supporting the maximum resolutions of 4096 x 2160 at 24 Hz, 36 bpp*/3840 x 2160 at 30 Hz, 36 bpp*/1920 x 1200 at 120 Hz, 36 bpp, and 1920 x 1200 at 60 Hz, 36 bpp 1 x DisplayPort, supporting a maximum resolution of 4096 x 2160 at 24 Hz, 24 bpp**
*Only FM2+ processors can support PCIe 3.0. **Only PCI_E3 is available, if PCI_E3 and PCI_E4 had been installed.
On-Board SATA
SATA (III) controller integrated in AMD A88X chipset Up to 6 Gb/s transfer speed Supports 8 x SATA (III) ports (SATA 1~8) by A88X
RAID
Supports RAID 0, RAID 1, RAID 5, and RAID 10 by AMD A88X
USB
AMD A88X chipset 4 x USB 3.0 ports (2 x ports on the back panel, 2 x ports available through the internal USB connectors) 8 x USB 2.0 ports (2 x ports on the back panel, 6 x ports available through the internal USB connectors) VIA VL805 chipset 4 x USB 3.0 ports on the back panel*
*These USB 3.0 ports do not support M-Flash recovery function.
Killer E2205 gigabit LAN controller* 1 x LAN port on the backpanel
*The Killer Network Manager is only available for Windows 7 & 8 currently. The supported drivers for other operating systems would be available on the website if provided by vendor.
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 8 x SATA 6 Gb/s connectors 3 x USB 2.0 connectors (supports additional 6 x USB 2.0 ports) 1 x USB 3.0 connector 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 2 x 3-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x OC Genie button 1 x Power button 1 x Reset button 1 x OC Genie mode switch 1 x Slow mode booting switch 1 x 2-Digit Debug Code LEDs
Back Panel I/O Ports
1 x PS/2 keyboard/ mouse combo port 2 x USB 2.0 ports 6 x USB 3.0 ports 1 x VGA port 1 x DVI-D port 1 x HDMI port 1 x DisplayPort 1 x Optical S/PDIF-out connector 1 x LAN (RJ-45) port 6 x Audio jacks
The user manual for the MSI A88X-G45 ATX Gaming Motherboard A88X-G45 GAMING can be downloaded in .pdf
format if it did not come with your new motherboards, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other MSI users keep a unique electronic library
for MSI motherboardss,
where you can use our link to download the user manual for the MSI A88X-G45 ATX Gaming Motherboard A88X-G45 GAMING.
The user manual lists all of the functions of the MSI A88X-G45 ATX Gaming Motherboard A88X-G45 GAMING,
all the basic and advanced features and tells you how to use the motherboards.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from MSI service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the MSI A88X-G45 ATX Gaming Motherboard A88X-G45 GAMING. User manuals are also
available on the MSI website under Computers & Solutions - Computer Components - Motherboards.
