User manual for the MSI A88XM-E45 V2 Micro-ATX Motherboard A88XME45V2
The user manual for the MSI A88XM-E45 V2 Micro-ATX Motherboard A88XME45V2 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

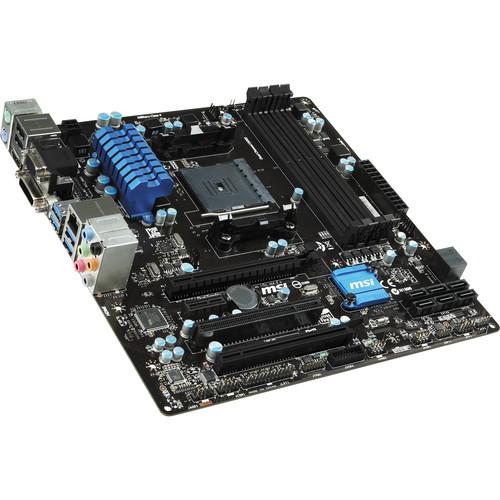

The MSI A88XM-E45 V2 Micro-ATX Motherboard lets you create a compact mid-range system for personal or business use. It features a FM2/FM2+ socket that supports AMD's A-series and Athlon processors to provide performance while working with applications. For multitasking, you can populate its four DDR3 memory slots with up to 64GB of non-ECC unbuffered RAM modules.
By supporting an AMD APU processor, this motherboard can deliver visuals via an integrated graphics engine through the HDMI, DVI-D, and VGA ports. When more graphics performance is needed, it has a PCIe 3.0 x16 slot that can hold a dedicated graphics card. In addition, it offers two PCIe 2.0 slots to handle sound cards or storage controllers. Moreover, eight internal SATA III connectors allow your system to access storage and optical drives. For external devices, this motherboard has four USB 3.0 and two USB 2.0 ports along with two PS/2 ports.
MSI offers other features that complete or enhance your system. They have outfitted this motherboard with a Gigabit Ethernet LAN jack as well as a Realtek ALC887 chip to deliver 7.1-channel high definition audio. To increase the system's stability and lifespan, Military Class 4 components are used in creating this motherboard. Furthermore, MSI lets you easily fine-tune or increase the performance of your system by offering OC Genie 4 and M Flash.
|
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI A88XM-E45 V2 Micro-ATX Motherboard A88XME45V2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the MSI A88XM-E45 V2 Micro-ATX Motherboard A88XME45V2:
| CPU | AMD A-Series/Athlon processors for the FM2+ and FM2 packages | | Chipset | AMD A88X Chipset | | Memory | • 4 x DDR3 memory slots support up to 64 GB
• Supports DDR3 1333/1600/1866/2133 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports AMD Memory Profile (AMP)
• Supports Extreme Memory Profile (XMP) | | Slots | • 1 x PCIe 3.0 x16 slot (PCI_E1 supports up to x16 speed)
• 1 x PCIe 2.0 x16 slot (PCI_E3 supports up to x4 speed)
• 1 x PCIe 2.0 x1 slot
• 1 x PCI slot
Please be aware that only FM2+ processors can support PCIe 3.0 | | Graphics | • 1 x VGA port, supporting a maximum resolution of 1920 x 1200 @ 60 Hz, 24 bpp
• 1 x DVI-D port, supporting a maximum resolution of 2560 x 1600 @ 60 Hz, 24 bpp and 1920 x 1200 @ 60 Hz, 24 bpp
• 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz, 36 bpp, 3840 x 2160 @ 30 Hz, 36 bpp, 1920 x 1200 @ 120 Hz, 36 bpp, and 1920 x 1200 @ 60 Hz, 36 bpp
Please be aware that 4096 x 2160 and 3840 x 2160 displays modes are only compatible with the FM2+ processor | | On-Board SATA | • 8 x SATA 6 Gb/s ports by AMD A88X
- Supports storage and data transfers at up to 6 Gb/s
- SATA1 to 8 ports support RAID 0/1/5/10 modes by AMD A88X | | Audio | Chipset integrated by Realtek ALC887
- 7.1-Channel High Definition audio | | LAN | • Supports Gigabit LAN by Realtek RTL8111G
- Supports 10 Mb/s, 100 Mb/s, and 1000 Mb/s
- Compliance with PCI-Express Bus specification v1.0a | | Internal I/O Connectors | - 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12 V power connector
- 8 x SATA 6 Gb/s connectors
- 2 x USB 2.0 connectors (supports an additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports an additional 2 USB 3.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper | | Back Panel I/O Ports | - 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 2 x USB 2.0 ports
- 4 x USB 3.0 ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x LAN (RJ-45) port
- 6 x audio jacks | | Mounting | 6 mounting holes | | Dimensions | Micro-ATX form factor
9.6 x 9.6" / 24.3 x 24.3 cm | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 11.0 x 10.8 x 2.7" | |
