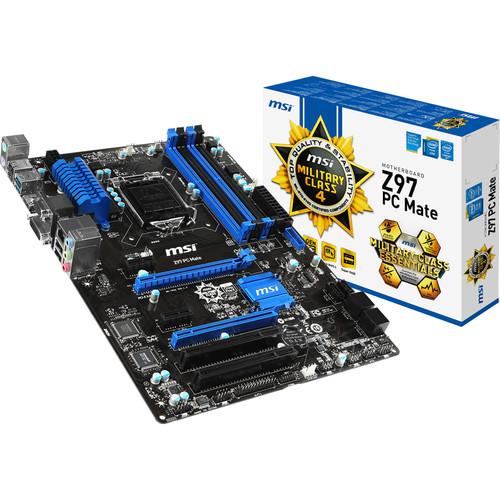

The Z97 PC MATE Motherboard from MSI supports 4th and 5th Generation Intel Core processors, and Intel Pentium and Celeron processors in LGA1150 socket. The motherboard supports DDR3-3000 (OC) memory. It features Click BIOS 4 that easily fine-tunes your system. Fast Boot helps to quickly boot up and enter OS in few seconds. The motherboard also features Military Class 4 components, which provide stability and durability. The Dark Choke and Solid CAP ensures that your PC runs stably under extreme gaming conditions.
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI Z97 PC MATE Motherboard Z97 PC MATE in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MSI Z97 PC MATE Motherboard Z97 PC MATE:
Specifications
CPU
Supports 4th and 5th Generation Intel Core processors, and Intel Pentium and Celeron processors for the socket LGA1150
2 x PCIe x16 slots PCI_E2 supports PCIe 3.0 PCI_E4 supports PCIe 2.0 Support x16, x4/x4 modes 2 x PCIe 2.0 x1 slots 2 x PCI slots
On-Board Graphics
1x VGA port, supporting maximum resolutions of 1920 x 1200 at 60 Hz, 24 bpp 1x DVI-D port, supporting maximum resolutions of 1920 x 1200 at 60 Hz, 24 bpp 1x HDMI port, supporting maximum resolutions of 4096 x 2160 at 24 Hz, 24 bpp/2560 x 1600 at 60 Hz, 24 bpp/1920 x 1080 at 60 Hz, 36 bpp
Multi-GPU Support
Supports AMD CrossFire technology
On-Board SATA
SATA III controller integrated in Intel Z97 chipset Up to 6 Gb/s transfer speed Supports 6 x SATA III ports (SATA 1~4) by Z97
RAID SATA 1~6 support Intel Rapid Storage technology enterprise (AHCI/RAID 0/1/5/10) by Intel Z97 Supports Intel Smart Response technology, Intel Rapid Start technology and Intel Smart Connect technology*
*Supports Intel Core processors on Windows 7/8.
USB
Intel Z97 Express chipset 4 x USB 3.0 ports (2 x ports on the back panel, 2 x ports available through the internal USB connectors) 8 x USB 2.0 ports (4 x ports on the back panel, 4 x ports available through the internal USB connectors)
Audio
Chipset integrated by Realtek ALC887 Flexible 8-channel audio with jack sensing Compliant with Azalia 1.0 specification
LAN
Supports one PCIe LAN 10/100/1000 fast Ethernet by Realtek RTL8111G
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 6 x SATA connectors 2 x USB 2.0 connectors (supports additional 4 x USB 2.0 ports) 1 x USB 3.0 connector (supports additional 2 x USB 3.0 ports) 2 x 4-pin CPU fan connectors 1 x 4-pin system fan connector 2 x 3-pin system fan connectors 1 x Clear CMOS jumper 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis intrusion connector 1 x TPM module connector 1 x Serial port connector 1 x Parallel port connector
Back Panel I/O Ports
1 x PS/2 keyboard port 1 x PS/2 mouse port 4 x USB 2.0 ports 2 x USB 3.0 ports 1 x RJ-45 LAN port 1 x 3-in-1 audio jacks 1 x VGA port 1 x DVI-D port 1 x HDMI port
This platform supports dual-display and triple-display function.
BIOS
The motherboard BIOS provides plug-and-play BIOS which detects the peripheral devices and expansion cards of the board automatically The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications
