User manual Music Hall USB-1 USB Turntable USB-1

Operating instructions and pdf manual for use - Music Hall USB-1 USB Turntable USB-1 User manual, User manual Music Hall USB-1 USB Turntable USB-1, Music, Hall, USB-1, USB, Turntable, USB-1, Video


User manual for Music Hall USB-1 USB Turntable USB-1

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

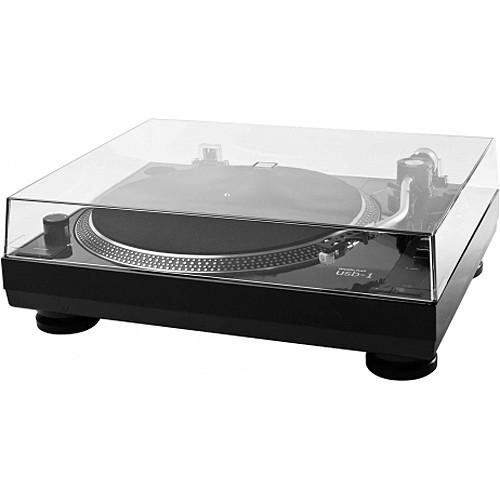

Music Hall  USB-1 USB Turntable USB-1
  • Manufacturer: Music Hall
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Home Audio Components - Turntables
  • Safety instructions
  • Startup and operation of the turntables
  • Tips for setting up your Music Hall
  • Settings and expert assistance
  • Contact Music Hall service
  • Troubleshooting
  • Warranty information
  • Price: 249 USD
We recommend checking out our discussion threads on the Music Hall USB-1 USB Turntable USB-1, which address similar problems with connecting and setting up Turntables Music Hall.



User manual for the Music Hall USB-1 USB Turntable USB-1

The user manual for the Music Hall USB-1 USB Turntable USB-1 provides necessary instructions for the proper use of the product TVs & Entertainment - Home Audio Components - Turntables.

The USB-1 USB Turntable from Music Hall is a two speed turntable that allows you to digitize your vinyl collection through its USB output and included Audacity software. Using its internal analog to digital convertors and the Audacity software, the USB-1 enables you to make digital copies of your vinyl collection in 16 bit, 44.1 or 48kHz quality. Designed to work with both 33 1/3 and 45rpm records, the USB-1 includes a 45rpm adapter for switching between the two speeds

The USB-1 is not limited to digital outputs, and has a built in phono preamp as well as analog 3.5mm RCA stereo outputs that are switchable between phono and line level for broader amplifier compatibility. .
If you own a Music Hall turntables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Music Hall USB-1 USB Turntable USB-1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Music Hall  USB-1 USB Turntable USB-1Download user manual for Music Hall USB-1 USB Turntable USB-1
(PDF file, 0.87 MB)
Additional parameters of the Music Hall USB-1 USB Turntable USB-1:
Turntable
Type 2-speed full manual
Motor DC motor
Drive Method Belt drive
Turntable 1x aluminum 330 mm diameter
Speeds 33 1/3 RPM
45 RPM
Wow and Flutter < 0.25% W rms (jis wtd) @ 33 1/3 rpm
Signal to Noise Ratio > 50 dB
Pitch Control Range +/- 10%
Starting Time < 1 s @ 33 1/3 RPM
Braking Time < 1 s @ 33 1/3 RPM
Time for Speed Change < 1 s from 33 1/3 to 45 RPM
< 1 s from 45 to 33 1/3 RPM
Speed Tolerance at Normal Pitch +/- 1.3%
USB Computer interface: USB 1.1 compliant Windows XP or Mac OSX
A/D: 16 bit 44.1/48 kHz
D/A: 16 bit 44.1/48 kHz
Tonearm
Type Static balanced S-shaped with detachable headshell
Arm Length 220 mm
Tracking Error Angle < 3°
Cartridge Weight 6 to 10 g
Anti-Skating Range 0 to 4 g
Line Output Level 90 to 216 mV at 1 kHz 5 cm/sec (HP-4005)
Phono Output Level 1.5 to 3.6 mV at 1 kHz 5cm/sec (HP-4005)
Frequency Response 20 Hz to 20 kHz
Channel Separation > 15 dB
Channel Balance Within 2.5 dB @ 1 kHz
Needle Pressure Range 3 to 4 g
High of Cue First track: 6 to 11 mm
Descend of Cue 1 to 3 s
EQ Amp Output: 150 mV +/- 4 dB (2.5 mV @ 1 kHz)
RIAA: 20 Hz to 20 kHz +1/-3 dB (1.5 mV @ 1 kHz)
General
Outputs 1x USB
2x 3.5 mm RCA
Power Supply AC 115 V 60 Hz or 230 V 50 Hz (user selectable)
Power Consumption 8 W
Operating Temperature 70 to 75º F (21 to 25º C)
Dimensions (WxDxH) 18 x 14 x 6" (450 x 350 x 145 mm)
Packaging Info
Package Weight 11.8 lb
Box Dimensions (LxWxH) 20.5 x 16.0 x 4.0"
The user manual for the Music Hall USB-1 USB Turntable USB-1 can be downloaded in .pdf format if it did not come with your new turntables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Music Hall users keep a unique electronic library for Music Hall turntabless, where you can use our link to download the user manual for the Music Hall USB-1 USB Turntable USB-1.

The user manual lists all of the functions of the Music Hall USB-1 USB Turntable USB-1, all the basic and advanced features and tells you how to use the turntables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Music Hall service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Music Hall USB-1 USB Turntable USB-1. User manuals are also available on the Music Hall website under TVs & Entertainment - Home Audio Components - Turntables.
