User manual for MXR M82 Bass Envelope Filter Pedal M82
Manufacturer: MXR
Basic description and contents of package
Product classification: Pro Audio - Musical Instruments - Effects Pedals
Safety instructions
Startup and operation of the effects pedals
Tips for setting up your MXR
Settings and expert assistance
Contact MXR service
Troubleshooting
Warranty information
Price: 150 USD
We recommend checking out our discussion threads on the MXR M82 Bass Envelope Filter Pedal M82,
which address similar problems with connecting and setting up Effects Pedals MXR.
User manual for the MXR M82 Bass Envelope Filter Pedal M82
The user manual for the MXR M82 Bass Envelope Filter Pedal M82 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Effects Pedals.

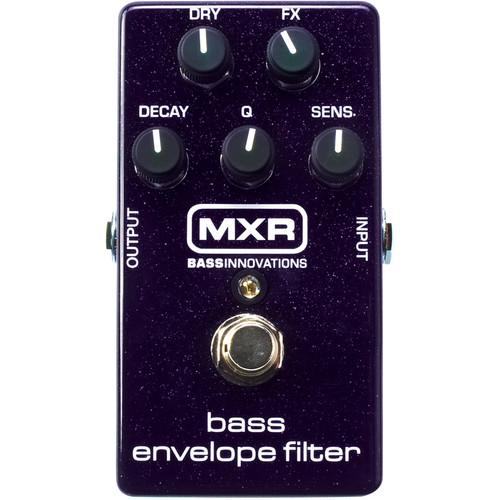

The M82 Bass Envelope Filter Pedal from MXR delivers classic, analog, and envelope filter sounds in a compact pedal designed specifically for bass guitars. It can be used in applications for live stage, theater, recording studios, rehearsals, and more.
If you own a MXR effects pedals and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MXR M82 Bass Envelope Filter Pedal M82 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MXR M82 Bass Envelope Filter Pedal M82:
Specifications
Input
1/4" (6.3 mm) jack
Output
1/4" (6.3 mm) jack
Input Impedance
1 MOhms
Output Impedance
100 ohms
Maximum Input Level
-15 dBV A-weighted with all controls at mid position
Maximum Output Level
+8 dBV
Noise Floor
-94 dBV A-weighted with all controls at mid position
Filter Sweep
76 Hz to 3.2 kHz
Sensitivity Range
46 dB Max Sensitivity at 500 Hz: fc = 3.2 kHz -23 dBV fc = 100 kHz -39 dBV
Decay Stop Frequency
76 Hz to 1.3 kHz
Filter Gain at FC
Q Min, fc = 76 Hz +8 dB Q Max, fc = 76 Hz +18 dB Q Min, fc = 3.2 kHz +8 dB Q Max, fc = 3.2 kHz +26 dB
FX Range
-∞ to 0 dB (relative to filter gain)
Dry Range
-∞ to +6 dB
Bypass
True hardwire
Current Draw
6 mA
Power Supply
9 VDC (Dunlop ECB003/ECB003E, or a DC Brick power supply - sold separately)
The user manual for the MXR M82 Bass Envelope Filter Pedal M82 can be downloaded in .pdf
format if it did not come with your new effects pedals, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other MXR users keep a unique electronic library
for MXR effects pedalss,
where you can use our link to download the user manual for the MXR M82 Bass Envelope Filter Pedal M82.
The user manual lists all of the functions of the MXR M82 Bass Envelope Filter Pedal M82,
all the basic and advanced features and tells you how to use the effects pedals.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from MXR service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the MXR M82 Bass Envelope Filter Pedal M82. User manuals are also
available on the MXR website under Pro Audio - Musical Instruments - Effects Pedals.
