User manual MXR M83 Bass Chorus Deluxe Pedal M83

Operating instructions and pdf manual for use - MXR M83 Bass Chorus Deluxe Pedal M83 User manual, User manual MXR M83 Bass Chorus Deluxe Pedal M83, MXR, M83, Bass, Chorus, Deluxe, Pedal, M83, Video


User manual for MXR M83 Bass Chorus Deluxe Pedal M83

MXR  M83 Bass Chorus Deluxe Pedal M83
  • Manufacturer: MXR
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Effects Pedals
  • Safety instructions
  • Startup and operation of the effects pedals
  • Tips for setting up your MXR
  • Settings and expert assistance
  • Contact MXR service
  • Troubleshooting
  • Warranty information
  • Price: 170 USD
We recommend checking out our discussion threads on the MXR M83 Bass Chorus Deluxe Pedal M83, which address similar problems with connecting and setting up Effects Pedals MXR.



User manual for the MXR M83 Bass Chorus Deluxe Pedal M83

The user manual for the MXR M83 Bass Chorus Deluxe Pedal M83 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Effects Pedals.

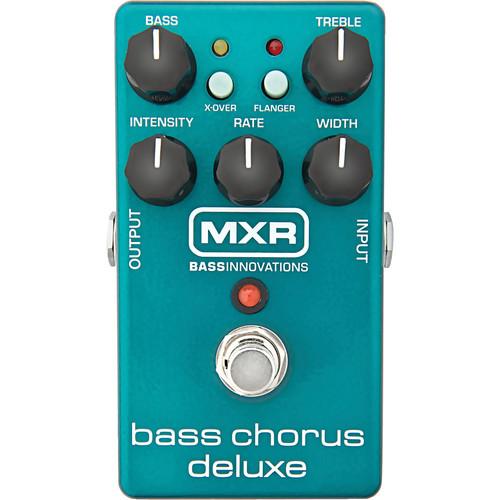

The M83 Bass Chorus Deluxe Pedal from MXR features both chorus and flanger effects, as well as a built-in crossover, and separate Bass and Treble controls to increase definition and low-end clarity.
If you own a MXR effects pedals and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MXR M83 Bass Chorus Deluxe Pedal M83 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MXR M83 Bass Chorus Deluxe Pedal M83:
Input 1/4" (6.3 mm) jack
Output 1/4" (6.3 mm) jack
Input Impedance 2 MOhms
Output Impedance Tip: (mono) 600 ohms
Ring: (stereo) 3.3 kOhms
Maximum Input Level 1 kHz/+10 dBV A-weighted with all controls at mid position
Maximum Output Level +13 dBV
Frequency Response 20 Hz to 20 kHz/± 1 dB
Signal to Noise Ratio >96 dBV A-weighted with all controls at mid position
Tone Controls Delay Signal Only:
+8 dB, -11 dB, 100 Hz (bass)
-2 dB, 100 Hz (center position bass)
± 14 dB, 10 kHz (treble)
Crossover Control +7.5 dB, 20 Hz/+3 dB, 100 Hz (dry Signal)
-18 dB, 20 Hz/-3 dB, 160 Hz (delay Signal)
Rate Control 0.1 to 10 Hz
Maximum Delay Time 12 ms
Minimum Delay Time 400 µs
Delay Noise Reduction 2:1 ratio
Bypass Mono: True hardwire
Stereo: Hardwired
Current Draw 30 mA
Power Supply 9 VDC
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Packaging Info
Package Weight 0.95 lb
Box Dimensions (LxWxH) 5.6 x 4.4 x 2.7"
The user manual for the MXR M83 Bass Chorus Deluxe Pedal M83 can be downloaded in .pdf format if it did not come with your new effects pedals, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other MXR users keep a unique electronic library for MXR effects pedalss, where you can use our link to download the user manual for the MXR M83 Bass Chorus Deluxe Pedal M83.

The user manual lists all of the functions of the MXR M83 Bass Chorus Deluxe Pedal M83, all the basic and advanced features and tells you how to use the effects pedals. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from MXR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the MXR M83 Bass Chorus Deluxe Pedal M83. User manuals are also available on the MXR website under Pro Audio - Musical Instruments - Effects Pedals.
