User manual for the myMix SF302-08MP Managed 10-Port 10/100 Power over POWER8
The user manual for the myMix SF302-08MP Managed 10-Port 10/100 Power over POWER8 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Personal Monitoring.

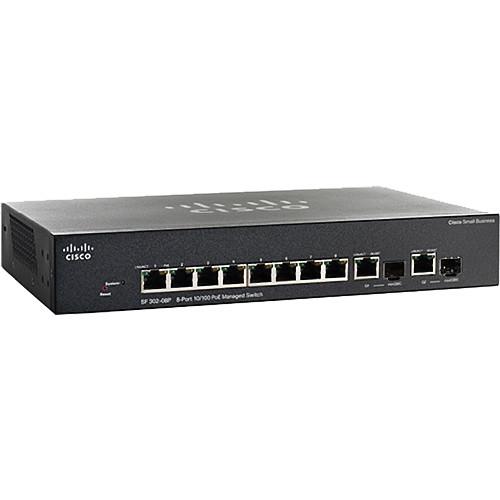

The myMix SF302-08MP Managed 10-Port 10/100 Power over Ethernet (PoE) Switch from Cisco connects 10 myMix devices, and can power up to 8 myMix devices via PoE. Port G1 is used for connecting additional myMix system devices. Port G2 has been configured as uplink for connection to other myMix switches. This switch is suitable for combining up to 8 myMix system devices on one CAT5 cable via uplink port G2. The package includes a power supply and rack mount kit (1 RU). In addition, this switch has a fanless operation.
The Cisco SF302-08MP switch provides a reliable foundation for your business network. This switch delivers the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively.
Easy to set up and use, the Cisco switch provides a combination of affordability and capabilities for small businesses, and helps you create a more efficient, better-connected workforce.
The SF302-08MP switch supports advanced security management capabilities and network features you need to support business-class data, voice, security, and wireless technologies. At the same time, this switch is simple to deploy and configure, allowing you to take advantage of the managed network services your business needs.
This switch can simply and securely connect employees working in small offices with each other and with all of the servers, printers, and other devices they use. High performance and reliable connectivity of this Cisco switch help speedy file transfers and data processing, improve network uptime, and keep your employees connected and productive.
With its advanced security features, Power over Ethernet, Auto Smartports, QoS, VLAN and Access Control, the SF302-08MP switch is a good choice to add Business Grade wireless to an SMB network.
As a managed network solution, this switch provides the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. This switch has been rigorously tested to help ensure easy integration and full compatibility with other products, thereby providing a complete small business solution.
The SF302-08MP switch offers secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to non-employee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests' network sessions private from each other.
If you own a myMix personal monitoring and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the myMix SF302-08MP Managed 10-Port 10/100 Power over POWER8 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the myMix SF302-08MP Managed 10-Port 10/100 Power over POWER8:
8 x RJ-45 Fast Ethernet 2 x& RJ-45 + SFP Gigabit Ethernet combo (mini-GBIC)
Each combo mini-GBIC port has one 10/100/1000 Ethernet port and one mini-GBIC/SFP Gigabit Ethernet slot, with one port active at a time.
PoE
24x RJ-45 Fast Ethernet Power Dedicated: 124 W
Speed
Switching Capacity in Gigabits per Second (Gbps): 5.6 Capacity in Millions of Packets per Second (mpps) with each packet being 64-bytes: 4.17
MAC Address Table Size
Up to 16,000 (16,384) MAC addresses
Frame Sizes
Jumbo Frames: up to 10 kB supported on 10/100 and Gigabit interfaces
Switching Method
Managed
Layer 2 Switching
Spanning Tree Protocol (STP): Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP)
Port Grouping: Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) Up to 8 groups Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN: Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs) Port-based and 802.1Q tag-based VLANs MAC-based VLAN Management VLAN Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN Unauthenticated VLAN
Voice Lan: Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP): Protocols for automatically propagating and configuring VLANs in a bridged domain
Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2: Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 Snooping: IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (source-specific multicasting is also supported)
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
Head-of-Line (HOL) Blocking: HOL blocking prevention
Layer 3
IPv4 Routing: Wirespeed routing of IPv4 packets Up to 32 static routes and up to 32 IP interfaces
Classless Inter-Domain Routing (CIDR): Support for CIDR
DHCP Relay at Layer 3: Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) Relay: Relay of broadcast information across Layer 3 domains for application discovery or relaying of BootP/DHCP packets
Security
Secure Shell Protocol (SSH): SSH secures Telnet traffic to and from the switch; SSH v1 and v2 are supported
Secure Sockets Layer (SSL): SSL Support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch
Layer 3 Isolation: Allow / disallow routing between IP subnets or directly connected IP networks
Layer 2 Isolation Private VLAN Edge (PVE) with Community VLAN: PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks
Port Security: Locks MAC addresses to ports, and limits the number of learned MAC addresses
RADIUS/TACACS+: Supports RADIUS and TACACS authentication. Switch functions as a client
Storm Control: Broadcast, multicast, and unknown unicast
DoS Prevention: DoS attack prevention
Congestion Avoidance: A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization
ACLs: Support for up to 512 rules Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP)/IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag
Quality of Service
Priority Levels: 4 hardware queues
Scheduling: Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service (802.1p/CoS)
Class of Service: Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/type of service (ToS)/DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS
Rate Limiting: Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based
IPv6
IPv6: IPv6 host mode IPv6 over Ethernet Dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND) IPv6 stateless address auto-configuration Path maximum transmission unit (MTU) discovery Duplicate address detection (DAD) ICMP version 6 IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol(ISATAP) support
IPv6 QoS Prioritize IPv6 packets in hardware IPv6 ACL Drop or rate limit IPv6 packets in hardware
Multicast Listener Discovery (MLD) snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 Applications Web/SSL, Telnet server/SSH, ping, traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, syslog, DNS client, protocol-based VLANs
Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000 BASE-T
Buttons
Reset button
LED
System, Link/Act, PoE, Speed
Memory
CPU: 128 MB Flash: 16 MB
Buffer
Packet Buffer: 8 MB
Management
Web User Interface: Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring
Remote Monitoring (RMON): Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 Dual Stack: Coexistence of both protocol stacks to ease migration
Firmware Upgrade: • Web browser upgrade (HTTP/HTTPS) and TFTP • Upgrade can be initiated through console port as well • Dual images for resilient firmware upgrades
Port Mirroring: Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port. A single session is supported
VLAN Mirroring: Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port. A single session is supported
DHCP (Options 66, 67, 82, 129, and 150): DHCP Options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download), and DHCP relay
Text-Editable Config Files: Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Smartports: Simplified configuration of QoS and security capabilities
Secure Copy: Securely transfer files to and from the switch
Textview CLI: Scriptable command-line interface
Cloud Services: Support for Small Business Toolbar Application
Localization: Localization of GUI and documentation into multiple languages
Other Management: Traceroute; single IP management; HTTP/HTTPS; SSH; RADIUS; port mirroring; TFTP upgrade; DHCP client; BOOTP; SNTP; Xmodem upgrade; cable diagnostics; ping; syslog; Telnet client (SSH secure support)
SNMP: SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
SNMP MIBS: Please consult the manufacturer's website for an extensive list of supported MIBS
MTBF
At 104°F (40°C): 63,569 hours
Power Save Mode
Energy Detect: Automatically turns off power off on Gigabit Ethernet RJ-45 port when detecting link down Active mode is resumed without loss of any packets when the switch detects the link up
Cable Link Detection: Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter than 10m
Certification
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Minimum Web Browser: Mozilla Firefox version 2.5 or later; Microsoft Internet Explorer version 6 or later Category 5 Ethernet network cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network
Environmental Requirements
Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: -4 to 158°F (-20 to 70°C) Operating Humidity: 10 to 90%, relative, non-condensing Storage Humidity: 10 to 90%, relative, non-condensing
Power Requirements
100 to 240 V, 50 to 60 Hz, 2.5 A, external
Power Consumption
Maximum (at Energy Detect Mode) System Power Consumption: 110 V = 9.5 W 220 V = 10.3 W
