User manual Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E

Operating instructions and pdf manual for use - Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E User manual, User manual Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E, Nady, 401X, Quad, 4-Channel, VHF, Wireless, 401X


User manual for Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E

Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E
  • Manufacturer: Nady
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Nady
  • Settings and expert assistance
  • Contact Nady service
  • Troubleshooting
  • Warranty information
  • Price: 270 USD
We recommend checking out our discussion threads on the Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E, which address similar problems with connecting and setting up Wireless Systems Nady.



User manual for the Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E

The user manual for the Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

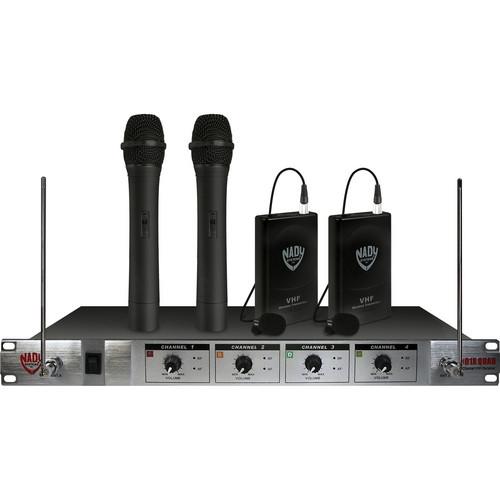

The Nady 401X Quad 4-Channel VHF Wireless Microphone System is a cost effective, multi-microphone solution that supports simultaneous operation of up to 4 wireless microphones. The 401X Quad receiver features 4 discrete audio channels with level control and an XLR output per channel. Adjust microphone level separately using the level controls on the front panel. This system includes 2 WLT bodypack transmitters with omnidirectional lavalier microphones, and 2 WHT handheld transmitters with unidirectional cartridges and on/off/standby switches. The Nady 401X Quad is ideal for restaurants, bars, schools, presentations, small performances, houses-of-worship and more.
If you own a Nady wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/EDownload user manual for Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E
(PDF file, 0.49 MB)
Additional parameters of the Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E:
System
Type of System 4-Channel VHF Bodypack
RF Carrier Frequency Range 170-230MHz (Factory installed channels)
Approx. Working Range 250 feet typical - up to 500+ feet optimum line-of-sight
Overall Frequency Response 30 - 18kHz (-3dB)
# Of Channels 4 Discrete
E4 / 173.800MHz, F / 203.400MHz, H / 191.300MHz, E / 215.200MHz
Receiver
Type of Receiver 4-Channel VHF Rackmountable
Type of Outputs 4x XLR
Power Requirements 16V @ 800mA, nominal, AC/DC adapter supplied
2.1mm barrel-type DC input jack (tip=positive)
Display 1 Power ON LED, 4 AF LED, 4 TX ON LED
Mounting Options 19" Rackmoutable
Connectors 1 unbalanced adjustable mixed (all four channel)
14" T-S audio output jack. Line level, 600 ohms
4 balanced fixed level XLR. #1=GND, #2-3=signals
Line/Mic level, 11k/600 ohms
Antenna Type Dual female BNC connectors
Dimensions 1.75 x 7.5 x 16.5" (4.4 x 19 x 42cm)
Weight 4.5 lbs (2 kg)
Transmitter
Type of Transmitter WLT Bodypack
WHT Handheld Transmitter
Type of Microphone Bodypack: Lavalier
Handheld: Dynamic cartridge
Polar Pattern Lavalier: Omnidirectional
Handheld: Unidirectional
Battery Type/Approx. Life 9V Alkaline
Up to 20 hours
Mute Switch OFF/STANDBY/ON switch
RF Output 50mW (Max. allowed by FCC)
Harmonic & Spurious Emissions <-40dB
Display Unit "ON" (single flash), Low Battery Alert (steady)
Dimensions Bodypack: 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0cm)
Handheld: 9.5 x 1.4" (24.1 X 3.5cm)
Weight Bodypack: 3.6oz (101g)
Handheld: 6.9oz (193g)
Packaging Info
Package Weight 8.5 lb
Box Dimensions (LxWxH) 21.1 x 12.2 x 5.1"
The user manual for the Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nady users keep a unique electronic library for Nady wireless systemss, where you can use our link to download the user manual for the Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E.

The user manual lists all of the functions of the Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nady service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nady 401X Quad 4-Channel VHF Wireless 401X QUAD LT/HT-E4/F/H/E. User manuals are also available on the Nady website under Pro Audio - Live Sound - Wireless Systems.
