User manual Nady ADI-1 - Direct Box ADI-1

Operating instructions and pdf manual for use - Nady ADI-1 - Direct Box ADI-1 User manual, User manual Nady ADI-1 - Direct Box ADI-1, Nady, ADI-1, Direct, Box, ADI-1, Video


User manual for Nady ADI-1 - Direct Box ADI-1

Nady  ADI-1 - Direct Box ADI-1
  • Manufacturer: Nady
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Direct Boxes
  • Safety instructions
  • Startup and operation of the direct boxes
  • Tips for setting up your Nady
  • Settings and expert assistance
  • Contact Nady service
  • Troubleshooting
  • Warranty information
  • Price: 30 USD
We recommend checking out our discussion threads on the Nady ADI-1 - Direct Box ADI-1, which address similar problems with connecting and setting up Direct Boxes Nady.



User manual for the Nady ADI-1 - Direct Box ADI-1

The user manual for the Nady ADI-1 - Direct Box ADI-1 provides necessary instructions for the proper use of the product Pro Audio - Recording - Direct Boxes.

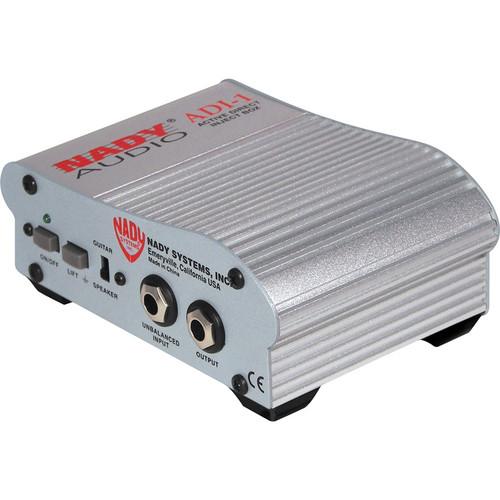

The ADI-1 from Nady is a single channel, active direct box that can be used to connect the unbalanced output of an instrument or line level device (eg. guitar, bass, synthesizer, effects module, another mixer) to the balanced input of a mixer or amplifier.

The unit features a parallel output that can be used to send the original unbalanced signal on to a mixer or amplifier. The ADI-1 can also be used to connect an amplifier's speaker output, or a speaker's "daisy chain" output, to the balanced input of a mixer. A ground lift switch is available to help deal with any ground hum issues that might occur.
If you own a Nady direct boxes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady ADI-1 - Direct Box ADI-1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nady ADI-1 - Direct Box ADI-1:
Type Active
Input Connections 1 x 1/4" TS phone
Output Connectors 1 x XLR
1 x 1/4" TS phone
Input Level 9V Battery: +8.5dBu
Phantom Power: +11.5dBu
Input Impedance Guitar: 1MΩ
Speaker: 10kΩ
Output Impedance 500Ω (approximately)
Controls Groud Lift switch
Speaker/Guitar switch
Frequency Response 20Hz to 20kHz, -3.0dB
Noise -101dBu (22Hz to 22kHz)
THD + N 0.02% @ 1VRMS, 1kHz (10Hz to 22kHz)
Power 9V battery or 24 to 48VDC phantom power
Dimensions (WxDxH) 4.8 x 4.05 x 2" (124 x 103 x 51mm)
Weight 0.8 lb (0.36kg)
Specialties Switchable 35dB pad for use with speaker
The user manual for the Nady ADI-1 - Direct Box ADI-1 can be downloaded in .pdf format if it did not come with your new direct boxes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nady users keep a unique electronic library for Nady direct boxess, where you can use our link to download the user manual for the Nady ADI-1 - Direct Box ADI-1.

The user manual lists all of the functions of the Nady ADI-1 - Direct Box ADI-1, all the basic and advanced features and tells you how to use the direct boxes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nady service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nady ADI-1 - Direct Box ADI-1. User manuals are also available on the Nady website under Pro Audio - Recording - Direct Boxes.
