User manual Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D

Operating instructions and pdf manual for use - Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D User manual, User manual Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D, Nady, Encore, Duet, Dual, Wireless, Combo, ENCORE, D


User manual for Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D

Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D
  • Manufacturer: Nady
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Nady
  • Settings and expert assistance
  • Contact Nady service
  • Troubleshooting
  • Warranty information
  • Price: 170 USD
We recommend checking out our discussion threads on the Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D, which address similar problems with connecting and setting up Wireless Systems Nady.



User manual for the Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D

The user manual for the Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

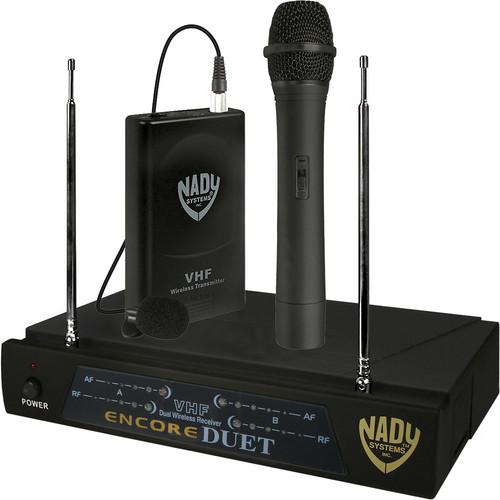

The Nady Encore Duet Dual Wireless Combo System is a cost effective cable-free solution for karaoke, DJs, houses-of-worship, auditoriums, presentations, conferences, small performances and more. The Nady Encore Duet Dual allows for individual or simultaneous wireless operation over two VHF frequencies. The system includes a rugged receiver with dual antennas, 1/4" phone and XLR outputs for connection to a PA system. Also included is the WHT handheld transmitter with DM-10D capsule, and WLT bodypack transmitter with LM-14O omnidirectional lavalier microphone. The transmitters operate up to 15 hours on single 9V batteries.
If you own a Nady wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D:
Specifications
    System
    Type of System Dual Channel VHF
    RF Carrier Frequency Range 2 channels between 171.905 - 215.200 MHz
    Approx. Working Range Up to 250 ft. typical (depending on site conditions);
    Up to 500+ feet optimum line-of-sight
    Overall Frequency Response 25Hz - 20kHz, +/-3dB
    Total Harmonic Distortion (THD) < 0.3 %
    Frequency Stability +/- 0.005%, crystal controlled
    Modulation FM (F3E), +/-20kHz max
    Receiver
    Type of Outputs Dual balanced XLR and unbalanced adjustable 1/4" audio out jacks (Ch A & B mixed), 2.1mm barrel-type DC input jack
    Power Requirements 12V @ 400mA, nominal, AC/DC adapter supplied
    Display Power ON, Dual 5-LED RF & AF level displays(Ch A/B)
    Antenna Type 11.2" (28.5 cm), dual telescopic
    Dimensions 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7cm)
    Weight 1.6 lbs (0.73 kg)
    Transmitter
    Type of Transmitter Nady WHT Handheld
    Type of Microphone DM-10D Neodymium
    Polar Pattern Cardioid
    Battery Type/Approx. Life Battery: 9V Alkaline
    Battery Life: Up to 15 hours
    Mute Switch Off/On Switch
    Display Low-battery LED
    Dimensions 9.5 x 1.4" (24.1 X 3.5cm)
    Weight 6.9 oz (193 g)
    Transmitter
    Type of Transmitter Nady WLT Bodypack
    Type of Microphone LM-14O Lavalier Microphone
    Polar Pattern Omnidirectional
    Battery Type/Approx. Life Battery: 9V Alkaline
    Battery Life: Up to 15 hours
    Mute Switch Off/On Switch
    Display Low-battery LED
    Dimensions 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0cm)
    Weight 3.6 oz (101 g)
    Packaging Info
    Package Weight 3.0 lb
    Box Dimensions (LxWxH) 12.0 x 11.5 x 2.5"
    The user manual for the Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nady users keep a unique electronic library for Nady wireless systemss, where you can use our link to download the user manual for the Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D.

    The user manual lists all of the functions of the Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nady service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nady Encore Duet Dual Wireless Combo ENCORE DUET HT/LT/O/B/D. User manuals are also available on the Nady website under Pro Audio - Live Sound - Wireless Systems.
