User manual for the Nady MC-15 Passive 15" 2-Way Loudspeaker MC-15

The user manual for the Nady MC-15 Passive 15" 2-Way Loudspeaker MC-15 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

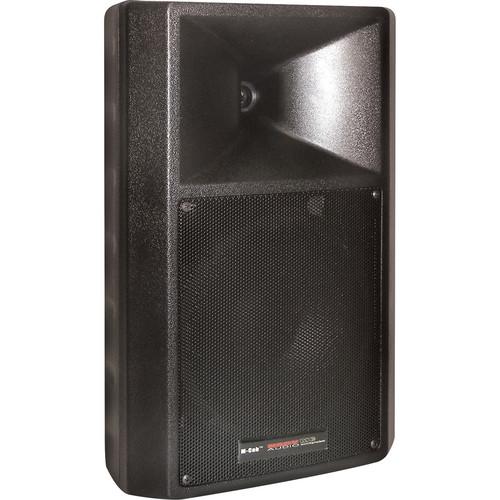

The MC-15 from Nady is a 2-way passive loudspeaker that provides high-quality audio in a lightweight and versatile design. Ideal for front-of-house and stage monitoring applications, the speaker has a durable molded high-impact ABS/fiberglass composite cabinet that deflects bumps and scrapes and has integrated handles for ease of mobility and set-up. The cabinet houses a 15" woofer and a 1.5" titanium compression tweeter to provide clear audio with a wide frequency response. The tweeter has a wide-angle short throw horn that provides a 90 x 50° dispersion pattern.

The speaker has a 600W peak (300W RMS) power handling capability and offers dual Speakon input connectors, allowing you to connect to professional sound systems and devices. The speaker has an 8 ohm impedance for wide system compatibility. The low impedance compensated crossovers have full driver protection to ensure reliable operation. The speaker can be mounted in a variety of ways thanks to the trapezoidal shape and integrated mounting. It can be mounted horizontally or vertically, or hung in a cluster thanks to threaded brass inserts. The included detachable brace mounts provide dual-angle floor wedge use. A 35mm pole socket lets you mount the speaker on a stand or on top of a subwoofer.
If you own a Nady pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady MC-15 Passive 15" 2-Way Loudspeaker MC-15 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nady MC-15 Passive 15" 2-Way Loudspeaker MC-15:
Active or Passive Passive
Frequency Response 50Hz - 18kHz
Power Capacity 600W Peak, 300W RMS
Sensitivity 98dB
Impedance 8 Ohms
Low Frequency Driver 15" (381mm) Woofer with 2.5" Voice Coil
High Frequency Driver 1.5" (31mm) Titanium Compression Tweeter with 90 x 50° Horn
Enclosure Trapezoidal High-Impact ABS/Fiberglass Cabinet with Metal Grille
Input Connections 2 x Speakon Inputs
Mounting Vertical or Horizontal, Dual Angle Floor Wedge (Mounts Included), Threaded Brass Inserts for Eye Bolts, 35mm Pole Socket
Dimensions (WxDxH) 17.7 x 14.2 x 27.2" (450 x 360 x 690mm)
Weight 50.6 lbs (23kg)
Packaging Info
Package Weight 51.0 lb
Box Dimensions (LxWxH) 31.0 x 21.0 x 18.0"
