User manual Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11

Operating instructions and pdf manual for use - Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11 User manual, User manual Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11, Nady, UHF-4, Handheld, UHF, Wireless, Microphone


User manual for Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11
  • Manufacturer: Nady
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Nady
  • Settings and expert assistance
  • Contact Nady service
  • Troubleshooting
  • Warranty information
  • Price: 100 USD
We recommend checking out our discussion threads on the Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11, which address similar problems with connecting and setting up Wireless Systems Nady.



User manual for the Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11

The user manual for the Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

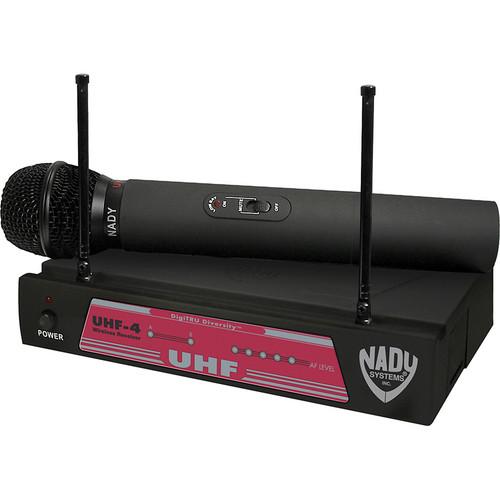

The Nady UHF-4 Handheld UHF Wireless Microphone System incorporates stable UHF reception in a cost effective package for DJs, presentations, houses-of-worship, karaoke, and much more. The UHF-4 avoids the crowded VHF bandwidth, resulting in low noise and fewer drop-outs. The system is straightforward and easy to operate, with the UH-4 handheld microphone transmitter and UHF-4 receiver. The UH-4 handheld transmitter features Nady's DM-10D neodymium, cardioid capsule for professional sound in any application. The receiver features DigiTRU diversity technology for stable reception.
If you own a Nady wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11:
Specifications
    System
    Type of System Handheld UHF
    RF Carrier Frequency Range UHF, choice of single frequencies within separate bands902-928 and 944-952 MHz
    Approx. Working Range Up to 250 ft. typical (depending on site conditions); up to500+ feet optimum line-of-sight
    Overall Frequency Response 30Hz - 18KHz, +/- 3dB
    Total Harmonic Distortion (THD) < 0.6%
    Frequency Stability +/- 0.005%, crystal controlled
    Modulation FM (F3E), +/-20KHz normal
    Receiver
    Type of Outputs DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load)
    Power Requirements DC 15V @ 300 mA, AC/DC adapter included
    Display Power ON, Diversity A/B, Audio LED Bars + Peak
    Antenna Type 3.5" (9.0cm), dual telescopic
    Dimensions 1.75 x 7.5 x 8.1" (4.5 x 19 x 20.6cm)
    Weight 0.9 lbs (0.41 kg)
    Transmitter
    Type of Transmitter Nady UH-4 Handheld
    Type of Microphone DM-10D Neodymium
    Polar Pattern Cardioid
    Battery Type/Approx. Life 9V Alkaline10 Hours
    Mute Switch POWER/STANDBY/OFF/INPUT LEVEL
    Display Single color (red), Unit "ON" (single flash red), Low BatteryAlert (steady red)
    Dimensions 9.5 x 2.0" (24 x 5.1cm)
    Weight 6.6 oz (187 g) without battery
    Packaging Info
    Package Weight 2.6 lb
    Box Dimensions (LxWxH) 12.1 x 11.4 x 2.3"
    The user manual for the Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nady users keep a unique electronic library for Nady wireless systemss, where you can use our link to download the user manual for the Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11.

    The user manual lists all of the functions of the Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nady service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nady UHF-4 Handheld UHF Wireless Microphone System UHF-4 HT/11. User manuals are also available on the Nady website under Pro Audio - Live Sound - Wireless Systems.
