User manual for the NEC 21.3" Grayscale 5-Megapixel Medical MDG5-BNDL1
The user manual for the NEC 21.3" Grayscale 5-Megapixel Medical MDG5-BNDL1 provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.

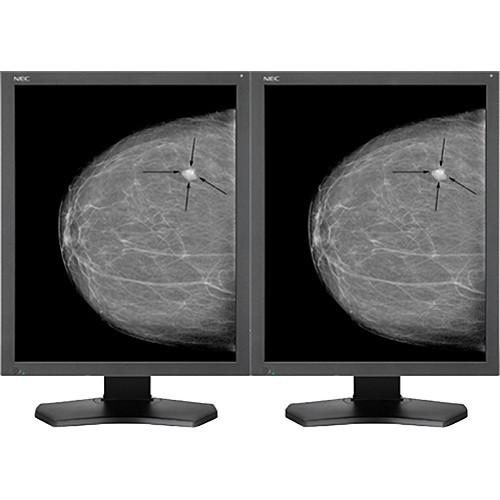

The NEC 21.3" Grayscale 5-Megapixel Medical Diagnostic Monitors with Graphics Card (2) is a high-grade set of two monitors, specifically designed for medical use. Each of the matched screens are 21.3" and have 5Mp and 256 levels of grayscale. The displays feature a triple output DVI video card and calibrators. IPS viewing panels allow for wide viewing angles, out-of-the box DICOM calibration, and image uniformity. Each monitor has a protective panel to prevent damage to the screen.
|
If you own a NEC medical diagnostic displays and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the NEC 21.3" Grayscale 5-Megapixel Medical MDG5-BNDL1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the NEC 21.3" Grayscale 5-Megapixel Medical MDG5-BNDL1:
| Type | Medical-grade widescreen diagnostic | | Viewable Size | 21.3 " | | Pixels | 5 Mp | | Native Resolution | 2048 x 2560 | | Brightness | Calibrated: 500 cd/m2 Max: 1100 cd/m2 | | Contrast Ratio | 850:1 | | Viewing Angle | Vertical: 170 ° Horizontal: 170 ° | | Pixel Dot Pitch | 0.17 x 0.17 mm | | Response Time | 18 ms | | Pixels Per Inch | 154 | | Colors Supported | 256 levels of gray Out of a palette of 3826 | | Synchronization | Horizontal: 30-135 kHz Vertical: 25-75 Hz | | Connectivity | DVI-D | | Consumption | On: 90 W Power Savings Mode: 10 W | | Mounting | 100 x 100 mm VESA | | Environmental | Operating temperature: 41-104 °F / 5-40 °C Storage temperature: -4-140 °F / -20-60 °C Operating humidity: 30-80 % Storage humidity: 10-85 % Operating altitude: 9842 ' / 3,000 m Storage altitude: 32,808 ' / 10,000 m | | Dimensions | With stand: 18.7 x 15.9-21.3 x 9 " / 474.5 x 403.3-541.8 x 227.6 mm Without stand: 18.7 x 15.4 x 4.1 " / 474.5 x 3.9 x 103.4 mm | | Weight | With stand: 24.5 lb / 11.1 kg Without stand: 17.4 lb / 7.9 kg | |
The user manual for the NEC 21.3" Grayscale 5-Megapixel Medical MDG5-BNDL1 can be downloaded in .pdf
format if it did not come with your new medical diagnostic displays, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other NEC users keep a unique electronic library
for NEC medical diagnostic displayss,
where you can use our link to download the user manual for the NEC 21.3" Grayscale 5-Megapixel Medical MDG5-BNDL1.
The user manual lists all of the functions of the NEC 21.3" Grayscale 5-Megapixel Medical MDG5-BNDL1,
all the basic and advanced features and tells you how to use the medical diagnostic displays.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from NEC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the NEC 21.3" Grayscale 5-Megapixel Medical MDG5-BNDL1. User manuals are also
available on the NEC website under Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.
