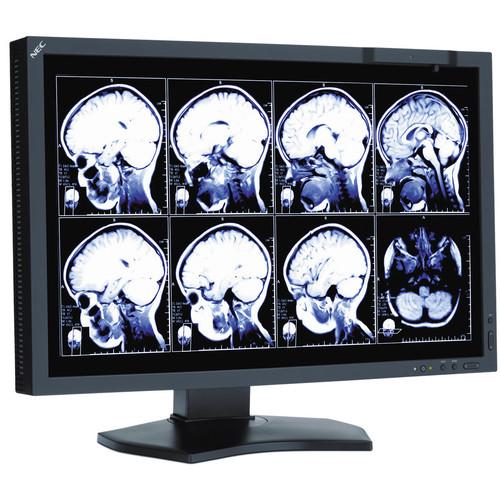

The 24" (609mm) Medical Review Display with Front Sensor from NEC is a referral-grade widescreen diagnostic display. It is designed to meet the demanding needs of healthcare professionals in medical imaging and PACS. This 2.3 Mp model has an IPS panel to provide precise color reproduction and wide viewing angles as well as an integrated front sensor which constantly monitors and adjusts brightness to maintain the factory DICOM GSDF calibration. The monitor also includes a human presence sensor that can automatically dim the screen to conserve power, a Quick QA function for checking DICOM conformance without a computer and a four-way ergonomic stand that supports height, swivel, tilt and pivot adjustments. The display offers DisplayPort, DVI-D, HDMI and VGA inputs, a built-in three-port USB hub with DisplaySync Pro and 14-bit lookup tables (LUTs) with 1024 levels of gray for smooth images and hardware calibration.
If you own a NEC medical diagnostic displays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC 24" Medical Review Display with Front Sensor MD242C2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC 24Download user manual for NEC 24" Medical Review Display with Front Sensor MD242C2
(PDF file, 4.68 MB)
Additional parameters of the NEC 24" Medical Review Display with Front Sensor MD242C2:
Display
Viewable Image Size 24" (609 mm)
Colors Type Color
MegaPixels 2.3 Mp
Native Resolution 1920 x 1200
Pixel Pitch 0.27 mm
Pixels Per Inch 93 @ native resolution
Brightness 180 cd/m2 calibrated / 350 cd/m2 max (typical)
Contrast Ratio 1000:1 (typical)
Viewing Angle 178° Vertical, 178° Horizontal (89U/89D/89L/89R) @ CR>10
Response Time 8 ms
Lookup Table 14-bit
Displayable Colors 1024 levels of gray out of a palette of 3826
Synchronization Range
Horizontal 31.5 kHz to 93.8 kHz and 118.4 kHz / 30-135 kHz (analog/digital)
Vertical 50 to 85 Hz
Input Signal
Video Analog RGB 0.7 Vp-p/75 Ohms
Sync Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Connectivity
Input/Output Terminals Input/Output Terminals-Digital: DisplayPort, DVI-D, HDMI, D-sub
Power Requirements
Power Consumption (Active) 29.5 W
Power Saving Mode 0.2 W
Configuration
VESA Hole Pattern VESA Hole Configuration Specifications: 100 x 100mm
Environmental
Operating Temperature 41 to 95°F (5 to 35°C)
Operating Humidity 20 to 80%
Operating Altitude 16404' (5000 m)
Storage Temperature 14 to 140°F (-10 to 60°C)
Storage Humidity 10 to 85%
Storage Altitude 40,000' (12,192 m)
Standards
Safety Standards UL60950-1
UL60601-1
PSB
SASO
CCC
GOST/PCT
CE-MDD
NOM
TUV GM
FCC Class B
C-tick
FDA 510(k) pending
VCCI class 2
RoHA
AAPM-TG18
WEEE
DIN V6868-57
Physical
Dimensions (W x H x D) With Stand: 21.9 x 14.9-20.8 x 9" (556.3 x 378.5-528.3 x 228.6 mm)
Without Stand: 21.9 x 14.3 x 3.3" (556.3 x 363.2 x 83.8 mm)
Weight With Stand: 22.5 lb (10.2 kg)
Without Stand:15 lb (6.8 kg)
Packaging Info
Package Weight 22.5 lb
The user manual for the NEC 24" Medical Review Display with Front Sensor MD242C2 can be downloaded in .pdf format if it did not come with your new medical diagnostic displays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC medical diagnostic displayss, where you can use our link to download the user manual for the NEC 24" Medical Review Display with Front Sensor MD242C2.
