User manual NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV

Operating instructions and pdf manual for use - NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV User manual, User manual NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV, NEC, 30, Wide, Gamut, LED, Desktop, Monitor, PA302W-BK-SV,

User manual for NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
NEC 30
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
NEC 30 NEC 30
Click to enlarge image
We recommend checking out our discussion threads on the NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV, which address similar problems with connecting and setting up Computer Monitors NEC.


User manual for the NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV

The user manual for the NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

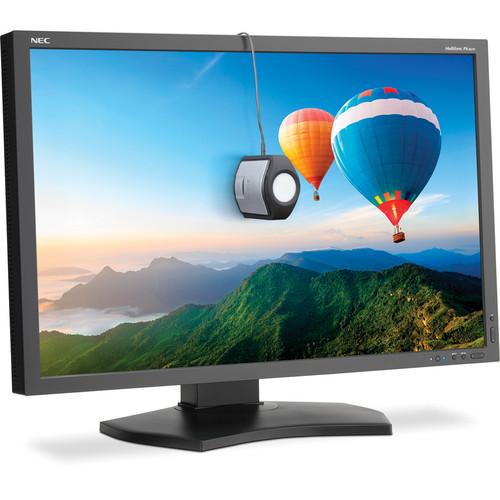

The black 30" Wide Gamut LED Desktop Monitor with SpectraView II from NEC is an ultimate desktop display for color-critical applications. The innovative GB-R LED backlight provides 99.3% coverage of the Adobe RGB color space while consuming up to 44% less power than comparable CCFL backlights. The monitor is equipped with the SpectraView II color calibration solution. In addition, it utilizes a high-performance AH-IPS LCD panel combined with the SpectraSensor Pro Color Calibration Sensor.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC 30Download user manual for NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV
(PDF file, 5.33 MB)
Additional parameters of the NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV:
Specifications
    Display
    Viewable Image Size 29.8" (756.9 mm)
    Panel Type IPS
    Aspect Ratio 16:10
    Native Resolution 2560 x 1600
    Pixel Pitch 0.25 mm
    Pixels Per Inch 101 at native resolution
    Backlight Type GB-R LED
    PWM Frequency 49 kHz
    Brightness 340cd/m²
    Contrast Ratio Typical: 1000:1
    Response Time 6 ms
    Viewing Angle (H/V) 178°/178° (89U/89D/89L/89R) at CR≥10
    Color Gamut Adobe RGB Coverage: 99.3%, Size: 108.6%
    NTSC Coverage: 94.8%, Size: 103.7%
    sRGB: Coverage: 146.4%, Size: 100%
    Lookup Table 14-bit (3D)
    Displayable Colors 1.07 billion out of 4.3 trillion
    Synchronization Range Horizontal: Digital: 31.5-98.7 kHz
    Vertical: 50-85 Hz
    Connectors
    Input DisplayPort, Mini DisplayPort, HDMI, Dual-Link DVI-D, USB Hub (Up: 2, Down: 3) with Display Sync Pro
    Power
    Consumption in On Mode Typical: 87 W
    Consumption in Power Saving Mode 1.4 W
    Environmental
    Operating Temperature 41 to 95°F (5 to 35°C)
    Storage Temperature 14 to 140°F (-10 to 60°C)
    Operating Humidity 20 to 80%
    Storage Humidity 10 to 85%
    Operating Altitude 16,404' (5000 m)
    Storage Altitude 40,000' (12,192 m)
    General
    VESA Compatibility 100 x 100 mm, 200 x 100 mm
    Software NaViSet Administrator 2 For more information Click Here
    MultiProfiler software
    GammaComp MD QA software
    SpectraView software
    Stand Adjustable with locking base
    Tilt / Swivel / Pivot Yes
    RoHS Compliant Yes
    Dimensions (W x H x D) With Stand: 27.1 x 18.4-24.3 x 11.9" (688.3 x 466.4-616.4 x 301.6 mm)
    Without Stand: 27.1 x 17.6 x 3.2" (688.0 x 446.8 x 82.0 mm)
    Weight With stand: 37.5 lb (17 kg)
    without Stand:23.6 lb (10.7 kg)
    Packaging Info
    Package Weight 51.05 lb
    Box Dimensions (LxWxH) 32.75 x 24.9 x 16.75"
    Picture by Picture
    Picture by Picture
    How to Load an ICC Profile
    Product Demo
    IPS Panel
    How to Use the DisplaySyncPro KVM
    How to Calibrate with SpectraView
    DisplaySync Pro
    Auto Image Rotation
    The user manual for the NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV.

    The user manual lists all of the functions of the NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC 30" Wide Gamut LED Desktop Monitor PA302W-BK-SV. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
