User manual NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK

Operating instructions and pdf manual for use - NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK User manual, User manual NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK, NEC, AS193i, AccuSync, 19, Value, LED, Backlit, IPS, L


User manual for NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK

NEC AS193i AccuSync 19
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
  • Price: 170 USD
We recommend checking out our discussion threads on the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK

The user manual for the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

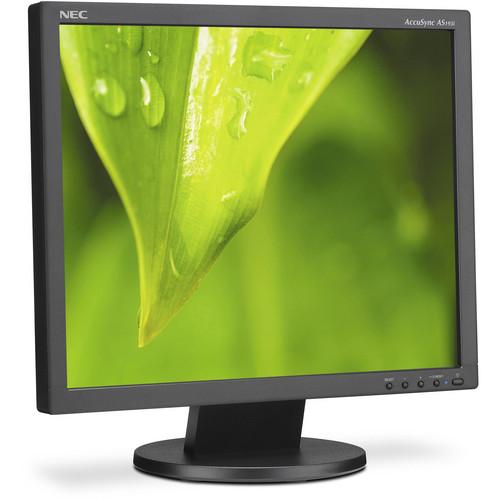

The AS193i AccuSync 19" Value LED Backlit IPS LCD Desktop Monitor from NEC is an LED-backlit IPS LCD desktop monitor that enhances desktop computing with eco-friendly benefits. This value-driven model touts features such as an IPS panel for image performance, ECO Mode to extend the life of the display, tilt adjustability, and Intelligent Power Manager.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC AS193i AccuSync 19Download user manual for NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK
(PDF file, 3.81 MB)
Additional parameters of the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK:
Specifications
Display
Panel Technology IPS
Viewable Image Size 19.0" (48.3 cm)
Aspect Ratio 5:4
Native Resolution 1280 x 1024
Pixel Pitch 0.29 mm
Pixels Per Inch 86 @ native resolution
Backlight Type W-LED
Brightness 250 cd/m2 (typical)
Contrast Ratio 1000:1 (typical)
Viewing Angle Vertical: 178°
Horizontal:178°
(89U/89D/89L/89R) @ CR>10 (typical)
Response Time 14 ms (typical)
Displayable Colors More than 16.7 million
Synchronization Range
Horizontal 31.5 - 81.1 kHz (Analog/Digital)
Vertical 56 - 76 Hz
Input Signal
Video Analog RGB 0.7 Vp-p/75 Ohms
Sync Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3 Vp-p negative 0.7 Vp-p positive)
Connectors
Input Connectors DVI-D, VGA 15-pin D-sub
Power Consumption (typical)
On 18 W
Power Saving Mode 0.15 W
Environmental Conditions
Operating Temperature 41 to 95°F (5 to 35°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity 20 to 80%
Storage Humidity 10 to 85%
Operating Altitude 6562' (2000 m)
Storage Altitude 40,000' (12,192 m)
Other Specifications
VESA Compatibility 100 x 100 mm
Environmental Compliance ENERGY STAR: 6.0
TCO: 6.0
EPEAT: Silver
RoHS Compliant: Yes
Dimensions (WxHxD) With Stand: 16.2 x 15.9 x 8.1" (41.2 x 40.4 x 20.6 cm)
Without Stand: 16.2 x 13.4 x 2.7" (41.2 x 34.0 x 6.9 cm)
Weight With Stand: 8.6 lb (3.9 kg)
Without Stand: 7.5 lb (3.4 kg)
Packaging Info
Package Weight 11.5 lb
Box Dimensions (LxWxH) 19.0 x 17.6 x 6.8"
The user manual for the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK.

The user manual lists all of the functions of the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC AS193i AccuSync 19" Value LED Backlit IPS LCD AS193I-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
