User manual NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK

Operating instructions and pdf manual for use - NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK User manual, User manual NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK, NEC, EA224WMI-BK, 22, Widescreen, LED, Backlit, IPS, EA2


User manual for NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
NEC EA224WMI-BK 22
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK

The user manual for the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

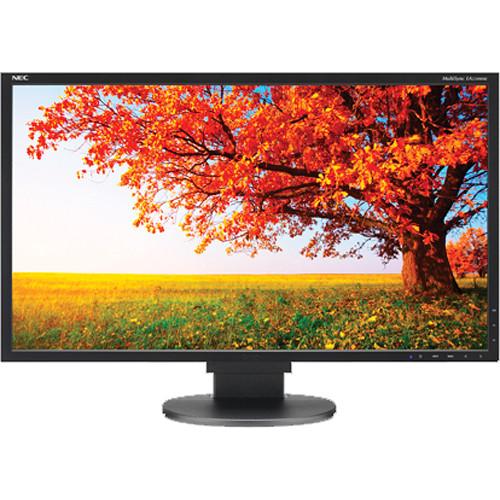

The EA224WMI-BK 22" Widescreen LED Backlit IPS Monitor from NEC is an IPS panel providing wide viewing angles, color consistency, and image accuracy. With LED backlight technology you can take advantage of a thinner, lighter design. The EA224WMI-BK comes equipped with DisplayPort, HDMI, DVI-D, and VGA D-Sub inputs as well as an integrated 4-port USB 2.0 hub. With touch-sensitive controls you can make necessary adjustments to the picture quality of your display, or take advantage of smart sensing technology including ambient light and human sensors to automatically determine the proper display brightness. For multi-screen configurations you can utilize the ControlSync feature allowing setup of up to six MultiSync EA Series monitors.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC EA224WMI-BK 22Download user manual for NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK
(PDF file, 2.78 MB)
Additional parameters of the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK:
Panel/Display
Type LED Backlit IPS Flat Panel Display
Viewable Size 21.5"
Brightness 250cd/m²
Contrast Ratio 1,000:1
Viewing Angle Horizontal: 178°
Vertical: 178°
Pixel Dot Pitch 0.25mm
Response Time 6ms (with overdrive)
Panel Life Not specified by manufacturer
Colors Supported More than 16.7 million
Signal
Internal Interface Analog/Digital
Frequency Not specified by manufacturer
Sync Type Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
Resolution 1920 x 1080
Input/Output Connectors
Analog VGA 15-pin D-Sub
Digital DisplayPort, HDMI, DVI-D
Audio Input Not specified by manufacturer
Headphone Jack Yes
Hub Ports 4 x USB Ports
Speakers Integrated Speakers
Mount VESA Mount Compatible
Controls
Buttons Touch Sensitive OSD Controls
On-Screen Display Yes
Auto Configuration Yes
Touch Screen No
Tilt/Swivel Range Tilt/Swivel Capable (Range not specified by manufacturer)
Security Not specified by manufacturer
Compliant Standards Energy Star 5.1, TCO 5.2, EPEAT Gold, RoHS
System Requirements Computer with DisplayPort, HDMI, DVI-D, or VGA port
Power Requirements Power Consumption:
On: 26W
Power Savings Mode: 0.43W
Environmental Requirements Operating Temperature: 41-95°F (5-35°C)
Operating Humidity: 20-80%
Operating Altitude: 6562 ft. / 2000m
Storage Temperature: 14-140°F / (-10-60°C)
Storage Humidity: 10-85%
Storage Altitude: 40,000 ft. / 12,192m
Dimensions (WxHxD) With Stand: 20 x 14.6-19.7 x 8.6" (507.4 x 370.2-500.2 x 218 mm)
Without Stand: 20 x 11.9 x 2.4" 507.4 x 301.1 x 60.5 mm)
Weight With Stand: 13.2 lb (6 kg)
Without Stand: 8.2 lb (3.7 kg)
Packaging Info
Package Weight 17.4 lb
Box Dimensions (LxWxH) 23.0 x 18.0 x 11.0"
The user manual for the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK.

The user manual lists all of the functions of the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC EA224WMI-BK 22" Widescreen LED Backlit IPS EA224WMI-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
