User manual for the NEC EA274WMI-BK 27" Widescreen LED Backlit IPS EA274WMI-BK

The user manual for the NEC EA274WMI-BK 27" Widescreen LED Backlit IPS EA274WMI-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

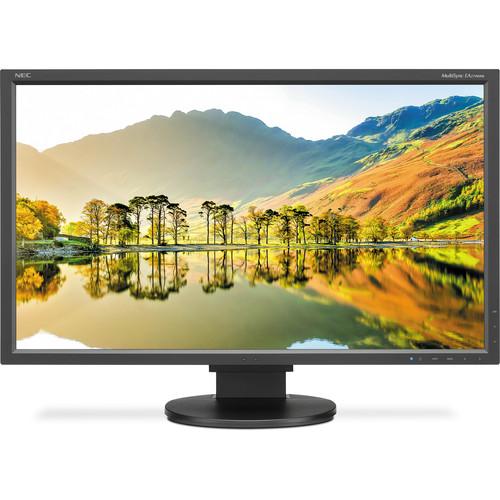

The EA274WMI-BK 27" Widescreen LED Backlit IPS Monitor from NEC features a widescreen 16:9 aspect ratio with a 2560 x 1440 native resolution. In addition to the Full HD resolution, this IPS (in-plane switching) monitor supports 178° horizontal and vertical viewing angles allowing for enhanced viewing from nearly angle with reduced distortion. This display supports a 1,000:1 contrast ratio and 6 ms response time further enhancing your photos, videos, and other content.

On the back of the monitor you'll find DisplayPort, HDMI, DVI-D, and VGA connectors making it simple to connect this monitor to a variety of PC configurations. Once configured, you can tilt, swivel, pivot, and adjust the height of the monitor for enhanced viewing comfort. Along with enhanced viewing comfort, the monitor detects the ambient light to adjust the display's brightness for reduced power consumption.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC EA274WMI-BK 27" Widescreen LED Backlit IPS EA274WMI-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC EA274WMI-BK 27Download user manual for NEC EA274WMI-BK 27" Widescreen LED Backlit IPS EA274WMI-BK
(PDF file, 3.14 MB)
Additional parameters of the NEC EA274WMI-BK 27" Widescreen LED Backlit IPS EA274WMI-BK:
Specifications
    Panel Technology IPS
    Viewable Image Size 27"
    Aspect Ratio 16:9
    Native Resolution 2560 x 1440
    Pixel Pitch 0.23 mm
    Pixels Per Inch 109 @ native resolutions
    Backlight Type W-LED
    (PWM Frequency 20 kHz)
    Brightness 350 cd/m² (typical)
    Contrast Ratio 1,000:1 (typical)
    Viewing Angles Horizontal: 178°
    Vertical: 178°
    (89U/89D/89L/89R) @ CR>10
    Response Time 6 ms (typical)
    Displayable Colors More than 16.7 million colors
    Synchronization Range Horizontal
    31.5-83 KHz
    Vertical
    56-75 Hz
    Input Signal Video
    RGB 0.7 Vp-p/75 Ohms
    Sync
    Separate Sync: TTL Level (Positive/Negative)
    Composite Sync: TTL Level (Positive/Negative)
    Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
    Input Connectors DisplayPort, HDMI, DVI-D, VGA
    Power Consumption On
    57 W
    Power Savings Mode
    0.8 W
    VESA Compatibility 100 x 100 mm
    Operating Temperature 41 to 95°F / 5 to 35°C
    Operating Humidity 20 to 80%
    Operating Altitude 6,563 ft / 2,000 m
    Storage Temperature 14 to 140°F / -10 to 60°C
    Storage Humidity 10 to 85%
    Storage Altitude 40,000 ft / 12,192 m
    Environmental Compliance ENERGY STAR 6.0, TCO 6.0, EPEAT Gold, RoHS
    Dimensions (WxHxD) With Stand: 25.2 x 16.5 - 21.6 x 9.1" / 63.9 x 41.8 - 54.8 x 23.0 cm
    Without Stand: 25.2 x 14.9 x 2.6" / 63.9 x 37.8 x 6.7 cm
    Weight With Stand: 19.2 lb / 8.7 kg
    Without Stand: 12.8 lb / 5.8 kg
    Packaging Info
    Package Weight 24.95 lb
    Box Dimensions (LxWxH) 28.0 x 20.6 x 11.2"
    The user manual for the NEC EA274WMI-BK 27" Widescreen LED Backlit IPS EA274WMI-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC EA274WMI-BK 27" Widescreen LED Backlit IPS EA274WMI-BK.

    The user manual lists all of the functions of the NEC EA274WMI-BK 27" Widescreen LED Backlit IPS EA274WMI-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC EA274WMI-BK 27" Widescreen LED Backlit IPS EA274WMI-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
