User manual for the NEC MD302C6-A1 30" / 6 MP MultiSync Diagnostic MD302C6-A1
The user manual for the NEC MD302C6-A1 30" / 6 MP MultiSync Diagnostic MD302C6-A1 provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.

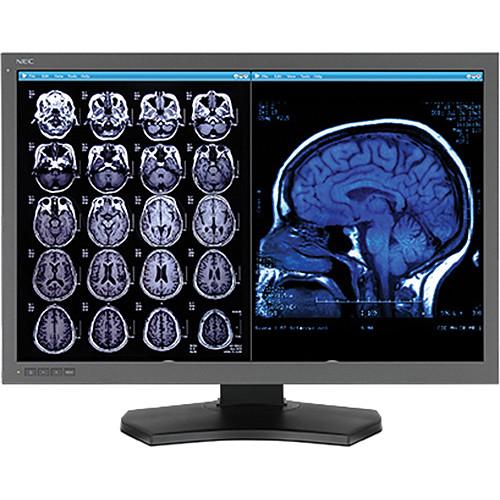

The MD302C6-A1 30" / 6 MP MultiSync Diagnostic Display with AMD FirePro W5100 from NEC is an LED-backlit, color diagnostic display that has been designed for the needs of healthcare professionals in medical imaging and multi-modality PACS. This 6-megapixel model has an IPS panel to help provide precise grayscale reproduction and wide viewing angles of 170°, as well as an integrated front sensor which helps to constantly monitor and adjust brightness to maintain the factory DICOM GSDF calibration. This display also has a three-way ergonomic stand including height-adjust, swivel, and tilt. The display also offers both DisplayPort and DVI-D inputs, a built-in two-port USB hub, and 16-bit lookup tables (LUTs) with 1,024 levels of gray that help provide smooth images and assist with hardware calibration.
This MultiSync display includes power cord, a DisplayPort cable, a DVI-D Dual Link cable, a USB cable, and an AMD FirePro W5100 graphics card with 4GB GDDR5 RAM. The AMD FirePro W5100 also has four DisplayPort outputs.
If you own a NEC medical diagnostic displays and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the NEC MD302C6-A1 30" / 6 MP MultiSync Diagnostic MD302C6-A1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NEC MD302C6-A1 30" / 6 MP MultiSync Diagnostic MD302C6-A1:
| Viewable Image Size || 30.0" / 76.2 cm |
| Color Type || Color |
| MegaPixels || 6 MP |
| Native Resolution || 3280 x 2048 |
| Pixel Pitch || 0.01" / 0.20 mm |
| Pixels Per Inch || 128.9 @ native resolution |
| Brightness || 400 cd/m2 calibrated |
800 cd/m2 max
| Contrast Ratio || 1,000:1 |
| Viewing Angle || 170° vertical & 170° horizontal (85U/85D/85L/85R) @ CR > 10 |
| Response Time || 15 ms (black to white) |
| Lookup Table || 16-bit |
| Displayable Colors || 1.07 billion colors out of 4.3 trillion or 1024 shades of gray out of 4096 (10-bit DisplayPort input) |
16.7 million colors out of 1.05 billion color palette or 256 shades of gray out of 4096 (DVI-D input)
| Sensors || Front |
| Horizontal (Analog/Digital) || 31.5 - 126.5 kHz (Digital only) |
| Vertical || 30 - 70 Hz |
| Input/Output Terminals || Digital: 2 x DisplayPort and 2 x DVI-D |
| Operating Temperature || 41 - 95°F / 5 - 35°C |
| Operating Humidity || 20 - 80% |
| Operating Altitude || -1,312 - 9,843' / -400 - 3,000 m |
| Storage Temperature || -4 - 140°F / -20 - 60°C |
| Storage Humidity || 10 - 85% |
| Storage Altitude || -1,312 x 32,808' / -400 x 10,000 m |
| VESA Hole Configuration Specifications || 8 x 4" / 200 x 100 mm |
| Dimensions || Net (with stand): 27.4 x 19.2 x 11.9" / 695.6 x 486.5 x 301.6 mm |
Net (without stand): 27.4 x 18.4 x 3.9" / 695.6 x 467.1 x 100.0 mm
| Weight || Net Weight (with stand): 38.8 lb / 17.6 kg |
Net Weight (without stand): 25.1 lb / 11.4 kg
The user manual for the NEC MD302C6-A1 30" / 6 MP MultiSync Diagnostic MD302C6-A1 can be downloaded in .pdf
format if it did not come with your new medical diagnostic displays, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other NEC users keep a unique electronic library
for NEC medical diagnostic displayss,
where you can use our link to download the user manual for the NEC MD302C6-A1 30" / 6 MP MultiSync Diagnostic MD302C6-A1.
The user manual lists all of the functions of the NEC MD302C6-A1 30" / 6 MP MultiSync Diagnostic MD302C6-A1,
all the basic and advanced features and tells you how to use the medical diagnostic displays.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from NEC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the NEC MD302C6-A1 30" / 6 MP MultiSync Diagnostic MD302C6-A1. User manuals are also
available on the NEC website under Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.
