User manual NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1

Operating instructions and pdf manual for use - NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1 User manual, User manual NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1, NEC, MD302C6-N1, 30, /, 6, MP, MultiSync, Diagnostic, MD30


User manual for NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1

NEC MD302C6-N1 30
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays
  • Safety instructions
  • Startup and operation of the medical diagnostic displays
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
  • Price: 10 USD

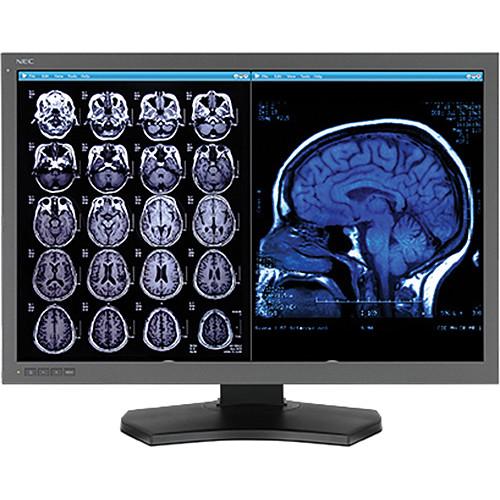

NEC MD302C6-N1 30 NEC MD302C6-N1 30
Click to enlarge image

We recommend checking out our discussion threads on the NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1, which address similar problems with connecting and setting up Medical Diagnostic Displays NEC.



User manual for the NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1

The user manual for the NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1 provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.

The MD302C6-N1 30" / 6 MP MultiSync Diagnostic Display with NVIDIA Quadro K2200 from NEC is an LED-backlit, color diagnostic display that has been designed for the needs of healthcare professionals in medical imaging and multi-modality PACS. This 6-megapixel model has an IPS panel to help provide precise grayscale reproduction and wide viewing angles of 170°, as well as an integrated front sensor which helps to constantly monitor and adjust brightness to maintain the factory DICOM GSDF calibration. This display also has a three-way ergonomic stand including height-adjust, swivel, and tilt. The display also offers both DisplayPort and DVI-D inputs, a built-in two-port USB hub, and 16-bit lookup tables (LUTs) with 1,024 levels of gray that help provide smooth images and assist with hardware calibration.

This MultiSync display includes power cord, a DisplayPort cable, a DVI-D Dual Link cable, a USB cable, and an NVIDIA Quadro K2200 graphics card with 4GB GDDR5 RAM. The NVIDIA Quadro K2200 also has two DisplayPorts and one DVI-I port.
If you own a NEC medical diagnostic displays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1:
Specifications
    Display
    Viewable Image Size 30.0" / 76.2 cm
    Color Type Color
    MegaPixels 6 MP
    Native Resolution 3280 x 2048
    Pixel Pitch 0.01" / 0.20 mm
    Pixels Per Inch 128.9 @ native resolution
    Brightness 400 cd/m2 calibrated
    800 cd/m2 max
    Contrast Ratio 1,000:1
    Viewing Angle 170° vertical & 170° horizontal (85U/85D/85L/85R) @ CR > 10
    Response Time 15 ms (black to white)
    Lookup Table 16-bit
    Displayable Colors 1.07 billion colors out of 4.3 trillion or 1024 shades of gray out of 4096 (10-bit DisplayPort input)

    16.7 million colors out of 1.05 billion color palette or 256 shades of gray out of 4096 (DVI-D input)
    Sensors Front
    Synchronization Range
    Horizontal (Analog/Digital) 31.5 - 126.5 kHz (Digital only)
    Vertical 30 - 70 Hz
    Connectivity
    Input/Output Terminals Digital: 2 x DisplayPort and 2 x DVI-D
    Power Consumption
    On 173.5 W
    Environmental Conditions
    Operating Temperature 41 - 95°F / 5 - 35°C
    Operating Humidity 20 - 80%
    Operating Altitude -1,312 - 9,843' / -400 - 3,000 m
    Storage Temperature -4 - 140°F / -20 - 60°C
    Storage Humidity 10 - 85%
    Storage Altitude -1,312 x 32,808' / -400 x 10,000 m
    Physical Specifications
    VESA Hole Configuration Specifications 8 x 4" / 200 x 100 mm
    Dimensions Net (with stand): 27.4 x 19.2 x 11.9" / 695.6 x 486.5 x 301.6 mm
    Net (without stand): 27.4 x 18.4 x 3.9" / 695.6 x 467.1 x 100.0 mm
    Weight Net Weight (with stand): 38.8 lb / 17.6 kg
    Net Weight (without stand): 25.1 lb / 11.4 kg
    The user manual for the NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1 can be downloaded in .pdf format if it did not come with your new medical diagnostic displays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC medical diagnostic displayss, where you can use our link to download the user manual for the NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1.

    The user manual lists all of the functions of the NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1, all the basic and advanced features and tells you how to use the medical diagnostic displays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC MD302C6-N1 30" / 6 MP MultiSync Diagnostic MD302C6-N1. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.
