User manual NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK

Operating instructions and pdf manual for use - NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK User manual, User manual NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK, NEC, MultiSync, E231W-BK, 23, Widescreen, LCD, Compute


User manual for NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
NEC MultiSync E231W-BK 23
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
  • Price: 218 USD
We recommend checking out our discussion threads on the NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK

The user manual for the NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

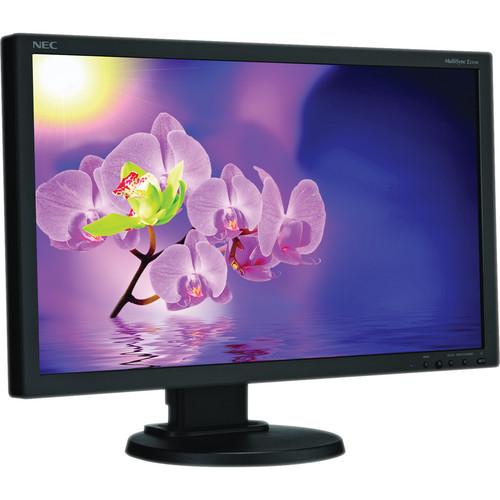

The MultiSync E231W-BK 23" Widescreen LCD Computer Display from NEC is an eco-conscious computer monitor with VGA, DVI, and DisplayPort inputs. It features a 16:9 aspect ratio with a native resolution of 1920 x 1080 -- equal to that of 1080p video. The LED backlit design reduces power consumption and enhances image quality.

The monitor boasts a 1000:1 contrast ratio, 170°/160° viewing angles, and 250cd/m² brightness. The quick 5ms response time prevents image blurring and ghosting, making it excellent for watching fast-paced video. The display's stand is capable of height, pivot, tilt, and swivel adjustment.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC MultiSync E231W-BK 23Download user manual for NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK
(PDF file, 2.75 MB)
Additional parameters of the NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK:
Specifications
    Panel/Display
    Type LCD Flat Panel
    Viewable Size 23"
    Brightness 250cd/m²
    Contrast Ratio 1000:1 (Typical); 25,000:1 (Dynamic)
    Viewing Angle 170° horizontal, 160° vertical
    Pixel Dot Pitch 0.265mm
    Response Time 5ms
    Panel Life Not Specified by Manufacturer
    Colors Supported 16.7 million
    Signal
    Internal Interface Analog/Digital
    Frequency Horizontal: 31.5-83kHz
    Vertical: 56-75Hz
    Sync Type Separate/Composite Sync: TTL Level (Positive/Negative), Composite Sync on Green (0.3Vp-p negative 0.7Vp-p positive)
    Resolution 1920 x 1080
    Input/Output Connectors
    Analog 1x VGA
    Digital 1x DVI-D
    1x DisplayPort
    Audio Input None
    Headphone Jack None
    Hub Ports None
    Speakers None
    Mount Desktop, Wall Mount (VESA 100 x 100mm)
    Controls
    Buttons Menu, 4-Direction Key, Select, Reset/ECO MODE, Power
    On-Screen Display Yes
    Auto Configuration Yes
    Touch Screen No
    Tilt/Swivel Range Tilt: Yes
    Swivel: Yes
    Height: 4.3" (11cm)
    Pivot: Yes
    Security None
    Compliant Standards ISO 13406-2 Class II, Windows Vista Premium-certified, Dynamic Video Mode, HDCP, ECO Mode, EPEAT Silver, ENERGY STAR 5.0, TCO 5.0, RoHs
    System Requirements Computer with VGA, DisplayPort, or DVI output
    Power Requirements AC: 100-120VAC/220-240VAC
    Consumption: 28W (Typical), 23W (ECO Mode), 0.34W (Sleep)
    Environmental Requirements Operating
    Temperature: 41-95°F (5-35°C)
    Humidity: 20-80%
    Altitude: 0-6562' (0-2000 m)

    Storage
    Temperature: 14-140°F (-10-60°C)
    Humidity: 10-85%
    Altitude: 0-40,000' (0-12,192 m)
    Dimensions (WxHxD) With Stand: 21.7 x 15-19.4 x 8.4" (55 x 38.2-49.2 x 21.4cm)
    Without Stand: 21.7 x 13 x 2.8" (55 x 33 x 7.1mm)
    Weight With Stand: 13.7 lb (6.2kg)
    Without Stand: 9.3 lb (4.2kg)
    Packaging Info
    Package Weight 18.0 lb
    Box Dimensions (LxWxH) 21.7 x 13.0 x 2.8"
    The user manual for the NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK.

    The user manual lists all of the functions of the NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC MultiSync E231W-BK 23" Widescreen LCD Computer E231W-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
