User manual NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK

Operating instructions and pdf manual for use - NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK User manual, User manual NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK, NEC, MultiSync, EA244UHD, 23.8, 4K, IPS, LED, Monitor,


User manual for NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
NEC MultiSync EA244UHD 23.8
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK

The user manual for the NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

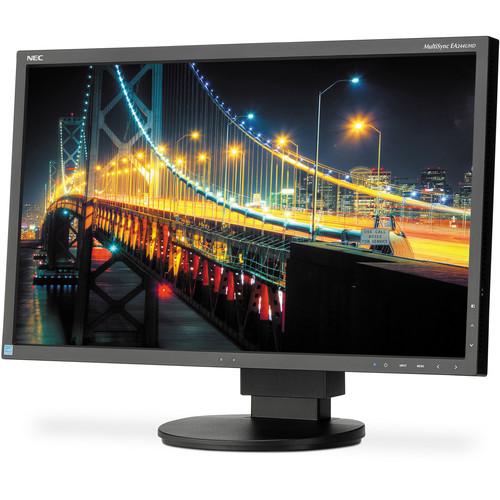

The MultiSync EA244UHD 23.8" 4K IPS LED Monitor from NEC is an ultra high definition 3840 x 2160 display with the ability to display 99.3% Adobe RGB, 94.8% NTSC, and 146.4% sRGB for color fidelity. The monitor features 350 cd/m² brightness and a contrast ratio of 1,000:1 along with in-plane switching technology that allows for wide 178°/178° viewing angles. The EA244UHD also has a response time of 6 ms as well as human and ambient light sensors for automatic energy saving capabilities.

ColorSync ports are available for connecting up to 5 monitors together and there are three USB 3.0 ports for additional connectivity options. There are also two 1W speakers for audio output as well as audio in and headphone out jacks. Other input connectors include two DVI-D, two DisplayPort, one standard HDMI, and one HDMI/MHL port for mobile devices. The display is also compatible with 100 x 100mm VESA mounts.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC MultiSync EA244UHD 23.8Download user manual for NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK
(PDF file, 4.28 MB)
Additional parameters of the NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK:
Panel/Display
Type IPS LED
Viewable Size 23.8" (60.5 cm)
Brightness 350 cd/m²
Contrast Ratio 1,000:1
Dynamic: 15,000:1
Viewing Angle 178°/178°
Pixel Dot Pitch 0.137 mm
Pixels Per Inch 185 ppi at native resolution
Response Time 6 ms (gray to gray)
Colors Supported DisplayPort/HDMI 10-bit: 1,073,741,824
DVI: 16,777,216
Color Gamut Adobe RGB Coverage/Size: 99.3%/108.6%
NTSC: 94.8%/103.7%
sRGB: 146.4%/100%
Signal
Input Signal Analog RGB 0.7 Vp-p/75 ohms
Frequency Horizontal: 31.5-134 kHz
Vertical: 30-75 Hz
Sync Type Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: 0.3Vp-p negative 0.7Vp-p positive
Resolution 3840 x 2160
Input/Output Connectors
Digital 2 x DVI-D
2 x DisplayPort
1 x HDMI
1 x HDMI/MHL
Other Ports ControlSync 2.5 mm In
ControlSync 2.5 mm Out (Up to 5 sub monitors)
Audio Input 3.5 mm jack (Stereo L/R 500mV rms 20 Kohm)
DisplayPort (PCM 2ch 32, 44.1, 48 kHz in 16/20/24-bit)
HDMI (PCM 2ch 32, 44.1, 48 kHz in 16/20/24-bit)
Headphone Jack Yes, 3.5 mm (Impedance: 32 ohm)
Hub Ports 3 x USB 3.0 (0.9 A per port)
Speakers 2 x 1W
Mount 100 x 100 mm VESA compatible
Controls
Compliant Standards TCO Edge Certified 1.2
ENERGY STAR
EPEAT Gold
RoHS
Power Requirements 100-240 VAC, 50/60 Hz, 1.1-0.5 A
Power Consumption On: 79 W
Power Savings Mode: 0.33 W
Operating Conditions Temperature: 41 to 95°F (5 to 35°C)
Humidity: 20 to 80%
Altitude: 0 to 6,562' (0 to 2,000 m)
Storage Conditions Temperature: 14 to 140°F (-10 to 60°C)
Humidity: 10 to 85%
Altitude: 0 to 40,000' (0 to 12,192 m)
Dimensions (WxHxD) Landscape: 22.0 x 15.2-20.3 x 8.6" (55.8 x 38.7-51.7 x 21.8 cm)
Portrait: 13.2 x 24.8 x 8.6" (33.4 x 57.7-62.9 x 21.8 cm)
Weight With Stand: 19.2 lb (8.7 kg)
Without Stand: 11.0 lb (5.0 kg)
Packaging Info
Package Weight 21.85 lb
Box Dimensions (LxWxH) 25.354 x 20.079 x 10.551"
The user manual for the NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK.

The user manual lists all of the functions of the NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC MultiSync EA244UHD 23.8" 4K IPS LED Monitor EA244UHD-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
