User manual NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X

Operating instructions and pdf manual for use - NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X User manual, User manual NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X, NEC, NP-M363X, 3600-Lumen, XGA, DLP, Projector, NP-M363X,


User manual for NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X

NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information

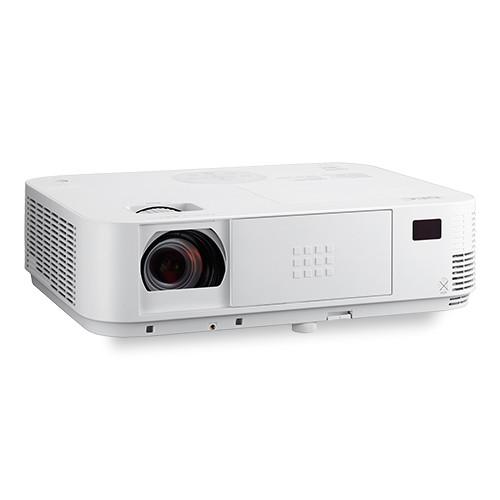

NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X
Click to enlarge image

We recommend checking out our discussion threads on the NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X, which address similar problems with connecting and setting up Multimedia Projectors NEC.



User manual for the NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X

The user manual for the NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Brighten up your presentations with the NEC NP-M363X 3600-Lumen XGA DLP Projector. Whether in a boardroom or a classroom, its 3600-lumen brightness, combined with the 10,000:1 dynamic contrast ratio, virtually guarantees a viewable image even in areas where you can't control the ambient light. For a more immersive experience, you can watch 3D content with separately-sold DLP Link 3D glasses.

The NP-M363X offers a throw ratio of 1.5 to 2.5:1 with 1.7x zoom. Its connections include VGA, composite video via RCA, and two HDMI for video, and a microphone, RCA stereo, and an ⅛" audio input handle sound. Presentations can also be played via USB from an external drive for added versatility. The projector has a 20W mono speaker built in and includes an RGB cable, a carrying case, and a remote control.
If you own a NEC multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363XDownload user manual for NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X
(PDF file, 6.41 MB)
Additional parameters of the NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X:
Specifications
Image Display
Display System 0.55" / 1.40 cm DMD DLP
Native Resolution XGA - 1024 x 768
Supported Resolutions Maximum: WUXGA - 1920 x 1200
Supported Formats Photo: JPG
Format NTSC 3.58, 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 720p
1080i
1080p
Pixels 786,432
Brightness Normal Mode: 3600 Lumens
Projection Angle 10.5 - 17.6°
Uniformity Not Specified By Manufacturer
Offset Not Specified By Manufacturer
Aspect Ratio Native: 4:3
Supported: 16:9
Supported: 15:9
Supported: 16:10
Contrast Ratio Not Specified By Manufacturer
Dynamic Contrast Ratio 10000:1
DLP Link 3D Yes
Supported 3D Formats Side by Side
Top Bottom
Frame Sequential
Frame Packing
Color Range 1.07 Billion
Scan Horizontal: 15 - 100 kHz
Vertical: 50 - 120 Hz
Lens
Focus Manual
Lens F 2.4 - 3.1 (f = 17.09 - 29.05 mm)
Lens Shift Not Specified By Manufacturer
Zoom Manual: 1.7x
Throw Distance 3.0 - 52.4' (0.9 - 16.0 m)
Throw Ratio 1.5 - 2.5:1
Projection Size 30 - 300" / 76.20 - 762.00 cm (Max Diagonal: 300" / 762.00 cm)
Features
Keystone Correction Yes, Horizontal: ± 25°
Yes, Vertical: ± 30°
Picture-in-Picture Not Specified By Manufacturer
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Built-in Speaker Yes, 20 W (Mono)
Internal Memory Not Specified By Manufacturer
Closed Captioning Yes
Picture Modes Blackboard, Cinema, Presentation, sRGB
Input/Output Connectors
Inputs/Outputs 1x 15-pin VGA Video (Input)
2x HDMI Audio/Video (Input)
1x USB Type-A Female (Input)
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Antenna (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Microphone (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RS-232C Control (Input)
1x Ethernet Control (Input)
1x VESA 3D Sync Control
1x USB Control (Input)
Wireless LAN None
Sync Compatibility Separate Sync
Composite Sync
Sync on Green
General
Lamp (Bulb) Not Specified By Manufacturer
Replacement Lamp NP29LP
Light Source Not Specified By Manufacturer
Color Temperature Not Specified By Manufacturer
Watts 225 W
Eco Mode: 135 W
Life Normal Mode: 3500 Hours
Eco Mode: 8000 Hours
Fan Noise Normal Mode: 36 dB
Eco Mode: 31 dB
Maximum Pixel Clock Not Specified By Manufacturer
Remote Control Yes
Security Cable Lock Slot
Keypad Lock
Password Protection
System Requirements Not Specified By Manufacturer
Languages Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
Power Requirements 100-240 VAC, 50/60 Hz
Input Current 3.9 A / 1.5 A
DC Output Not Specified By Manufacturer
Heat Dissipation Not Specified By Manufacturer
Power Consumption Normal Mode: 316 W
Eco Mode: 205 W
Standby Mode: 2.6 W
Standby Mode (Eco): .2 W
Altitude 0 - 8000' (0 - 2438 m)
Temperature Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 122°F (-10 to 50°C)
Dimensions (WxHxD) 14.5 x 4.3 x 11.5" / 36.8 x 10.9 x 29.2 cm
Weight 7.7 lb / 3.49 kg
Packaging Info
Package Weight 12.15 lb
Box Dimensions (LxWxH) 17.7 x 14.9 x 8.9"
The user manual for the NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC multimedia projectorss, where you can use our link to download the user manual for the NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X.

The user manual lists all of the functions of the NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC NP-M363X 3600-Lumen XGA DLP Projector NP-M363X. User manuals are also available on the NEC website under A/V Presentation - Projectors - Multimedia Projectors.
