User manual for the NEC NP-P401W 4000-Lumen Widescreen Multi-Region NP-P401W
The user manual for the NEC NP-P401W 4000-Lumen Widescreen Multi-Region NP-P401W provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

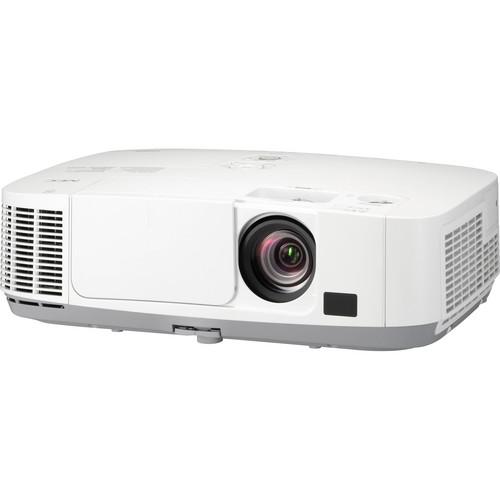

The NEC NP-P401W 4000-Lumen Widescreen Multi-Region Installation Projector features a WXGA 1280 x 800 native resolution. For connectivity, it affords dual HDMI inputs with HDCP, a USB viewer, a VGA input and more. It also supports both wireless LAN and wired LAN network connectivity. The projector provides 4000 lumens of brightness and a contrast ratio of 4000:1. The 6000 hour lamp life and filter life ensure a lower overall cost of ownership as well.
|
If you own a NEC multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the NEC NP-P401W 4000-Lumen Widescreen Multi-Region NP-P401W in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the NEC NP-P401W 4000-Lumen Widescreen Multi-Region NP-P401W:
| Display System | 0.59" / 14.99 mm Micro Lens Array (MLA) LCD | | Native Resolution | PC: WXGA - 1280 x 800
Mac: WXGA - 1280 x 800 | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
UXGA - 1600 x 1200 | | Format | NTSC 4.43
PAL 60, M, N
SECAM | | HDTV Compatibility | 1080p
1080i
720p
576p
576i
480p
480i | | Pixels | 1,024,000 | | Brightness | Normal Mode: 4000 Lumens
Eco Mode: 2680 Lumens | | Projection Angle | 0.0 - 9.8° (Tele)
0.0 - 16.5° (Wide) | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 4000:1 | | Scan | Horizontal: 15 - 100 kHz
Vertical: 50 - 120 Hz | | Focus | Manual | | Lens | F 1.7 - 2.1 (f = 17.4 - 29 mm) | | Zoom | 1.7x | | Throw Distance | 2.3 - 47.8' (0.7 - 14.6 m) | | Throw Ratio | 1.3 - 2.2:1 | | Projection Size | 25 - 300" / 63.50 - 762.00 cm | | Keystone Correction | Auto: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Projection Tilt Option | Yes | | Built-in Speaker | 16 W (Mono) | | Inputs/Outputs | 2x HDMI Audio/Video (Input)
1x 15-pin VGA Video (Input)
1x USB Type-A Female (Input)
1x RCA Composite Video (Input)
1x S-Video Video (Input)
1x RCA Stereo (L/R) Audio (Input)
2x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x 15-pin VGA Video (Output)
1x Ethernet LAN
1x USB Control
1x RS-232C Control
1x DDC/CI Control
1x IR Control | | Wireless LAN | Yes | | Sync Compatibility | Separate Sync
Composite Sync
Sync on Green | | Watts | 240 W
Eco Mode: 160 W | | Life | Normal Mode: 4000 Hours
Eco Mode: 6000 Hours | | Fan Noise | Normal Mode: 36 dB
Eco Mode: 30 dB | | Remote Control | Yes | | System Requirements | Windows
Mac | | Power Requirements | 100-240 VAC, 50/60 Hz | | Input Current | 3.9 A / 1.7 A | | Power Consumption | Normal Mode: 325 W
Eco Mode: 231 W
Standby Mode: 10 W
Power Saving Mode: .2 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 122°F (-10 to 50°C)
Humidity: 20 - 80% | | Dimensions (WxHxD) | 15.7 x 4.5 x 11.1" / 398.0 x 115.0 x 282.0 mm | | Weight | 9.0 lb / 4.08 kg | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 19.0 x 15.5 x 9.0" | |
The user manual for the NEC NP-P401W 4000-Lumen Widescreen Multi-Region NP-P401W can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other NEC users keep a unique electronic library
for NEC multimedia projectorss,
where you can use our link to download the user manual for the NEC NP-P401W 4000-Lumen Widescreen Multi-Region NP-P401W.
The user manual lists all of the functions of the NEC NP-P401W 4000-Lumen Widescreen Multi-Region NP-P401W,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from NEC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the NEC NP-P401W 4000-Lumen Widescreen Multi-Region NP-P401W. User manuals are also
available on the NEC website under A/V Presentation - Projectors - Multimedia Projectors.
