User manual NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL

Operating instructions and pdf manual for use - NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL User manual, User manual NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL, NEC, NP-PA622U-13ZL, 6200, Lumen, WUXGA, Profe

User manual for NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL

NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL, which address similar problems with connecting and setting up Multimedia Projectors NEC.


User manual for the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL

The user manual for the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

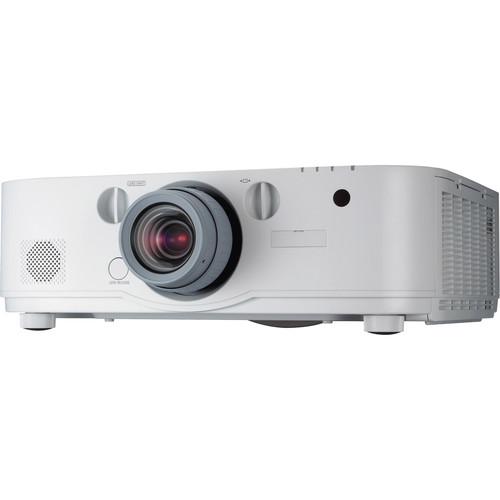

Enjoy high-performance and high-resolution images with the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional Installation LCD Projector with NP13ZL Lens. This professional projector features 6200 lumens of brightness and a 6,000:1 contrast ratio with auto iris. Additionally, the NP-PA622U-13ZL sports a WUXGA 1920 x 1200 native resolution for viewing detailed high-definition content. This projector is powered by an LCD display system, and the lamp features a long life of up to 4,000 hours. You can use the NP-PA622U-13ZL to project up to a 500" diagonal screen size, and it features a 1.50 to 3.02:1 throw ratio with the bundled NEC NP13ZL lens.

With VGA, DisplayPort, BNC component video, and two HDMI inputs, this projector is well equipped for a wide range of external video sources. As an added convenience, a VGA cable is included. An HDMI output is also available, which can be used to daisy chain up to 4 projectors. The NP-PA622U-13ZL is also equipped with an Ethernet port and supports HDBaseT connectivity . Other features include a 0.11W standby power consumption level, optional ceiling mount compatibility, and 64-step image magnification.
If you own a NEC multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZLDownload user manual for NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL
(PDF file, 8.87 MB)
Additional parameters of the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL:
Specifications
    • NP-PA622U 6200 Lumen WUXGA Professional Installation LCD Projector (No Lens)
      Image Display
      Display System 1-Chip 0.76" / 1.93 cm Micro Lens Array (MLA) LCD
      Native Resolution WUXGA - 1920 x 1200
      Supported Resolutions WUXGA - 1920 x 1200
      UXGA - 1600 x 1200
      SXGA+ - 1400 x 1050
      SXGA - 1280 x 1024
      XGA - 1024 x 768
      SVGA - 800 x 600
      VGA - 640 x 480
      Format NTSC 4.43
      PAL 60, M, N
      SECAM
      HDTV Compatibility 480i
      480p
      576i
      576p
      720p
      1080i
      1080p
      Brightness Normal Mode: 6200 Lumens
      Projection Angle 10.3 - 10.8° (Tele)
      13.7 - 14.5° (Wide)
      Aspect Ratio Not Specified By Manufacturer
      Contrast Ratio 2D — 6000:1
      Scan Horizontal: 15 - 153 kHz
      Vertical: 48 - 120 Hz
      Lens
      Focus Manual
      Lens Shift Vertical: -10%
      Vertical: +50%
      Horizontal: ±30%
      Throw Distance 2.5 - 68.5' (0.8 - 20.9 m)
      Projection Size 40 - 500" / 101.60 - 1270.00 cm
      Features
      Keystone Correction Yes, Vertical: ± 40°
      Yes, Horizontal: ± 40°
      Ceiling Mountable Yes
      Rear Screen Projection Yes
      Built-in Speaker Yes, 10 W (Mono)
      Closed Captioning Not Specified By Manufacturer
      Input/Output Connectors
      Inputs/Outputs 1x Ethernet Control
      1x USB Control
      2x HDMI Audio/Video (Input)
      1x HDMI Audio/Video (Output)
      1x DisplayPort Audio/Video (Input)
      1x 9-pin VGA Video (Input)
      2x 1/8" (3.5 mm) Mini Audio (Input)
      1x 1/8" (3.5 mm) Mini Audio (Output)
      1x VESA 3D Sync Video
      1x 5-BNC Video (Input)
      1x RS-232C Control
      1x IR Control
      Sync Compatibility Composite Sync
      Separate Sync
      Sync on Green
      General
      Replacement Lamp NP26LP
      Watts Normal Mode: 350 W
      Eco Mode: 264 W
      Life Normal Mode: 3000 Hours
      Eco Mode: 4000 Hours
      Fan Noise Normal Mode: 39 dB
      Eco Mode: 33 dB
      Remote Control Yes
      Security Cable Lock Slot
      Languages Not Specified By Manufacturer
      Power Requirements 100-240 VAC, 50/60 Hz
      Input Current 5.1 A
      Power Consumption Normal Mode: 460 W
      Eco Mode: 362 W
      Standby Mode: 7.4 W
      Standby Mode (Eco): .11 W
      Temperature Operating
      41 to 104°F (5 to 40°C)
      Humidity: 20 - 80%
      Storage
      -14 to 122°F (-25 to 50°C)
      Dimensions (WxHxD) 19.6 x 6.5 x 14.4" / 499.0 x 164.0 x 366.0 mm
      Weight 18.5 lb / 8.39 kg
      Packaging Info
      Box Dimensions (LxWxH) 23.25 x 19.25 x 10.0"
    • NP13ZL 1.5-3.0:1 Zoom Lens
      Lens Type Projector
      Throw Ratio 1.5-3.02:1
      Optical Zoom 2x
      Weight 1.9 lb. (0.9kg)
      Packaging Info
      Box Dimensions (LxWxH) 11.4 x 7.5 x 7.4"
    The user manual for the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC multimedia projectorss, where you can use our link to download the user manual for the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL.

    The user manual lists all of the functions of the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC NP-PA622U-13ZL 6200 Lumen WUXGA Professional NP-PA622U-13ZL. User manuals are also available on the NEC website under A/V Presentation - Projectors - Multimedia Projectors.
