User manual NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV

Operating instructions and pdf manual for use - NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV User manual, User manual NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV, NEC, P242W-BK-SV, 24, LED, Backlit, IPS, Monitor, P242W-BK-SV,

User manual for NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
NEC P242W-BK-SV 24
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV, which address similar problems with connecting and setting up Computer Monitors NEC.


User manual for the NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV

The user manual for the NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

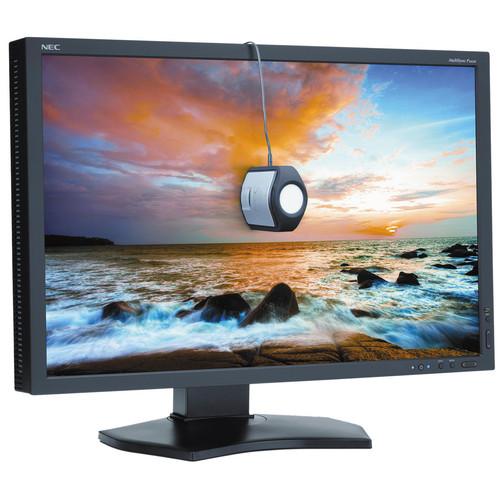

The P242W-BK-SV 24" LED Backlit IPS Monitor with SpectraView II from NEC is an LED backlit IPS (in-plane switching) monitor featuring a high definition resolution of 1920 x 1200 for enhanced picture quality along with an 8ms response time ensuring reduced lag and blur when viewing movies and videos. To further enhance picture quality, you benefit from a 1,000:1 contrast ratio and up to 16.7 million displayable colors.

This VESA compatible monitor can easily be mounted to the wall allowing you to take full advantage of the 178° horizontal and vertical viewing angles. Once mounted, you can easily plug this monitor into a variety of devices with a variety of inputs including DisplayPort, DVI-D, HDMI and VGA ports. This IPS monitor also comes equipped with SpectraView II, an advanced colorimeter based on the X-rite i1 Display Pro, delivering superlative color calibration tools to further enhance the color quality provided by this NEC display.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC P242W-BK-SV 24Download user manual for NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV
(PDF file, 4.02 MB)
Additional parameters of the NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV:
Specifications
    Display
    Panel Technology IPS
    Viewable Image Size 24.1" / 61.2 cm
    Aspect Ratio 16:10
    Resolution 1920 x 1200
    Pixel Pitch 0.27mm
    Pixels Per Inch 93@ native resolution
    Backlight Type W-LED
    Brightness 350cd/m²
    Contrast Ratio 1,000:1
    Viewing Angle Horizontal: 178°
    Vertical: 178°
    (89U/89D/89L/89R) @ CR>10
    Response Time 8ms
    Lookup Table 14-bit (3D)
    Displayable Colors 16.7 million out of 1.05 billion
    Synchronization Range
    Horizontal 31.5 kHz-93.8 kHz and 118.4 kHz / 30-135 kHz (analog/digital)
    Vertical 50-85 Hz
    Input Signal
    Video Analog RGB 0.7 Vp-p/75 Ohms
    Sync Separate Sync: TTL Level (Positive/Negative)
    Composite Sync: TTL Level (Positive/Negative)
    Inputs
    Analog VGA 15-pin D-sub
    Digital HDMI, DVI-D, DisplayPort
    USB USB hub (2 up/ 3 down) with DisplaySync Pro
    Power
    Power Consumption Power Savings Mode: 0.2W
    Other Specifications
    VESA Compatibility 100 x 100 mm
    Environmental Conditions Operating Temperature: 41 to 95°F / 5 to 35°C
    Operating Humidity: 20 to 80%
    Operating Altitude: 16404 ft / 5000 m
    Storage Temperature: 14 to 140°F / -10 to 60°C
    Storage Humidity: 10 to 85%
    Storage Altitude: 40,000 ft / 12,192 m
    Environmental Compliance ENERGY STAR 6.0
    Dimensions (WxHxD) With Stand: 21.9 x 14.9-20.8 x 9" / 556.3 x 378.5-528.3 x 228.6 mm
    Without Stand: 21.9 x 14.3 x 3.3" / 556.3 x 363.2 x 83.8 mm
    Weight With Stand: 22.5 lb / 10.2 kg
    Without Stand: 15.0 lb / 6.8 kg
    Packaging Info
    Package Weight 32.0 lb
    Box Dimensions (LxWxH) 25.7 x 20.0 x 12.5"
    Picture by Picture
    Picture by Picture
    How to Load an ICC Profile
    IPS Panel
    How to Use the DisplaySyncPro KVM
    How to Calibrate with SpectraView
    DisplaySync Pro
    Auto Image Rotation
    The user manual for the NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV.

    The user manual lists all of the functions of the NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC P242W-BK-SV 24" LED Backlit IPS Monitor P242W-BK-SV. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
