User manual NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV

Operating instructions and pdf manual for use - NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV User manual, User manual NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV, NEC, PA242W-BK-SV, 24, Professional, Wide, Gamut, PA242W-B


User manual for NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
NEC PA242W-BK-SV 24
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV

The user manual for the NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

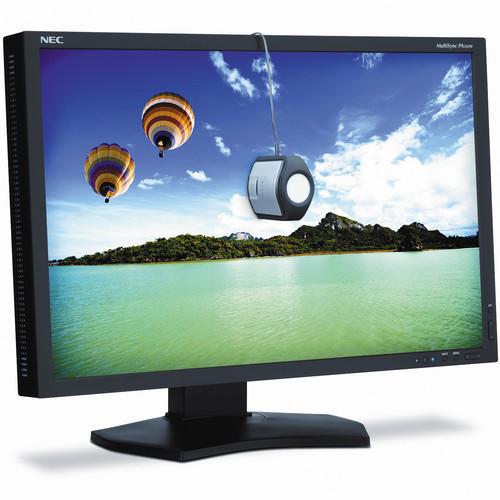

The PA242W-BK-SV 24" Professional Wide Gamut LED Desktop Monitor from NEC is a full featured IPS monitor designed to provide accurate color representation with 100% coverage of sRGB color space, 99.3% coverage of Adobe RGB color space and 94.8% coverage of the NTSC color space.

This enhanced color matching capability is accompanied by a 1920 x 1200 resolution, an 8ms response time and 1,000:1 contrast ratio. The enhanced response time ensures you see reduced blur when viewing videos and movies while the improved contrast ratio provides darker dark and brighter light colors for a more dynamic picture quality. Additionally, the PA242W monitor supports both 10-bit and 8-bit color depths along with a 14-bit lookup table for a large palette of displayable colors.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC PA242W-BK-SV 24Download user manual for NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV
(PDF file, 5.33 MB)
Additional parameters of the NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV:
Display
Panel Technology AH-IPS
Viewable Image Size 24.1" / 61.21 cm
Aspect Ratio 16:10
Resolution 1920 x 1200
Inputs DisplayPort, DVI-D, HDMI, VGA, USB hub (2 up/ 3 down) with DisplaySync Pro
Pixel Pitch 0.27 mm
Pixels Per Inch 93@ native resolution
Backlight Type GB-R LED
Brightness 340cd/m²
Contrast Ratio 1,000:1 (typical)
Viewing Angles Horizontal: 178°
Vertical: 178°
Response Time 8 ms
Color Gamut Adobe RGB Coverage/Size: 99.3% / 108.6%
NTSC Coverage/Size: 94.8% / 103.7%
sRGB Coverage/Size: 100% / 146.4%
Lookup Table 14-bit (3D)
Displayable Colors 1.07 billion out of 4.3 trillion (10 bit DisplayPort or HDMI)
16.7 million out of 1.05 billion (8-bit)
Synchronization Range
Horizontal 31.5 - 93.8 KHz & 118.4 KHz / 31.5 - 91.1 KHz & 118.4 KHz
Vertical 50 - 85 Hz
Input Signal
Video Analog RGB 0.7 Vp-p/75 Ohms
Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
Other Specifications
Power Consumption On: 56 W
Power Savings Mode: 0.2 W
VESA Compatibility 100 x 100 mm
Operating Temperature 41 to 95°F / 5 to 35°C
Operating Humidity 20 to 80%
Operating Altitude 6,562 ft / 2,000 m
Storage Temperature 14 to 140°F / -10 to 60°C
Storage Humidity 10 to 85%
Storage Altitude 40,000 ft / 12,192 m
Dimensions (WxHxD) With Stand: 21.9 x 14.9-20.8 x 9" / 556.3 x 378.5-528.3 x 228.6 mm
Without Stand: 21.9 x 14.3 x 3.3" / 556.3 x 363.2 x 83.8 mm
Weight With Stand: 23.4 lb / 10.6 kg
Without Stand: 16.3 lb / 7.4 kg
Packaging Info
Package Weight 32.5 lb
Box Dimensions (LxWxH) 25.5 x 19.5 x 12.5"
The user manual for the NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV.

The user manual lists all of the functions of the NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC PA242W-BK-SV 24" Professional Wide Gamut PA242W-BK-SV. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
