User manual for the NEC PA272W 27" LED Backlit Wide Gamut LCD Desktop PA272W
The user manual for the NEC PA272W 27" LED Backlit Wide Gamut LCD Desktop PA272W provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

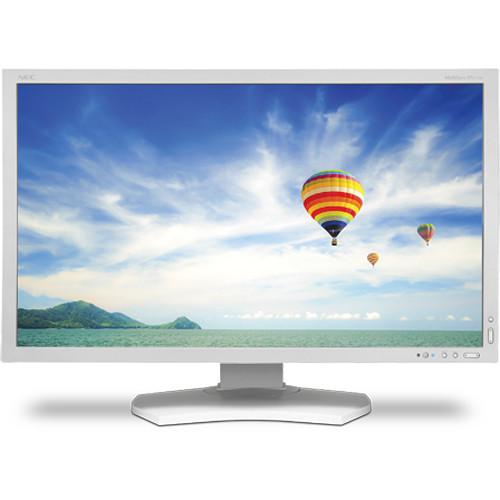

The PA272W 27" LED Backlit Wide Gamut LCD Desktop Display (White) from NEC features enhanced color accuracy covering 99.3% of the AdobeRGB color space, 94.8% of the NTSC color space and 146.4% of the sRGB color space. With a variety of input connectors including DisplayPort, Mini DisplayPort, HDMI, and DVI-D Dual-Link inputs you can plug this monitor into a variety of computers. You can also connect USB-compatible peripheral devices to either of the two upstream or three downstream USB ports.
Once connected, this monitor supports resolutions up to 2560 x 1440 with a 16:9 aspect ratio and 6 ms response time. The enhanced resolution and fast response time support enhanced picture quality with reduced lag when viewing fast-moving videos. This VESA-compatible monitor can be mounted to the wall as it supports 100 x 100mm and 100 x 200mm configurations. Whether mounted to the wall or placed on the desktop stand, this monitor can be viewed from a variety of angles as it supports 178° horizontal and vertical viewing angles.
|
If you own a NEC computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the NEC PA272W 27" LED Backlit Wide Gamut LCD Desktop PA272W in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the NEC PA272W 27" LED Backlit Wide Gamut LCD Desktop PA272W:
| Panel Technology | AH-IPS | | Viewable Image Size | 27" / 69 cm | | Aspect Ratio | 16:9 | | Native Resolution | 2560 x 1440 | | Pixel Pitch | 0.23 mm | | Pixels Per Inch | 109@ native resolution | | Backlight Type | GB-R LED | | PWM Frequency | 44 kHz | | Brightness | 340 cd/m² (typical) | | Contrast Ratio | 1,000:1 (typical) | | Viewing Angle | Horizontal: 178°
Vertical: 178°
(89U/89D/89L/89R) @ CR>10 | | Response Time | 6 ms | | Color Gamut | Adobe RGB Coverage/Size: 99.3% / 108.6%
NTSC Coverage/Size: 94.8% / 103.7%
sRGB Coverage/Size: 146.4% / 100% | | Lookup Table | 14-bit (3D) | | Displayable Colors | 1.07 billion out of 4.3 trillion | | Synchronization Range | Horizontal: 31.5-96.5 kHz (Digital only)
Vertical: 50-85 Hz | | Input Connectors | DisplayPort, Mini DisplayPort, HDMI, DVI-D Dual Link, USB hub (2 up/ 3 down) with DisplaySync Pro | | Power Consumption | On: 73 W
Power Savings Mode: 1 W | | VESA Compatibility | 100 x 100 mm, 200 x 100 mm | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | Operating Altitude | 16,404 ft / 5,000 m | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Storage Humidity | 10 to 85% | | Storage Altitude | 40,000 ft / 12,192 m | | Environmental Compliance | TCO 5.0, RoHS | | Dimensions (WxHxD) | With Stand: 25.2 x 15.6-21.5 x 9.3" / 640.4 x 396.2-546.2 x 235.5 mm
Without Stand: 25.2 x 14.9 x 3.3" / 640.4 x 378.6 x 85.0 mm | | Weight | With Stand: 28.4 lb / 12.9 kg
Without Stand: 19.6 lb / 8.9 kg | | Package Weight | 39.45 lb | | Box Dimensions (LxWxH) | 30.0 x 21.0 x 13.0" | |
The user manual for the NEC PA272W 27" LED Backlit Wide Gamut LCD Desktop PA272W can be downloaded in .pdf
format if it did not come with your new computer monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other NEC users keep a unique electronic library
for NEC computer monitorss,
where you can use our link to download the user manual for the NEC PA272W 27" LED Backlit Wide Gamut LCD Desktop PA272W.
The user manual lists all of the functions of the NEC PA272W 27" LED Backlit Wide Gamut LCD Desktop PA272W,
all the basic and advanced features and tells you how to use the computer monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from NEC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the NEC PA272W 27" LED Backlit Wide Gamut LCD Desktop PA272W. User manuals are also
available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
