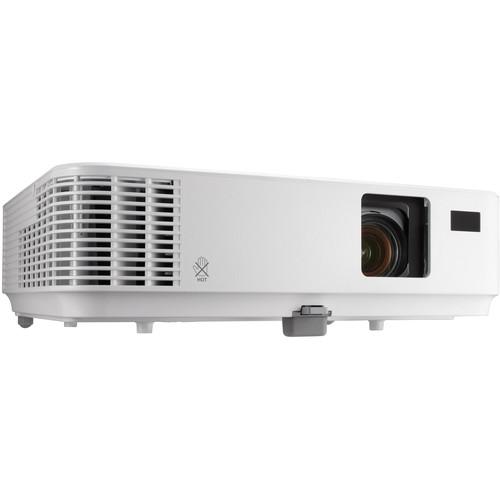

User manual NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H

Operating instructions and pdf manual for use - NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H User manual, User manual NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H, NEC, V, Series, NP-V302H, 3000-Lumen, Full, HD


User manual for NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H, which address similar problems with connecting and setting up Multimedia Projectors NEC.



User manual for the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H

The user manual for the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Display detailed images with the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector. It features 3000 lumens of brightness and an 8000:1 contrast ratio. Additionally, this projector sports a Full HD 1920 x 1080 native resolution for viewing detailed content. The NP-V302H is powered by a DLP display system, and the lamp features a long life of up to 6000 hours in ECO Mode. You can use the NP-V302H to project up to a 300" diagonal screen size, and it features a 1.50 to 1.80:1 throw ratio.

With composite video, VGA, and dual HDMI inputs, this projector is well-equipped for external video sources. As an added convenience, a VGA cable is included. It also support MHL connectivity via HDMI, allowing you to mirror and charge compatible mobile devices. Other features include a 0.35W standby power consumption level and a 1.2x zoom with ten-step image magnification.
If you own a NEC multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302HDownload user manual for NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H
(PDF file, 8.4 MB)
Additional parameters of the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H:
Specifications
    Image Display
    Display System 1-Chip 0.65" / 1.65 cm DLP
    Native Resolution Full HD - 1920 x 1080
    Supported Resolutions VGA
    SVGA
    XGA
    SXGA
    SXGA+
    UXGA
    Full HD 1080p
    Format NTSC
    NTSC 4.43
    PAL
    PAL 60, M, N
    SECAM
    HDTV Compatibility 480i
    480p
    576i
    576p
    720p
    1080i
    1080p
    Brightness Normal Mode: 3000 Lumens
    Eco Mode: 2400 Lumens
    Projection Angle 11.7° (Tele)
    14.0° (Wide)
    Contrast Ratio 8000:1
    DLP Link 3D Yes
    Scan Horizontal: 15 - 100 kHz or 24 kHz
    Vertical: 50 - 120 Hz or 24 Hz
    Lens
    Focus Manual
    Lens F 2.55 - 2.85 (f = 22.41 - 26.82 mm)
    Zoom Manual: 1.2x
    Throw Distance 4.9 - 32.8' (1.5 - 10.0 m)
    Throw Ratio 1.50 - 1.80:1
    Projection Size 40 - 300" / 101.60 - 762.00 cm
    Features
    Keystone Correction Manual: Yes, Horizontal: ± 30°
    Manual: Yes, Vertical: ± 30°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-in Speaker Yes, 8 W (Mono)
    Closed Captioning Yes
    Input/Output Connectors
    Inputs/Outputs 1x Mini-USB Service
    1x Ethernet Control
    1x HDMI Audio/Video (Input)
    1x HDMI with MHL Support Audio/Video (Input)
    1x 15-pin VGA Video (Input)
    1x 15-pin VGA Video (Output)
    1x RS-232C Control
    1x RCA Composite Video (Input)
    1x RCA Stereo (L/R) Audio (Input)
    1x 1/8" (3.5 mm) Mini Audio (Input)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    Wireless LAN None
    Sync Compatibility Separate Sync
    Composite Sync
    Sync on Green
    General
    Replacement Lamp NP35LP
    Watts Eco Mode: 170 W
    Normal Mode: 218 W
    Life Eco Mode: 6000 Hours
    Normal Mode: 3500 Hours
    Fan Noise Normal Mode: 35 dB
    Eco Mode: 32 dB
    Remote Control Yes
    Security Cable Lock Slot
    System Requirements Windows

    Mac
    Languages Not Specified By Manufacturer
    Power Requirements 100-240 VAC, 50/60 Hz
    Input Current 2.8 A / 1.2 A
    Power Consumption Normal Mode: 280 W
    Eco Mode: 217 W
    Standby Mode: 3.0 W
    Standby Mode (Eco): 0.5 W
    Temperature Operating
    41 to 104°F (5 to 40°C)
    Humidity: 0 - 80%
    Storage
    14 to 122°F (-10 to 50°C)
    Humidity: 0 - 80%
    Dimensions (WxHxD) 12.8 x 4.0 x 9.8" / 324.0 x 101.0 x 250.0 mm
    Weight 6.4 lb / 2.90 kg
    Packaging Info
    Package Weight 10.65 lb
    Box Dimensions (LxWxH) 19.9 x 12.8 x 8.4"
    The user manual for the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC multimedia projectorss, where you can use our link to download the user manual for the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H.

    The user manual lists all of the functions of the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC V Series NP-V302H 3000-Lumen Full HD DLP Projector NP-V302H. User manuals are also available on the NEC website under A/V Presentation - Projectors - Multimedia Projectors.
