User manual for Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Nektar Technology
- Basic description and contents of package
- Product classification: Pro Audio - Computer Audio - Keyboard Controllers
- Safety instructions
- Startup and operation of the keyboard controllers
- Tips for setting up your Nektar Technology
- Settings and expert assistance
- Contact Nektar Technology service
- Troubleshooting
- Warranty information
- Price: 159 USD

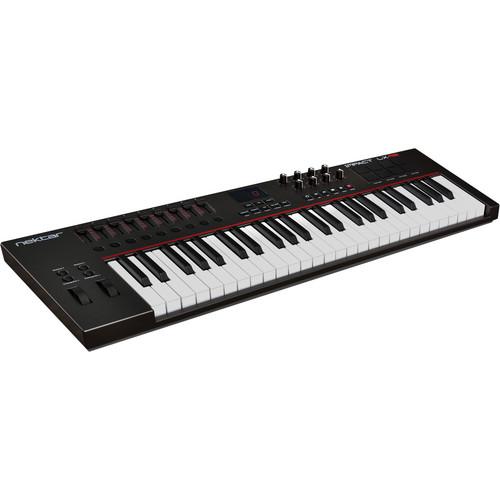

Click to enlarge image
|
We recommend checking out our discussion threads on the Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49,
which address similar problems with connecting and setting up Keyboard Controllers Nektar Technology.
|
User manual for the Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49
The user manual for the Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49 provides
necessary instructions for the proper use of the product Pro Audio - Computer Audio - Keyboard Controllers.
The Impact LX49 from Nektar is a 49 key, velocity-sensitive USB controller keyboard that provides an affordable yet fully featured solution for music makers. A major feature is the intelligent mapping, where the keyboard already comes pre-mapped and configured for most major DAWs.
The full-size, piano-style keys respond with a medium tension and are covered to protect against dirt and dust. Four velocity curves are available along with three fixed velocity levels for instances where consistent output is required. Octave and transpose buttons as well as pitch bend and modulation wheels are available.
Eight velocity sensitive pads are perfect for groove and beat creation. Each pad can be assigned any MIDI note number or MIDI CC message for use as MIDI trigger or toggle buttons. A "Pad Learn" feature allows you to select a pad, play the note or sound you want on the keyboard and assignment is done. Assignments are stored over power cycling and four map locations will store settings for recall.
Multiple modes for navigation are available allowing the user to switch between mixer, instrument, and preset views. Five preset memory locations are provided for storing custom setups. Further navigation options include track change, patch change, and a plug-in button that opens or closes the currently controlled plug-in window on the DAW's display.
In mixer mode the first eight faders are assigned to control eight channels of a DAW's mixer with the ability to shift among groups of eight channels. The ninth fader is always assigned to the currently selected channel. The buttons under the faders follow the channel assignment and can control mute or solo. Pan functionality is handled by the eight pots.
The instrument preset assigns all controls to instrument parameters once an instrument track is selected in a DAW. A typical control layout places amplifier and filter envelopes on the faders and the parameters that have the biggest impact on the sound, on the pots. This means you often have filter cutoff and resonance on pots 1 and 2 for example. A "grab" mode allows for custom control setups.
The included entry-level Studio One Artist DAW software is easy to use and offers unlimited tracks and plug-in instantiations, extensive use of drag-and-drop, in-depth editing features, and twenty native effects.
|
If you own a Nektar Technology keyboard controllers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49:
| Keyboard | 49 velocity-sensitive synth-action keys | | Controllers | 1 x Modulation wheel
1 x Pitch bend wheel
8 x Rotary controls
8 x Trigger pads
9 x 30 mm sliders
6 x Transport controls
12 x Function buttons
9 x Assignable buttons | | Connectors | 1 x USB type-B
1 x 1/4" TS sustain pedal (pedal not included) | | Power Requirements | USB bus | | System Requirements | Mac OS X and Windows XP or higher - class compliant, no driver needed
Mac OS X 10.7 or higher, Windows Vista, 7 and 8 or higher for DAW integration | | Dimensions (WxDxH) | 31.6 x 10.5 x 3" (803 x 267 x 76 mm) | | Weight | 7 lb (3.2 kg) | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 33.4 x 12.5 x 4.3" | |
The user manual for the Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49 can be downloaded in .pdf
format if it did not come with your new keyboard controllers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Nektar Technology users keep a unique electronic library
for Nektar Technology keyboard controllerss,
where you can use our link to download the user manual for the Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49.
The user manual lists all of the functions of the Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49,
all the basic and advanced features and tells you how to use the keyboard controllers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Nektar Technology service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Nektar Technology Impact LX49 - USB MIDI Controller IMPACT LX49. User manuals are also
available on the Nektar Technology website under Pro Audio - Computer Audio - Keyboard Controllers.
