User manual for the Netgear ProSafe GSM7248 48-Port Gigabit L2 GSM7248-200NAS
The user manual for the Netgear ProSafe GSM7248 48-Port Gigabit L2 GSM7248-200NAS provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

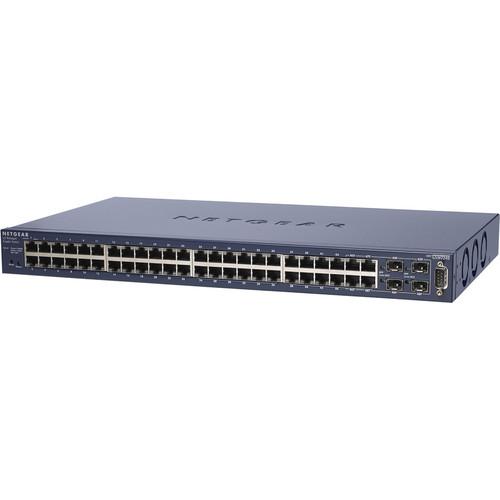

The ProSafe GSM7248 48-Port Gigabit L2 Managed Switch from Netgear delivers wirespeed Gigabit performance and a full set of Layer 2 management features, as well as static routing with unsurpassed affordability. This next-generation, high-speed switch delivers maximum throughput for high-performance workgroups at the edge of the network or as a backbone for fast Ethernet switches and high-speed servers in demanding small networks. The non-blocking design offers full Gigabit throughput simultaneously to all 48 10 / 100 / 1000 ports to ensure reliable performance. Flexible fiber connectivity is enabled through four combination small form-factor pluggable Gigabit interfaces. Layer 2 management functionality delivers reliability, control and availability.
|
If you own a Netgear network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Netgear ProSafe GSM7248 48-Port Gigabit L2 GSM7248-200NAS in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Netgear ProSafe GSM7248 48-Port Gigabit L2 GSM7248-200NAS:
| Product Type | Ethernet switch | | Expansion Slots | 4x SFP (mini-GBIC) | | Form Factor | Rack-mountable Desktop | | Number of Ports | 48 | | Interfaces/Ports | 48x RJ-45 10 / 100 / 1000 Base-T network LAN 1x RS-232 console management | | Standard Memory | 64 MB | | Forwarding/Filtering Rate | 71.4 Mpps | | Switching Throughput | 96 Gbps | | Flash Memory | 8 MB | | Layer Supported | 2 | | Network Technology | 10 / 100 / 1000 Base-T | | Manageable | Yes | | Gigabit Ethernet Port | Yes | | Physical Interfaces | RJ-45 connectors for 10BASE-T, 100BASE-TX and 1000BASE-T (auto uplink on all ports):48 ports Small form-factor pluggable modules for fiber Gigabit Ethernet interfaces:
4 slotsRS-232 console port | | Layer 2 Services | - IEEE 802.1Q static VLAN (1024)
- IEEE 802.1p class of service
- IEEE 802.1D spanning tree protocol
- IEEE 802.1v protocol VLAN & port VLAN and Mac-based VLAN
- Voice VLAN
- Guest VLAN
- IP subnet-based VLAN
- IEEE 802.1 Q-in-Q
- IEEE 802.1w rapid spanning tree
- IEEE 802.1s multiple spanning tree
- IEEE 802.3ad link aggregation
- IEEE 802.1x port access authentication
- IGMP v1, v2, v3 snooping support
- IGMP querier
- Static multicast filtering
- Ingress rate limit in 1 Kbps increments
- Weighted round robin queue technology
- MLD v1, v2 snooping
| | Layer 3 Services | | | Security | - Access control lists - MAC, IP, TCP
- ACLs: L2 / L3 / L4
- Network storm protection including broadcast multicast and unicast traffic
- Protected ports
- MAC filtering
- Private group
- CoS
- Diffserv QoS (RFC 2998)
- IEEE 802.1x port access authentication
- Port security
- DoS
- DHCP snooping
- IP source guard
- Dynamic ARP inspection
- RADIUS (RFC 2865)
- RADIUS accounting (RFC 2866)
- TACACS+
| | Switch Management Specifications | - SNMP v1, v2c, v3 with multiple IP addresses
- RFC 1157, 1902-1907
- RFC 768 UDP
- UDP relay
- RFC 854-859 telnet
- RFC 951 BOOTP
- RFC 1213 MIB II
- RFC 1757 RMON groups 1,2,3 and 9
- RFC 1215 SNMP traps
- RFC 1493 bridge MIB
- RFC 1643 ethernet interface MIB
- RFC 1534 DHCP and BOOTP interoperation
- RFC 2131, 2132 DHCP and BOOTP
- Private enterprise MIB
- Port mirroring support (many-to-one)
- DHCP / BOOTP relay-primary and backup (RFC 3046, option 82)
- RFC 2030 simple network time protocol
- DHCP server
- DHCP L2 relay
- IEEE 802.1AB Link layer discovery protocol
- ANSI / TIA-1057 LLDP media endpoinl discovery (LLDP-MED)
- DHCP relay (with backup servers)
- GARP / GVRP / GMRP
- SYSLOG
- TFTP, SFTP, HTTP, SCP or local USB flash firmware upgrade
- Port description
- RFC 1519 CIDR
- Proxy ARP
- DNS lookup
| | Single IP Address Management | Manage up to 48 fully managed switches Feature can be used with the following models: - FSM726E, FSM7226RS, FSM7250RS
- FSM7328S, FSM7352S, FSM7328PS, FSM7352PS
- GSM7224R, GSM7248R
- GSM7328S, GSM7328FS, GSM7352S
- FSM726v3
- GSM7224-200
- GSM7248-200
| | Performance Specifications | Forwarding modes: Store-and-forward
Bandwidth: 96 Gbps; 71.4 Mpps
Switch latency: 20 us for 64-byte frames (1 G to 1 G)
System memory: 128 MB
Packet buffer memory: max support 1.5 MB buffer memory
Code storage (flash): 32 MB
Address database size: 8 K media access control addresses
Number of VLANs: 1024 (1-4093)
Number of trunks: 64
Number of queues: 8
Number of static route: 32
Number of routed VLANs: 32
Number of ARP entries: 480
Number of ACL rules: 224
Jumbo frame support: up to 9 K packet size
Acoustic noise: 48.8 dB
Heat dissipation: 244.101 BTU / hr
Mean time between failures: 162, 303 hours (~19 years) | | User Interfaces | Command line interface via console port (5 sessions) Web-based management via embedded HTTP server protected with secure sockets layer (SSLv3) or Transport Layer Security (TLS v1) Telnet remote login (5 sessions) securable with Secure Shell (SSH v1.5, v2) | | LEDs | Per port: Speed, link, activity Per device: Power, fan, RPS status | | Network Standards Compatibility | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX, 100BASE-FX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3x flow control | | Environmental Specifications | Operating temperature: 32 to 131° F (0 to 55° C) Storage temperature: -4 to 158° F (-20 to 70° C) Operating humidity: 90% maximum relative humidity, non-condensing Storage humidity: 95% maximum relative humidity, non-condensing Operating altitude: 10,000 ft (3,000 m) maximum Storage altitude: 10,000 ft (3,000 m) maximum | | Electrical Specifications | Power consumption: 71.5 W maximum Redundant power supply input: 12 V | | Electromagnetic Emissions | CE mark EN 55022 Class A - emissions EN 55024 - immunity FCC part 15 Class A VCCI Class A C-Tick | | Electromagnetic Safety | CE mark EN 60950 - 1 UL / cUL 60950 - 1 | | Modules | ProSafe AGM731F 1000BASE - SX SFP GBIC ProSafe AGM732F 1000BASE - LX SFP GBIC ProSafe AGM733 1000BASE - ZX SFP GBIC 100FX SFP LC transceiver | | Physical Specifications | Dimensions (W x D x H): 17.3 x 8.1 x 1.6" (440 x 205 x 43 mm)
Weight: 9.13 lb (4.15 kg) | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 23.0 x 13.8 x 3.5" | |
