User manual for the Neumann KH 120-A Studio Monitor KH 120 A

The user manual for the Neumann KH 120-A Studio Monitor KH 120 A provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

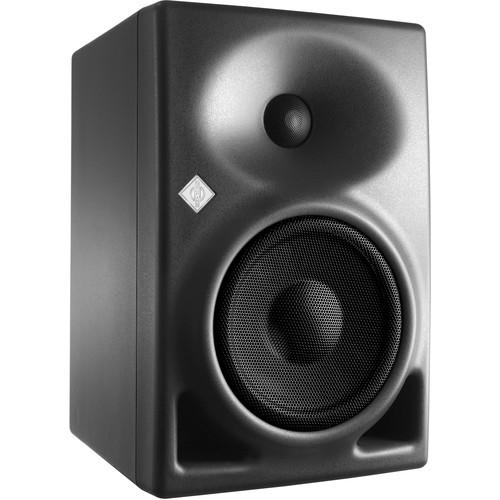

The Neumann KH 120-A Studio Monitor combines a 1" titanium fabric dome tweeter powered by 50 W RMS (80 W peak) of analog amplification with a 5.25" long throw composite sandwich cone bass driver powered by 50 W RMS 80 W peak) analog amplification with dual front panel bass ports. The two speaker drivers are mounted in an elliptical mathematically modeled dispersion waveguide for smoother off-axis response and a more forgiving sound signature in different acoustical environments.

The front panel is made from one piece without discontinuities to reduce diffraction with protective metal grills and the cabinet is made of magnetically shielded aluminum to reduce resonances, improve heat dissipation, and extend the operating lifetime of the unit. The monitor is suitable for professional tracking, mixing, and mastering applications in broadcast, project, and post-production studios.

The system delivers a free field frequency response of 52 to 21,000 Hz with 4-position bass, low-mid, and treble acoustical controls for tailoring the response to different rooms and an input gain control from 0 to -15 dB. The front panel Neumann logo functions as an LED indicator for power and clip/limiting but can also be dimmed for light applications and for use when placed behind screens. A variety of wall, ceiling, truss, subwoofer, stand, and surface mounting options are available through a range of accessories (sold separately).
If you own a Neumann studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Neumann KH 120-A Studio Monitor KH 120 A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Neumann KH 120-A Studio Monitor KH 120 A:
Acoustics
Frequency Response Free Field: 52 to 21,000 Hz ±3 dB
Pass Band Free Field: 54 to 20,000 Hz ±2 dB
Self Noise < 20 dB(A) at 10 cm
Total Harmonic Distortion (THD) > 100 Hz (<0.5% at 96 dB SPL at 1 m)
Max SPL Level Full Space: 105.1 dB
Half Space at 3% THD at 1 M: 111.1 dB

Short Term SPL with IEC-Weighted Noise: 107 dB(C)
With Music Material at 2.3 m (pair): 97 dB(C) (full range), 104 dB(C) (with subwoofer)

Long Term SPL with Pink Noise at 2.3 M, In Typical Listening Conditions (single/pair): 88/93 dB(C) SPL (full range, 89/94 dB(C) SPL (with subwoofer)
Bass Capability 104.8 dB
Electronics
Amplifier Woofer: 50 W (80 W peak)
Tweeter: 50 W (80 W peak)
Controller Design Analog, active
Crossover Frequency 2,000 Hz
Crossover Slope 24 dB/octave, 4th order
Equalization Bass: 0, -2.5, -5. -7.5 dB
Mid: 0, -1.5, -3, -4.5 dB
High: +1, 0, -1, -2 dB
Protection Circuits Limiter, low, high
Infrasonic filter protection 30 Hz; 6 dB/octave
Impedance 10 k Ohms in position 94/108 dB SPL at 1 m
20 k Ohms in position 100/114 dB SPL at 1 m
Input Gain Control 0 to -15 dB
Output Level Control 94, 100, 108, 114 dB
CMRR >56 dB at 15,000 Hz
Maximum Input Level 24 dBu
Indicators Power On: Neumann logo "white"
Limit/Clip: Neumann logo "red"
Power Supply 100 to 240 V; 50/60 Hz
Power Consumption Idle: 20 W
Full Output AC: 200 W
Mechanical
Cabinet Painted aluminum, anthracite (RAL 7021)
Powder-coated aluminum, white (RAL 9016)
Operating Conditions +50 to +104° F (+10 to +40° C)
<90% relative humidity, non-condensing
Drivers Magnetically Shielded
Woofer: 5.25" (130 mm)
Tweeter: 1.00" (25.0 mm)
Mounting 2x M8 on rear panel
Volume Internal: 6.5 liters
External: 9.7 liters
Dimensions (H x W x D) 10.875 x 7.125 x 8.625 (277.0 x 182.0 x 220.0 mm)
Weight 14.1 lb (6.40 kg)
Packaging Info
Package Weight 18.05 lb
Box Dimensions (LxWxH) 16.2 x 14.2 x 11.2"
The user manual for the Neumann KH 120-A Studio Monitor KH 120 A can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Neumann users keep a unique electronic library for Neumann studio monitorss, where you can use our link to download the user manual for the Neumann KH 120-A Studio Monitor KH 120 A.
