User manual for the Neumann O 410 Tri-Amped Active Studio Monitor O 410
The user manual for the Neumann O 410 Tri-Amped Active Studio Monitor O 410 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

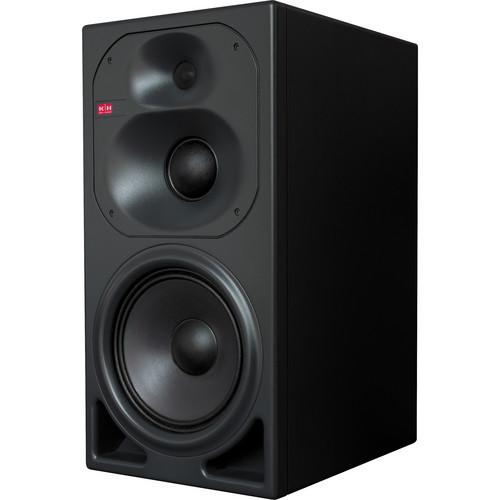

The Neumann O 410 Tri-Amped Active Studio Monitor is a three-way studio monitor that features Neumann's proprietary Mathematically Modeled Dispersion, or MMD, Waveguide, which controls wave dispersion. The Waveguide was first designed mathematically, then physically built and tested under anechoic conditions to verify theoretical performance. By controlling the directivity of the waves, the O 410's Waveguard decreases early reflections and widens the useable listening area. This widens what many audio engineers refer to as the sweet spot, or place in front of your monitors where the speaker output is most optimal. The Waveguard houses both the midrange and treble drivers, and can be rotated to allow for horizontal or vertical mounting of the O 410.
Designed to be able to compensate for different environments, the O 410 features bass, mid, and treble control knobs as well as a low end parametric EQ to tweak 20Hz to 200Hz. These EQ options allow you to tune the speakers to compensate for the acoustics of your room.
The O 410 houses a one-inch titanium/fabric dome tweeter, a three-inch soft dome midrange driver, and a ten inch woofer.
|
If you own a Neumann studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Neumann O 410 Tri-Amped Active Studio Monitor O 410 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Neumann O 410 Tri-Amped Active Studio Monitor O 410:
| Frequency Response | -3 dB free field: 30 Hz to 24 kHz, ± 3 dB
Pass band free field: 32 Hz to 20 kHz, ± 2 dB | | Noise Level | Self generated @ 10 cm: < 25 dBA | | Total Harmonic Distortion | < 0.5% at 1 m: 100 Hz @ 95 dB SPL | | Maximum SPL | Full space calculated in half space @ 3% THD @ 1m:
115.8 / 121.8 dB SPL
(averaged between 100 Hz and 6 kHz)
Short term SPL with IEC-weighted noise (IEC 286-5) @ 1 m:
112 dB(C) SPL
Short term SPL with music material at 2.3 m (pair):
102 dB(C) SPL (full range)
110 dB(C) SPL (with subwoofer)
Maximum long term SPL with pink noise at 2.3 m:
86 / 92 dB(C) SPL (full range)
98 / 104 dB(C) SPL (with subwoofer) | | Bass Capability | Maximum SPL in 1/2 space @ 3% THD @ 1m:
111.9 dB SPL (averaged between 50 Hz and 100 Hz) | | Continuous Power Output | Woofer amplifier: 340 W (THD < 0.1%)
Midrange amplifier: 160 W (THD < 0.1%)
Tweeter amplifier: 180 W (THD < 0.1%) | | Peak Power Output | Woofer amplifier: 400 W
Midrange amplifier: 190 W
Tweeter amplifier: 210 W | | Controller | Analog, active | | Crossover | Frequency: 600 Hz / 2.0 kHz
Slope: 24 dB/octave | | Equalization | Bass: 0; -2.5; -5; -7.5 dB
Mid: 0; -1,5; -3; -4,5 dB
High: 1; 0; -1; -2 dB | | Parametric Equalizer | Gain: 4 to -12 dB
Frequency: 20 to 200 Hz
Q: 1 to 8 | | Protection Circuits | Limiter: low, mid, high | | Filter | Infrasonic: 15 Hz, 12 dB/octave | | Inputs | 1x XLR | | Input Impedance | Electrical symmetric: XLR, 13 kΩ
Balanced floating: R, 4.7 kΩ | | Input Sensitivity | -8 dBu, +6 dBu | | Maximum Input Level | 19 dBu (6.9 Vrms) | | Gain Control | -9 to 6 dB | | Common Mode Rejection Ratio | > 60 dB @ 15 kHz | | Indicators | Power on: logo "red"
Limit/clip: protect | | Mains | 100, 120, 230 V AC switchable | | Power Consumption | Idle: 36 VA
Full output: 1.3 VA | | Cabinet | Surface: painted
Color: anthracite (RAL 7021), silver (RAL 9006)
Baffle cover: Optional metal grille, removable | | Drivers | Magnetically shielded
Woofer: 10" (265 mm)
Midrange: 3" (76 mm)
Tweeter: 1" (25 mm) | | Mounting Configuration | 8x M5 on rear | | Volume | Net internal: 1,420 oz (42 l) | | Operational Temperature | 50 to 104°F (10 to 40°C) | | Dimensions (HxWxD) | 25 x 13 x 18" (65 x 33 x 44 cm) | | Weight | 79 lb (36 kg) | |
